AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )AXVA70,GSV70..LHD

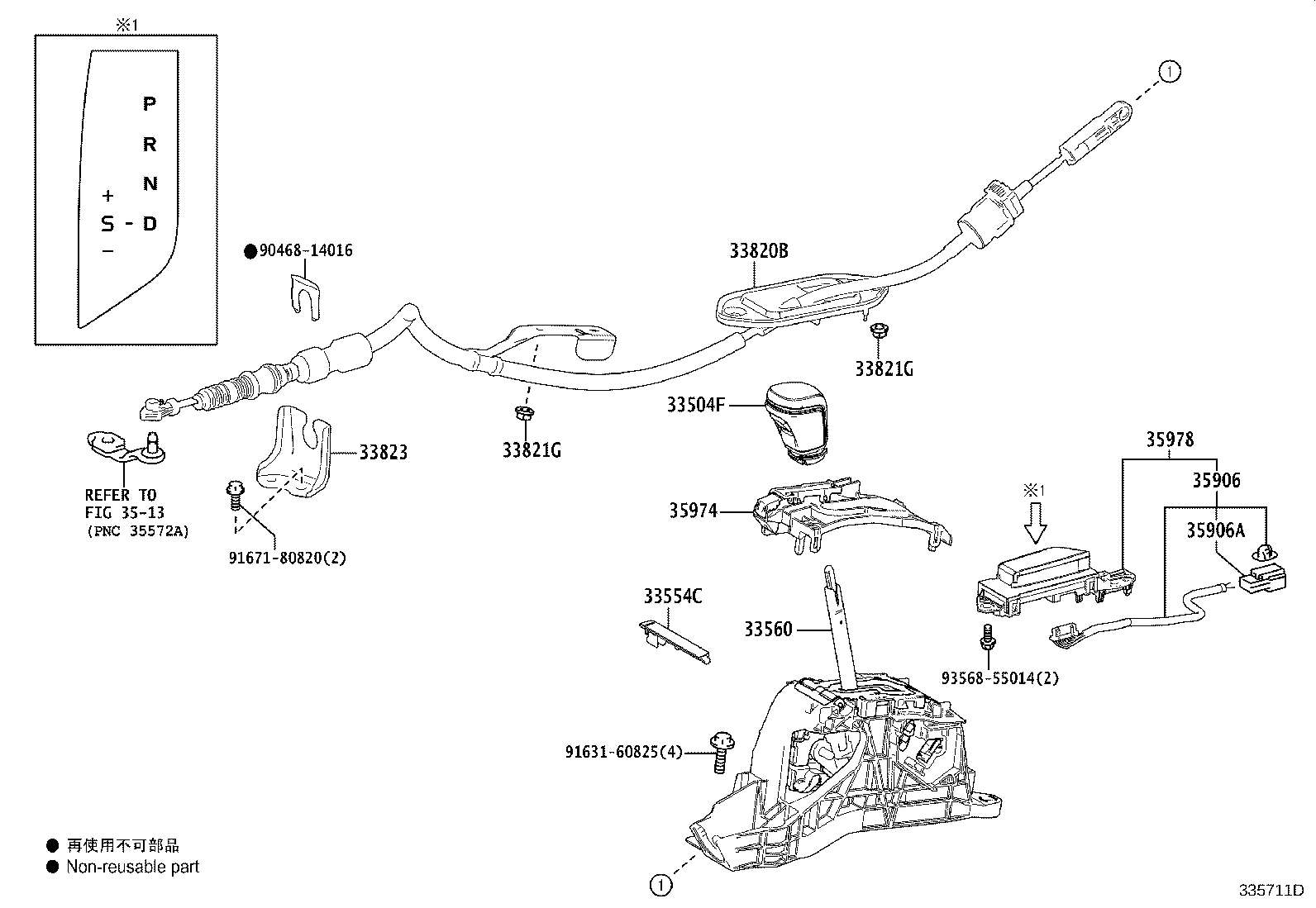

Click highlighted areas on diagram

diagram 33504F 33554C 33560 33820B 33821G 33821G 33823 3513 35906 35906A 35974 35978 9046814016 9163160825 9167180820 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-33180C0

ASV70,AXVA70,AXVH71,GSV70..EUR

BLACK,TRIM1#,2#,4#

 1
33504-12770C0

AXVA70..S

BLACK,TRIM2#

 1
33504-12770C0

ASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR

BLACK,TRIM2#,4#

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-33130

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-33380

AXVA70,AXVH7#,GSV70..LHD..EUR

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-33400

AXVA70,GSV70..EUR

 1
33820-33470

AXVA70,GSV70..EUR

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-06274

ASV70,AXVA70,AXVH7#,GSV70..EUR

 4
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-06274

ASV70,AXVA70,AXVH7#,GSV70..EUR

 4
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-33070

AXVA70,GSV70..EUR

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-33180

ASV70,AXVA70,GSV70..LHD..EUR

 1
35906A - HOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
90980-12367

ASV70,AXVA70,GSV70..EUR

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-33240

ASV70,AXVA70,AXVH7#,GSV70..LHD..EUR

 1
35978 - INDICATOR, SHIFT POSITION
35978-33180

ASV70,AXVA70,GSV70..LHD..EUR

 1
Common parts
90468-14016
91631-60825
91671-80820
93568-55014
Linked diagrams
3513
