Toyota Camry/hybrid AXVA70 EXHAUST GAS RECIRCULATION SYSTEM - JDM Part Detective

Home Blog About Contact Search

Manufacturers Home
Toyota
EU
CAMRY/HYBRID
AXVA70L-AEZNBW (2017)
2501 - EXHAUST GAS RECIRCULATION SYSTEM

AXVA70L-AEZNBW (2017)

Toyota Camry/Hybrid

Production Sep 2017 - Feb 2021

Engine A25AFKS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1709-2008)A25AFKS

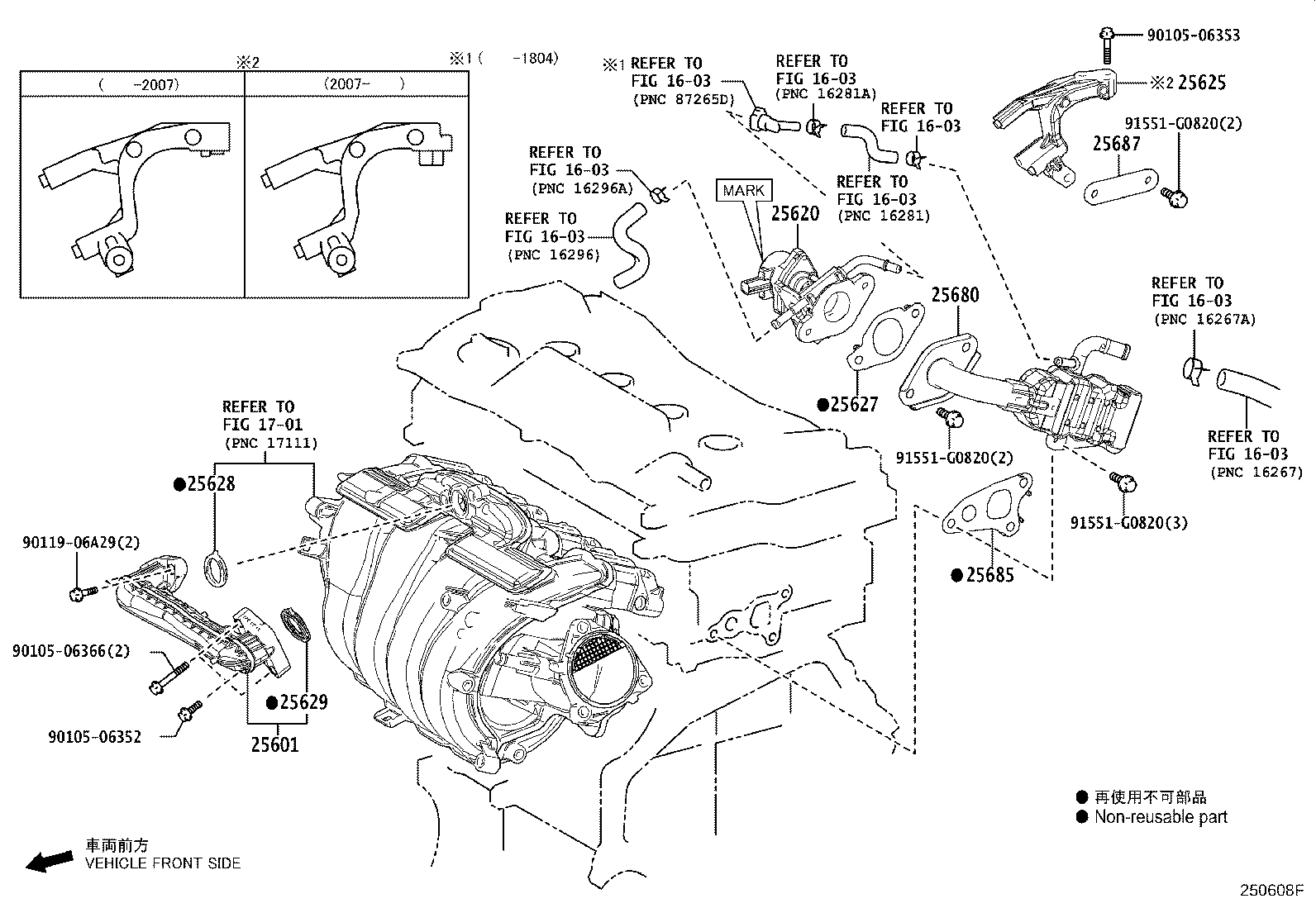

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-25010	A25#..AXVA70,AXVH71	09/2017 - 10/2017	1
25601-25011	A25#..AXVA70,AXVH71	11/2017 - 08/2020	1
25601-25030	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25620 - VALVE ASSY, EGR
25620-25040	A25#..AXVA70,AXVH71 MARK=25620 25040	04/2018 - 08/2020	1
25620-25020	A25#..AXVA70,AXVH71 MARK=25620 25020	09/2017 - 04/2018	1
25620-24050	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25625 - BRACKET, EGR VALVE
25625-25010	A25#..AXVA70,AXVH71	09/2017 - 07/2020	1
25625-25030	A25#..AXVA70,AXVH71	07/2020 - 08/2020	1
25627 - GASKET, EGR VALVE
25627-24010	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25627-25010	A25#..AXVA70,AXVH71	09/2017 - 08/2020	1
25628 - GASKET, EGR INLET
25628-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
25680 - COOLER ASSY, EGR
25680-25060	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25680-25010	A25AFKS..AXVA70	09/2017 - 08/2020	1
25685 - GASKET, EGR COOLER, NO.1
25685-25011	A25#..AXVA70,AXVH7#	10/2017 - 02/2021	1
25685-25010	A25#..AXVA70,AXVH71	09/2017 - 10/2017	1
25687 - BRACKET, EGR COOLER, NO.1
25687-25010	A25AFKS..AXVA70	09/2017 - 08/2020	1
Common parts
90105-06352
90105-06353
90105-06366
90119-06A29
91551-G0820
Linked diagrams
1603
1701

(2008- )A25#

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-25010	A25#..AXVA70,AXVH71	09/2017 - 10/2017	1
25601-25011	A25#..AXVA70,AXVH71	11/2017 - 08/2020	1
25601-25030	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25620 - VALVE ASSY, EGR
25620-25040	A25#..AXVA70,AXVH71 MARK=25620 25040	04/2018 - 08/2020	1
25620-25020	A25#..AXVA70,AXVH71 MARK=25620 25020	09/2017 - 04/2018	1
25620-24050	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25627 - GASKET, EGR VALVE
25627-24010	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25627-25010	A25#..AXVA70,AXVH71	09/2017 - 08/2020	1
25628 - GASKET, EGR INLET
25628-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
25629 - GASKET, EGR VALVE ADAPTER
25629-25010	A25#..AXVA70,AXVH7#	09/2017 - 02/2021	1
25680 - COOLER ASSY, EGR
25680-25060	A25#..AXVA70,AXVH7#	08/2020 - 02/2021	1
25680-25010	A25AFKS..AXVA70	09/2017 - 08/2020	1
25685 - GASKET, EGR COOLER, NO.1
25685-25011	A25#..AXVA70,AXVH7#	10/2017 - 02/2021	1
25685-25010	A25#..AXVA70,AXVH71	09/2017 - 10/2017	1
Common parts
90105-06353
90119-06A29
90126-08050
90253-09003
91551-G0820
92122-80816
94151-20841
Linked diagrams
1603
1701
