AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )A25AFKS..EUR

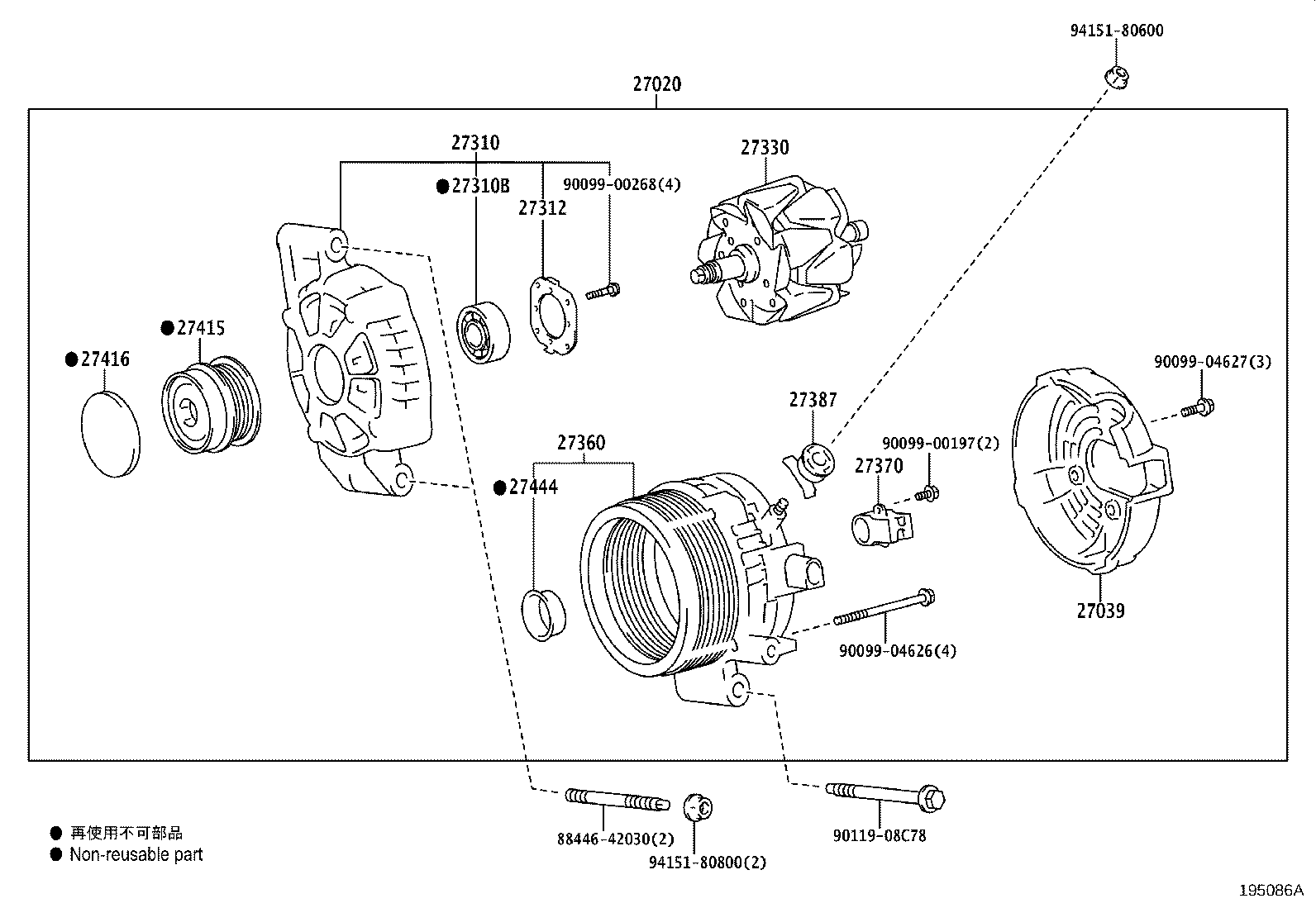

Click highlighted areas on diagram
12V 100A,130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-25010 |
A25AFKS..AXVA70 12V 100A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-37220 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-25020 |
A25AFKS..AXVA70 |
1 | ||
| 27310-24150 |
A25AFKS..AXVA70 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10223 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-47330 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-25020 |
A25AFKS..AXVA70 |
1 | ||
| 27360-24150 |
A25AFKS..AXVA70 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-F0010 |
A25AFKS..AXVA70 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..EUR |
1 | ||
| Common parts | ||||
| 88446-42030 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90119-08C78 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
