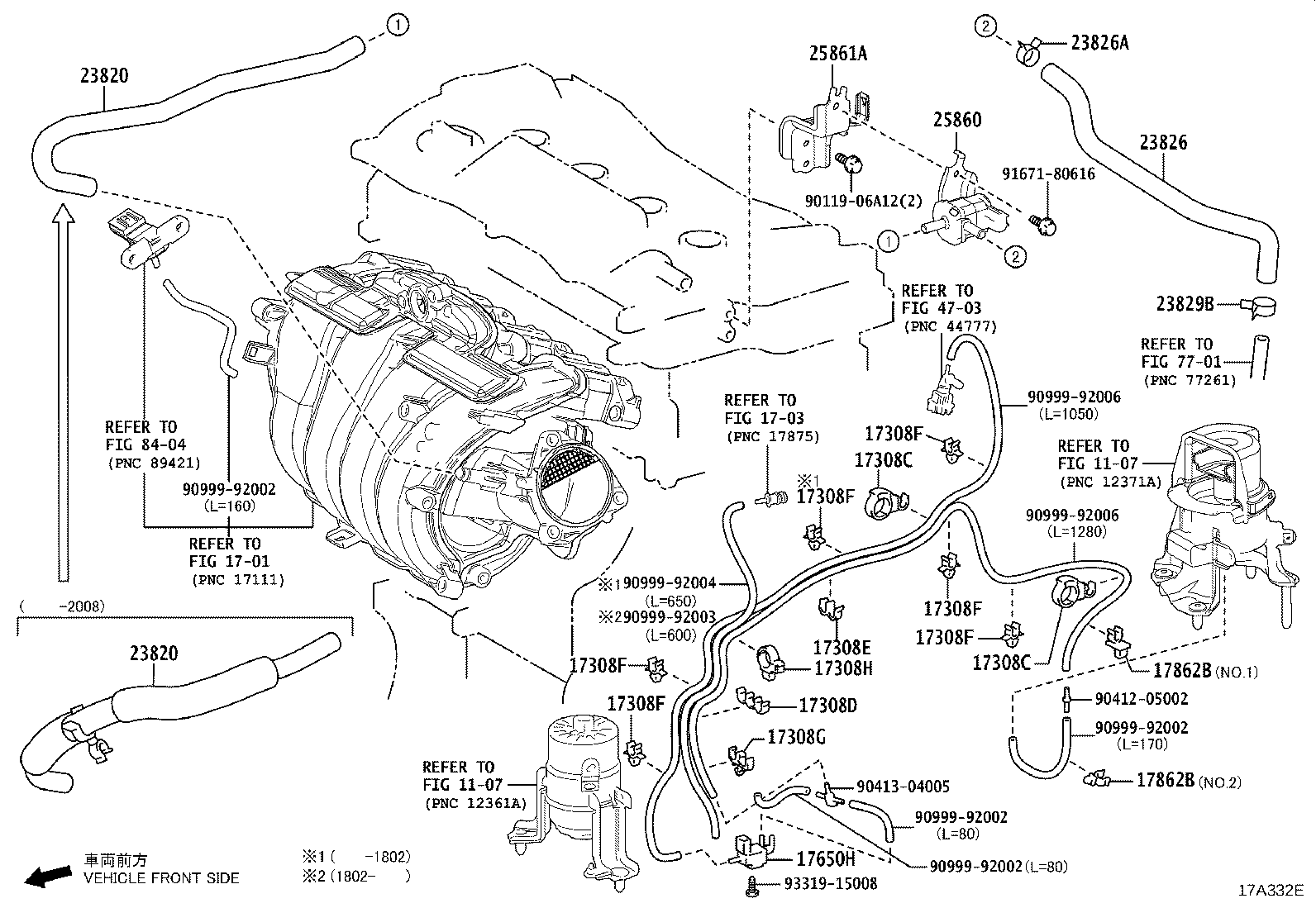

AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
(1709- )A25AFKS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308C - CLAMP(FOR VACUUM HOSE) | ||||
| 44783-33060 |
A25AFKS..AXVA70 |
2 | ||
| 17308C - CLAMP(FOR VACUUM HOSE) | ||||
| 44783-33060 |
A25AFKS..AXVA70 |
2 | ||
| 17308D - CLAMP, NO.2(FOR VACUUM HOSE) | ||||
| 90464-00074 |
A25AFKS..AXVA70 |
1 | ||
| 17308E - CLAMP, NO.3(FOR VACUUM HOSE) | ||||
| 44783-42080 |
A25AFKS..AXVA70 |
1 | ||
| 90464-00082 |
A25AFKS..AXVA70 |
1 | ||
| 17308F - CLAMP, NO.4(FOR VACUUM HOSE) | ||||
| 90469-07011 |
A25AFKS..AXVA70 |
6 | ||
| 44783-42040 |
A25AFKS..AXVA70 |
5 | ||
| 17308F - CLAMP, NO.4(FOR VACUUM HOSE) | ||||
| 90469-07011 |
A25AFKS..AXVA70 |
6 | ||
| 44783-42040 |
A25AFKS..AXVA70 |
5 | ||
| 17308F - CLAMP, NO.4(FOR VACUUM HOSE) | ||||
| 90469-07011 |
A25AFKS..AXVA70 |
6 | ||
| 44783-42040 |
A25AFKS..AXVA70 |
5 | ||
| 17308F - CLAMP, NO.4(FOR VACUUM HOSE) | ||||
| 90469-07011 |
A25AFKS..AXVA70 |
6 | ||
| 44783-42040 |
A25AFKS..AXVA70 |
5 | ||
| 17308F - CLAMP, NO.4(FOR VACUUM HOSE) | ||||
| 90469-07011 |
A25AFKS..AXVA70 |
6 | ||
| 44783-42040 |
A25AFKS..AXVA70 |
5 | ||
| 17308F - CLAMP, NO.4(FOR VACUUM HOSE) | ||||
| 90469-07011 |
A25AFKS..AXVA70 |
6 | ||
| 44783-42040 |
A25AFKS..AXVA70 |
5 | ||
| 17308G - CLAMP, NO.5(FOR VACUUM HOSE) | ||||
| 90469-07012 |
A25AFKS..AXVA70 |
1 | ||
| 17308H - CLAMP, NO.6(FOR VACUUM HOSE) | ||||
| 90959-01434 |
A25AFKS..AXVA70 |
1 | ||
| 17650H - VALVE, VACUUM SWITCHING | ||||
| 90910-12059 |
A25AFKS..AXVA70 |
1 | ||
| 90910-TC003 |
A25AFKS..AXVA70 (L) |
1 | ||
| 90910-12059 |
A25AFKS..AXVA70 (J) |
1 | ||
| 17862B - CLAMP, HOSE | ||||
| 90949-01C91 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 44783-42040 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 90469-07011 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 44783-42060 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 17862B - CLAMP, HOSE | ||||
| 90949-01C91 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 44783-42040 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 90469-07011 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 44783-42060 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-25060 |
A25AFKS..AXVA70 |
1 | ||
| 23820-25260 |
A25AFKS..AXVA70 |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-25060 |
A25AFKS..AXVA70 |
1 | ||
| 23820-25260 |
A25AFKS..AXVA70 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-25011 |
A25AFKS..AXVA70 |
1 | ||
| 23826-25010 |
A25AFKS..AXVA70 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96133-41501 |
A25AFKS..AXVA70 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96136-41901 |
A25#..AXVA70,AXVH7# |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-25010 |
A25AFKS..AXVA70 |
1 | ||
| 25861A - BRACKET, VACUUM SWITCHING VALVE, NO.2 | ||||
| 25862-25011 |
A25AFKS..AXVA70 |
1 | ||
| Common parts | ||||
| 90119-06A12 | ||||
| 90412-05002 | ||||
| 90413-04005 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 91671-80616 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1701 | ||||
| 1703 | ||||
| 4703 | ||||
| 7701 | ||||
| 8404 | ||||
