AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )A25AFKS

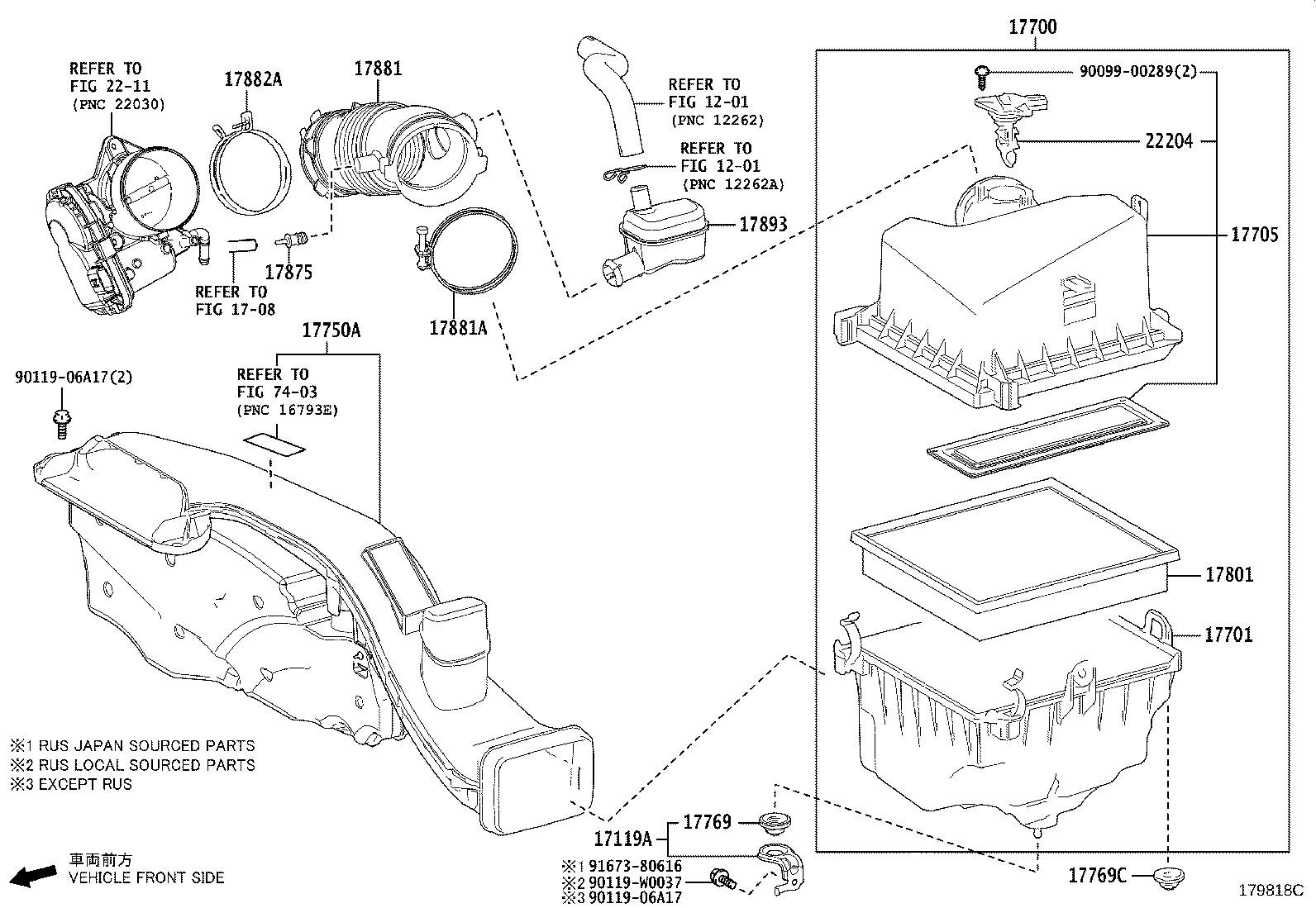

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-25010 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-25070 |
A25AFKS..AXVA70 |
1 | ||
| 17700-25140 |
A25AFKS..AXVA70 |
1 | ||
| 17700-25141 |
A25AFKS..AXVA70 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-25100 |
A25AFKS..AXVA70 |
1 | ||
| 17701-25070 |
A25AFKS..AXVA70 |
1 | ||
| 17701-25101 |
A25AFKS..AXVA70 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-25040 |
A25AFKS..AXVA70 |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-25010 |
A25AFKS..AXVA70 |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-25020 |
2ARFE,6ARFSE..ASV7#;A25AFKS..AXVA70..LHD |
1 | ||
| 17769C - SUPPORT, AIR CLEANER, NO.1 | ||||
| 17769-25020 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-25020 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-25010 |
A25AFKS..AXVA70 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-25020 |
A25AFKS..AXVA70 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-71001 |
A25AFKS..AXVA70 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-25040 |
A25AFKS..AXVA70 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
A25#..AXVA70,AXVH7# |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06A17 | ||||
| 90119-W0037 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
| 2211 | ||||
| 7403 | ||||
