AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

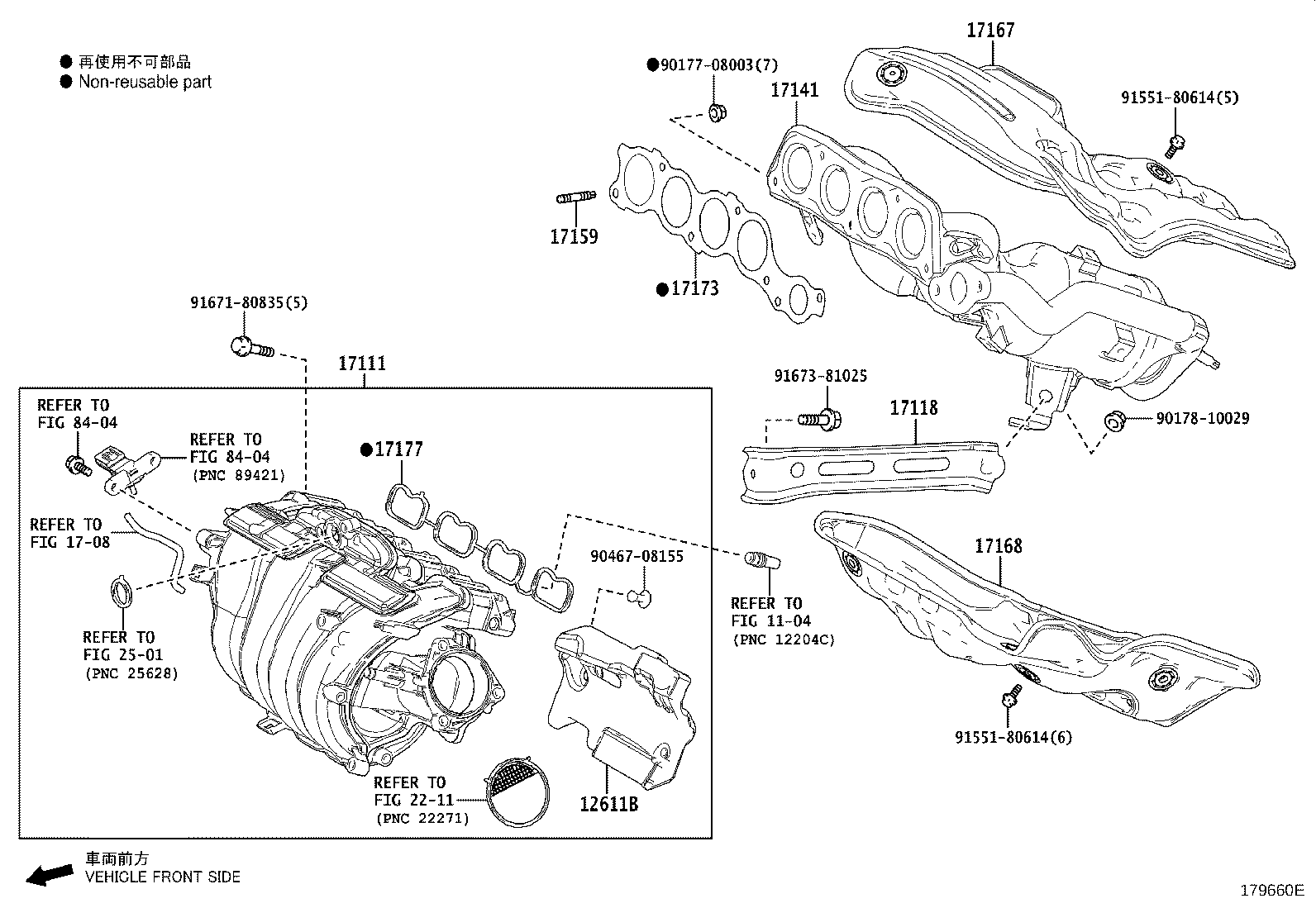

(1709-2009)A25AFKS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12611B - COVER, ENGINE, NO.1 | ||||
| 12613-25010 |
A25AFKS..AXVA70 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-25010 |
A25AFKS..AXVA70 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-25021 |
A25AFKS..AXVA70 |
1 | ||
| 17141-25020 |
A25AFKS..AXVA70 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08052 |
A25#..AXVA70,AXVH7# |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-25040 |
A25#..AXVA70,AXVH7#..N,S |
1 | ||
| 17167-25010 |
A25#..AXVA70,AXVH71..N,S |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-25010 |
A25#..AXVA70,AXVH71 |
1 | ||
| 17168-25040 |
A25#..AXVA70,AXVH7# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25020 |
A25#..AXVA70,AXVH7# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| Common parts | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 90467-08155 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||

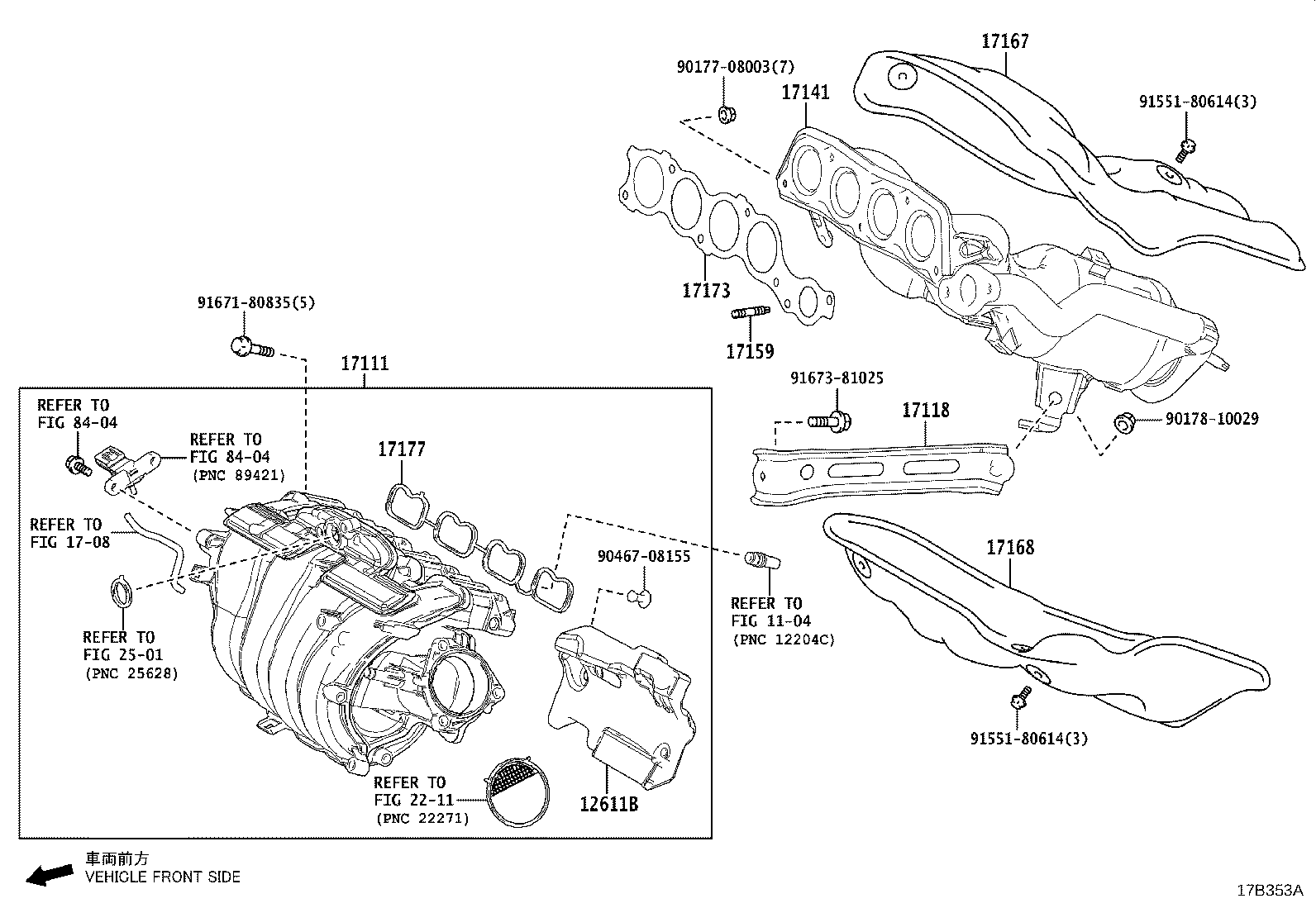

(2009- )A25AFKS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12611B - COVER, ENGINE, NO.1 | ||||
| 12613-25010 |
A25AFKS..AXVA70 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-25010 |
A25AFKS..AXVA70 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-25021 |
A25AFKS..AXVA70 |
1 | ||
| 17141-25020 |
A25AFKS..AXVA70 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08052 |
A25#..AXVA70,AXVH7# |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-25040 |
A25#..AXVA70,AXVH7#..N,S |
1 | ||
| 17167-25010 |
A25#..AXVA70,AXVH71..N,S |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-25010 |
A25#..AXVA70,AXVH71 |
1 | ||
| 17168-25040 |
A25#..AXVA70,AXVH7# |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25020 |
A25#..AXVA70,AXVH7# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| Common parts | ||||
| 90177-08003 | ||||
| 90178-10029 | ||||
| 90467-08155 | ||||
| 91551-80614 | ||||
| 91671-80835 | ||||
| 91673-81025 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1708 | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
