AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid

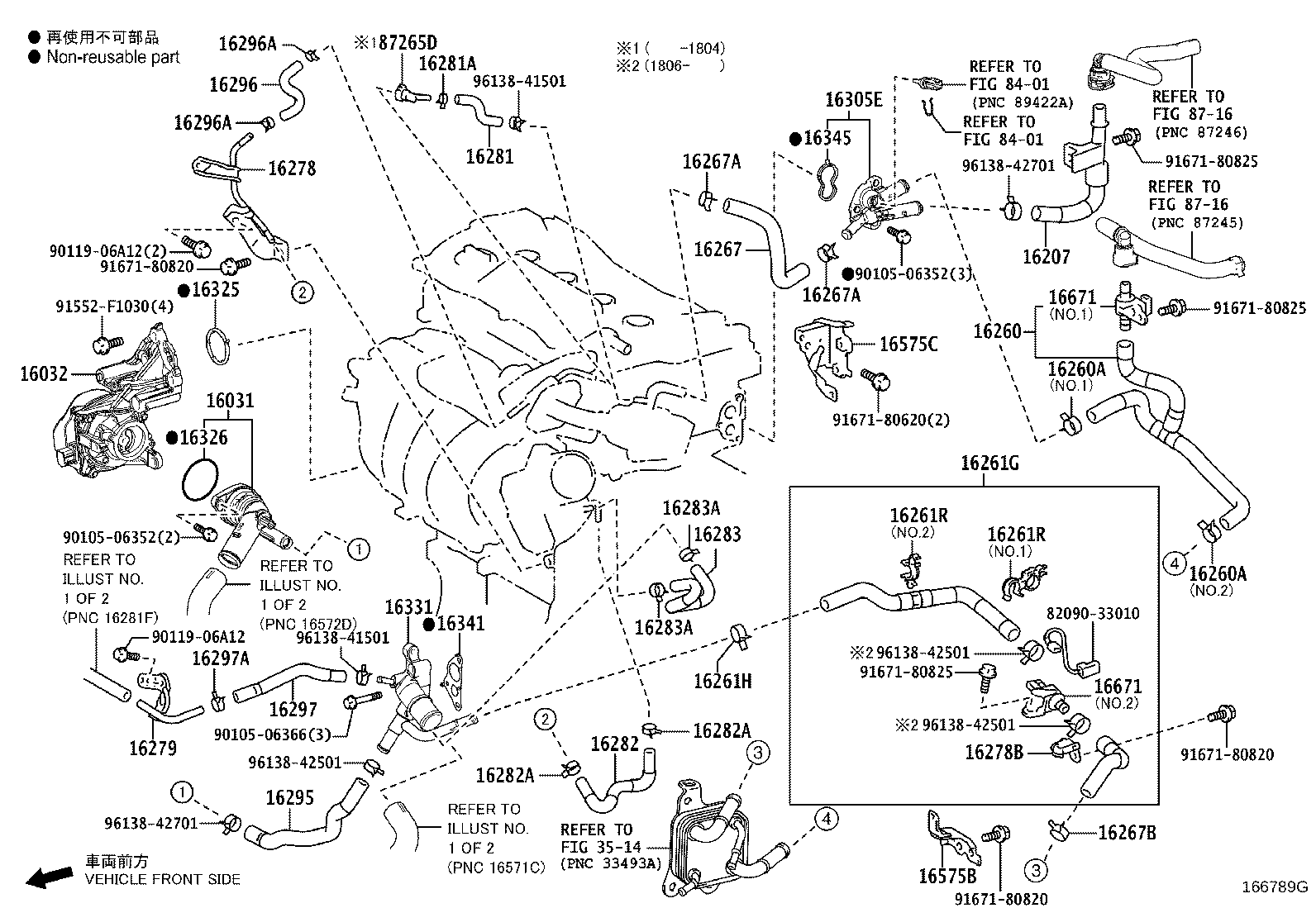

ILLUST NO. 2 OF 2(1709-2008)A25AFKS
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-25011 |
A25AFKS..AXVA70 |
1 | ||
| 16031-25010 |
A25#..AXVA70,AXVH71 |
1 | ||
| 16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP | ||||
| 16032-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42501 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 96138-42701 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42501 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 96138-42701 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-25070 |
A25AFKS..AXVA70 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42201 |
A25AFKS..AXVA70 |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 16581-25080 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25081 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25070 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 16581-25080 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25081 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25070 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16267-25060 |
A25AFKS..AXVA70 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
A25AFKS..AXVA70 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-25020 |
A25AFKS..AXVA70 |
1 | ||
| 16278B - BRACKET, WATER BY-PASS PIPE | ||||
| 16575-25070 |
A25AFKS..AXVA70 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 99555-10200 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16281-25021 |
A25#..AXVA70,AXVH71 |
1 | ||
| 16281-25020 |
A25#..AXVA70,AXVH71 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-25030 |
A25AFKS..AXVA70 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16296-25050 |
A25AFKS..AXVA70 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90467-15022 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-25030 |
A25AFKS..AXVA70 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
A25AFKS..AXVA70 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-25020 |
A25AFKS..AXVA70 |
1 | ||
| 16331-25021 |
A25AFKS..AXVA70 |
1 | ||
| 16331-25050 |
A25AFKS..AXVA70 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-25020 |
A25AFKS..AXVA70 |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-25040 |
A25AFKS..AXVA70 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24020 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16671-25010 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16671-25030 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24020 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16671-25010 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16671-25030 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 87265D - CONNECTOR, HEATER WATER HOSE | ||||
| 87265-33020 |
AXVA70,AXVH71 |
1 | ||
| Common parts | ||||
| 82090-33010 | ||||
| 90105-06352 | ||||
| 90105-06366 | ||||
| 90119-06A12 | ||||
| 91552-F1030 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 96138-41501 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 8401 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(2008- )A25AFKS
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-25011 |
A25AFKS..AXVA70 |
1 | ||
| 16031-25010 |
A25#..AXVA70,AXVH71 |
1 | ||
| 16032 - HOUSING SUB-ASSY, WATER INLET W/WATER PUMP | ||||
| 16032-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42501 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 96138-42701 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 96138-42501 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 96138-42701 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-25070 |
A25AFKS..AXVA70 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42201 |
A25AFKS..AXVA70 |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 16581-25080 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25081 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25070 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 16581-25080 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25081 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581-25070 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16267-25060 |
A25AFKS..AXVA70 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96138-42101 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96138-42501 |
A25AFKS..AXVA70 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-25020 |
A25AFKS..AXVA70 |
1 | ||
| 16278B - BRACKET, WATER BY-PASS PIPE | ||||
| 16575-25070 |
A25AFKS..AXVA70 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 99555-10200 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16281-25021 |
A25#..AXVA70,AXVH71 |
1 | ||
| 16281-25020 |
A25#..AXVA70,AXVH71 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-25030 |
A25AFKS..AXVA70 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16296-25050 |
A25AFKS..AXVA70 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96138-41501 |
A25#..AXVA70,AXVH7# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 90467-15022 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-25030 |
A25AFKS..AXVA70 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
A25AFKS..AXVA70 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-25020 |
A25AFKS..AXVA70 |
1 | ||
| 16331-25021 |
A25AFKS..AXVA70 |
1 | ||
| 16331-25050 |
A25AFKS..AXVA70 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-25010 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-25020 |
A25AFKS..AXVA70 |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-25040 |
A25AFKS..AXVA70 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24020 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16671-25010 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16671-25030 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16671 - VALVE, WATER | ||||
| 16671-24020 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16671-25010 |
A25AFKS..AXVA70 NO.1:REFER ILLUST. |
1 | ||
| 16671-25030 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 82090-33010 | ||||
| 90105-06352 | ||||
| 90105-06366 | ||||
| 90119-06A12 | ||||
| 91552-F1030 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 96138-41501 | ||||
| 96138-42501 | ||||
| 96138-42701 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 8401 | ||||
| 8716 | ||||

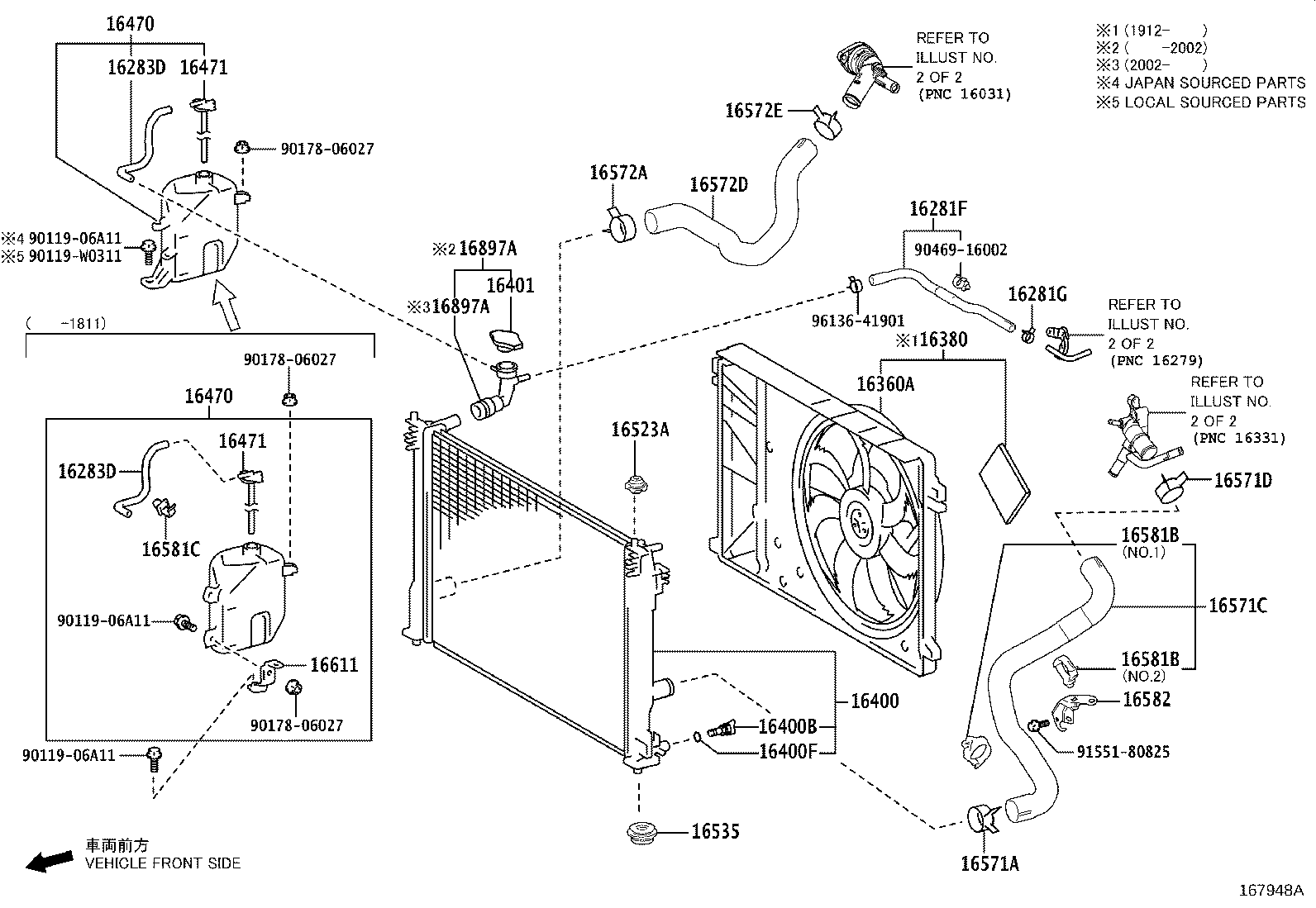

ILLUST NO. 1 OF 2(1709- )A25AFKS
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
A25#..AXVA70,AXVH71 |
1 | ||
| 96138-51701 |
A25#..AXVA70,AXVH7# |
1 | ||
| 16283D - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-25031 |
A25#,2ARFE,6ARFSE..ASV7#,AXVA70,AXVH71 |
1 | ||
| 16283-25032 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16283D - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-25031 |
A25#,2ARFE,6ARFSE..ASV7#,AXVA70,AXVH71 |
1 | ||
| 16283-25032 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-25130 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36030 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-25041 |
A25#,2ARFE,6ARFSE..ASV7#,AXVA70,AXVH71 |
1 | ||
| 16470-25042 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-25041 |
A25#,2ARFE,6ARFSE..ASV7#,AXVA70,AXVH71 |
1 | ||
| 16470-25042 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-25010 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-25010 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
A25#,2ARFE,6ARFSE..ASV7#,AXVA70,AXVH71 |
2 | ||
| 16523-25010 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-20030 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-25020 |
A25AFKS..AXVA70 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-43002 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-43002 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-25010 |
A25#..AXVA70,AXVH71 NO.1:REFER ILLUST. |
1 | ||
| 16581-25030 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-25010 |
A25#..AXVA70,AXVH71 NO.1:REFER ILLUST. |
1 | ||
| 16581-25030 |
A25AFKS..AXVA70 NO.2:REFER ILLUST. |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-25050 |
A25#,2ARFE,6ARFSE..ASV7#,AXVA70,AXVH71 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-25010 |
A25AFKS..AXVA70 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-25010 |
A25#,2ARFE,6ARFSE..ASV7#,AXVA70,AXVH71 |
1 | ||
| 16897A - NECK, FILLER | ||||
| 16897-25010 |
A25AFKS,2ARFE,6ARFSE..ASV7#,AXVA70 |
1 | ||
| 16897-25011 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| 16897A - NECK, FILLER | ||||
| 16897-25010 |
A25AFKS,2ARFE,6ARFSE..ASV7#,AXVA70 |
1 | ||
| 16897-25011 |
A25AFKS,2ARFE..ASV70,AXVA70..EUR |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-W0311 | ||||
| 90178-06027 | ||||
| 90469-16002 | ||||
| 91551-80825 | ||||
| 96136-41901 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
