AXVA70L-AEZNBW (2017)
Toyota Camry/Hybrid
Production
Sep 2017
-
Feb 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )A25AFKS

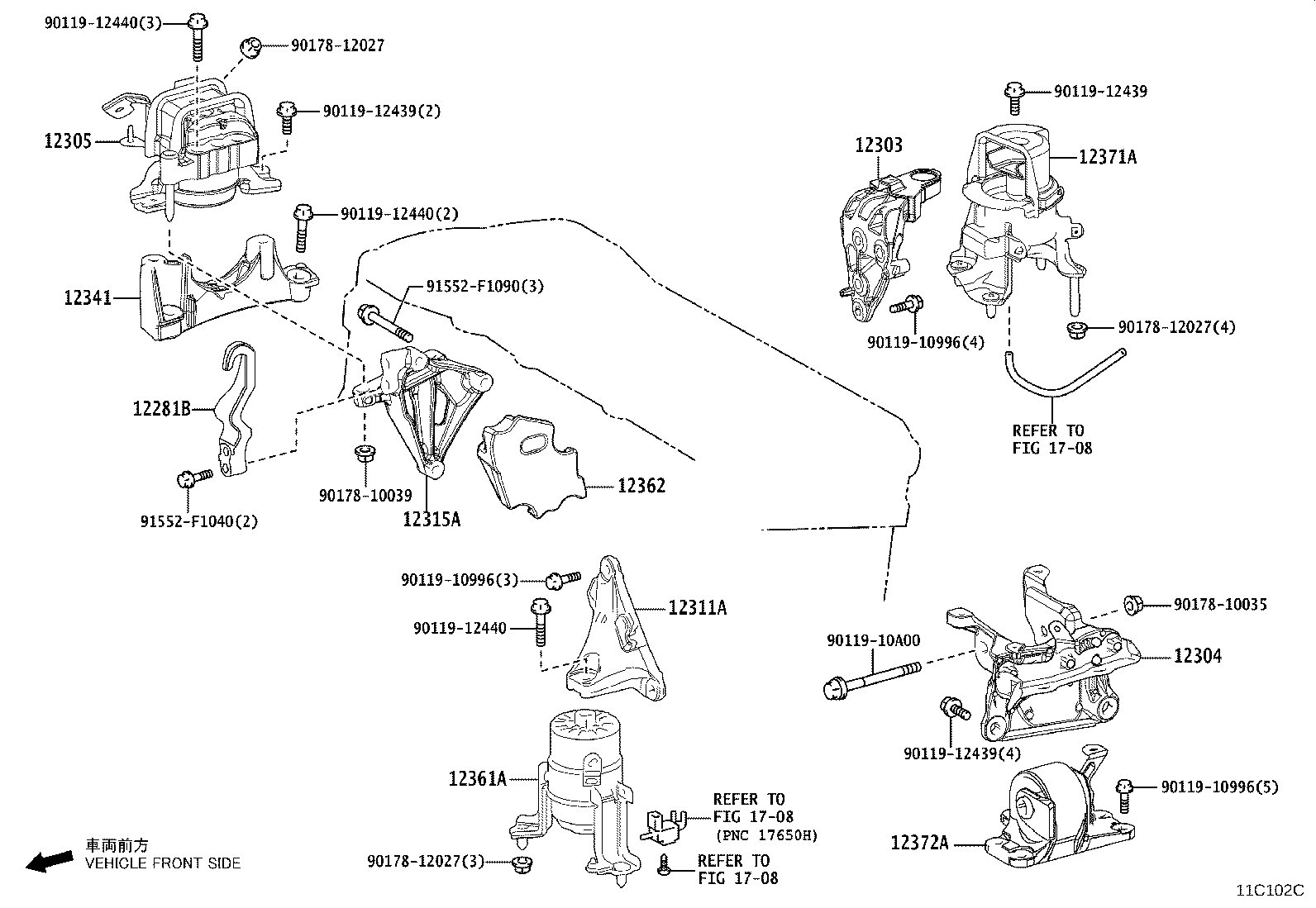

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12281B - HANGER, ENGINE, NO.1 | ||||
| 12281-25030 |
A25#..AXVA70,AXVH7# |
1 | ||
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-25010 |
A25AFKS..AXVA70 |
1 | ||
| 12304 - BRACKET SUB-ASSY, ENGINE MOUNTING, LH | ||||
| 12304-25010 |
A25AFKS..AXVA70 |
1 | ||
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-25010 |
A25AFKS..AXVA70 |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-25070 |
A25AFKS..AXVA70 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-25030 |
A25#..AXVA70,AXVH71 |
1 | ||
| 12315-25031 |
A25#..AXVA70,AXVH7# |
1 | ||
| 12341 - SPACER, ENGINE MOUNTING | ||||
| 12341-25010 |
A25#,2ARFE..ASV70,AXVA70,AXVH7#..EUR |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-25041 |
A25AFKS..AXVA70 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-25010 |
A25AFKS..AXVA70 |
1 | ||
| 12362-25011 |
A25AFKS..AXVA70 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-25011 |
A25AFKS..AXVA70 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-25010 |
A25AFKS..AXVA70 |
1 | ||
| Common parts | ||||
| 90119-10996 | ||||
| 90119-10A00 | ||||
| 90119-12439 | ||||
| 90119-12440 | ||||
| 90178-10035 | ||||
| 90178-10039 | ||||
| 90178-12027 | ||||
| 91552-F1040 | ||||
| 91552-F1090 | ||||
| Linked diagrams | ||||
| 1708 | ||||
