AVV50R-AEXNBW (2014)
Toyota Camry/Hybrid
Production
Sep 2014
-
Apr 2017
Engine
2ARFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1409- )

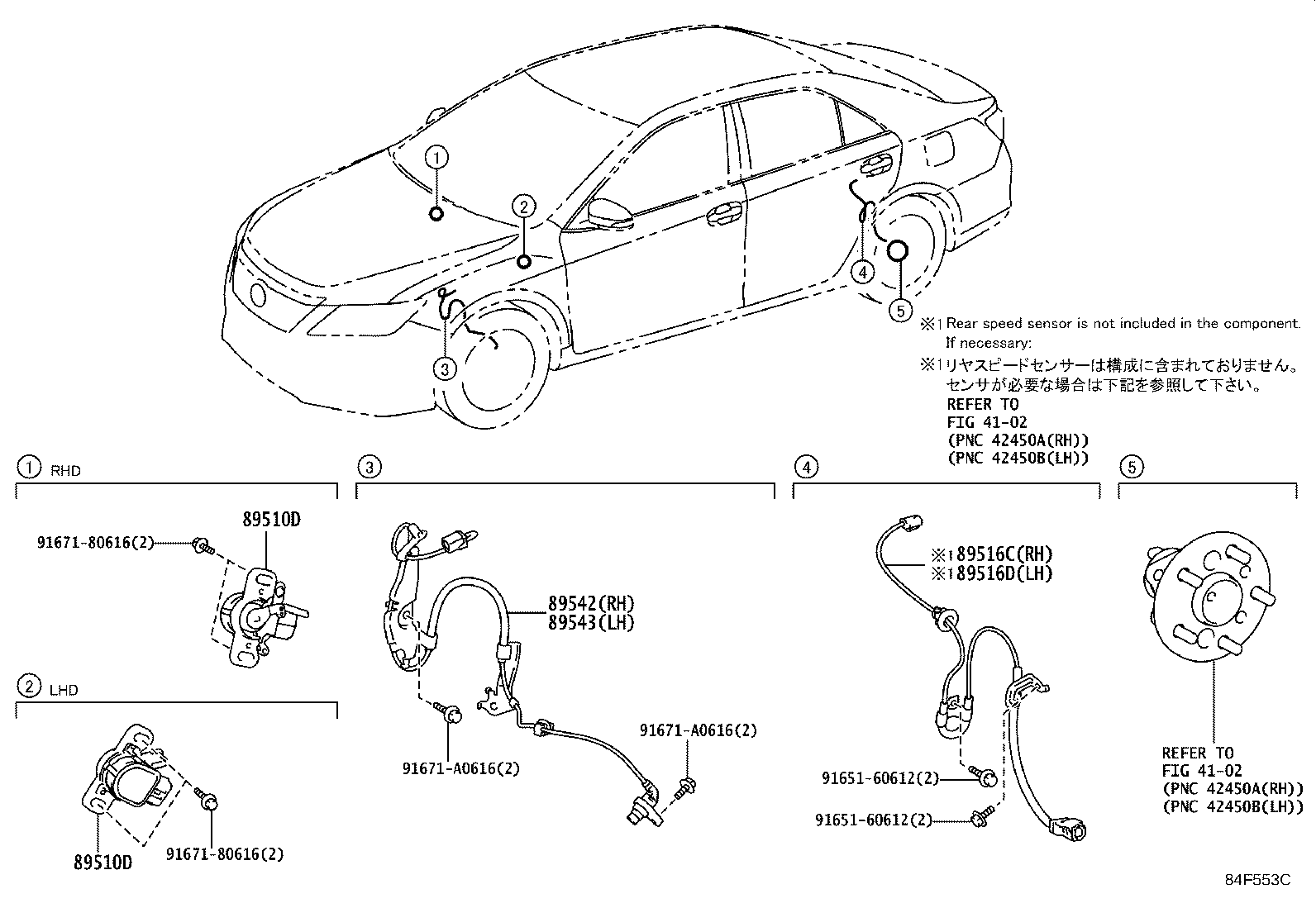

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-33020 |
AVV50..RHD |
1 | ||
| 89510-33020 |
AVV50..RHD |
1 | ||
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-33020 |
AVV50..RHD |
1 | ||
| 89510-33020 |
AVV50..RHD |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-33070 |
ASV5#,AVV50,GSV50 |
1 | ||
| 89516-33070 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-33080 |
ASV5#,AVV50,GSV50 |
1 | ||
| 89516-33080 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-33100 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 89542-33120 |
ASV5#,AVV50,GSV50 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-33110 |
ASV5#,AVV50,GSV50 |
1 | ||
| 89543-33090 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| Common parts | ||||
| 91651-60612 | ||||
| 91671-80616 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4102 | ||||
