AVV50R-AEXNBW (2014)

Toyota Camry/Hybrid

Production Sep 2014 - Apr 2017
Engine 2ARFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

Click highlighted areas on diagram

3-SPOKE

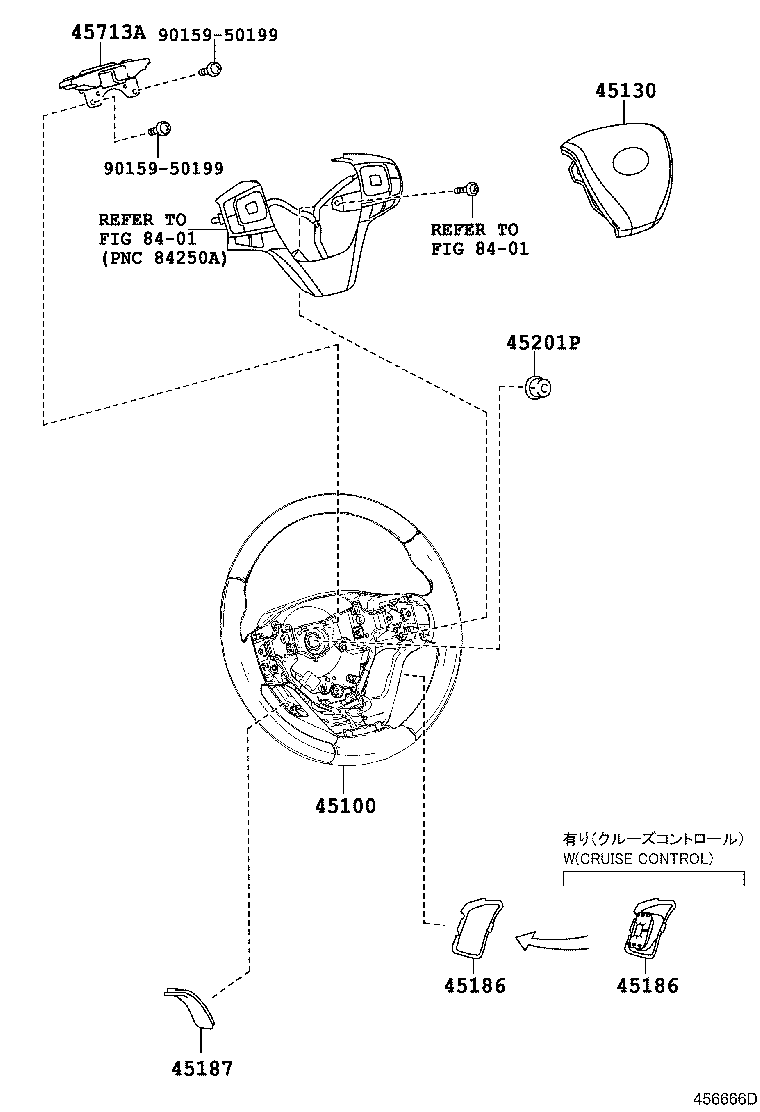

diagram 45100 45130 45186 45186 45187 45201P 45713A 8401 8401 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-33780C0

AVV50;ASV50,GSV50..RUP

4-SPOKE,LEATHER,BLACK,TRIM0#,2#

 1
45130 - BUTTON ASSY, HORN
45130-33490C0

ACV51,ASV50,AVV50,GSV50

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33100C0

AVV50,GSV50

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33100C0

AVV50,GSV50

BLACK,TRIM0#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-33070C0

AVV50

BLACK,TRIM0#,2#,MARK=77

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ASV50,AVV50,GSV50..JPP

 1
90179-12071

ASV50,AVV50,GSV50..JPP

 1
45713A - DAMPER, STEERING SHAKE
45713-33140

AVV50,GSV50..JPP

 1
45713-33140

AVV50,GSV50..JPP

 1
Common parts
90159-50199
Linked diagrams
8401
