AVV50L-AEXNBW (2011)

Toyota Camry/Hybrid

Production Aug 2011 - Sep 2014
Engine 2ARFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1108-1409)JPP ; (1108-1411)RUP

Click highlighted areas on diagram

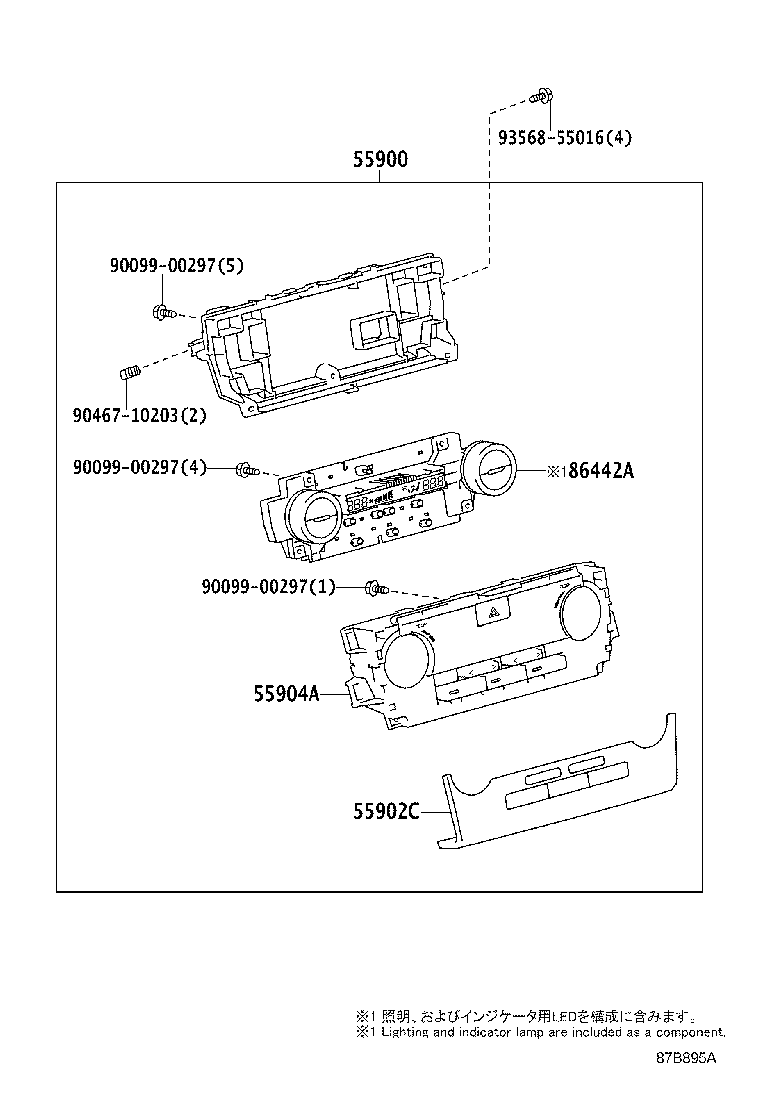

CONTROL PANEL---FRONT

diagram 55900 55902C 55904A 86442A 9009900297 9009900297 9009900297 9046710203 9356855016
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-33D50

ASV50,AVV50..JPP..LHD

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-33A80

ASV50,AVV50,GSV50..JPP

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-33240

ASV50,AVV50,GSV50..JPP..LHD

 1
86442A - BOARD, HEATER CONTROL SWITCH
86442-33010

ASV50,AVV50..JPP..LHD

 1
Common parts
90099-00297
90467-10203
93568-55016

ILLUST NO. 2 OF 3(1108- )ACV51,ASV50,AVV50,GSV50..LHD ; (1502-)ASV51

Click highlighted areas on diagram

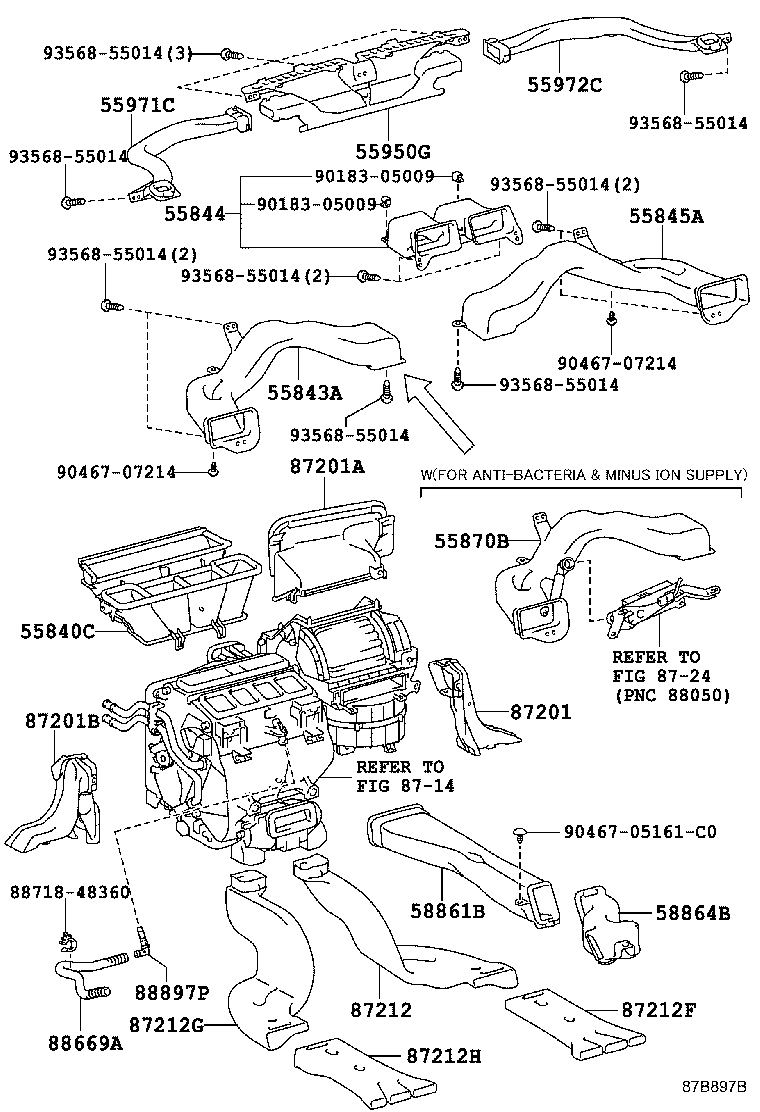

AIR DUCT

diagram 55840C 55843A 55844 55845A 55870B 55950G 55971C 55972C 58861B 58864B 87201 87201A 87201B 87212 87212F 87212G 87212H 8724 88669A 8871848360 88897P 9018305009 9018305009 9046705161C0 9046707214 9046707214 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55840C - DUCT ASSY, HEATER TO REGISTER, NO.6
55840-33011

ASV50,AVV50,GSV50..JPP

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-33170

ASV50,AVV50,GSV50..JPP

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-33150

ASV50,AVV50,GSV50..JPP..LHD

 1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-33010

ASV50,AVV50,GSV50..JPP..LHD

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-33120

ASV50,AVV50,GSV50..JPP

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-33120

ASV50,AVV50,GSV50..JPP

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-33120

ASV50,AVV50,GSV50..JPP

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-33050

ASV50,AVV50,GSV50..JPP..LHD

 1
58864B - DUCT, CONSOLE BOX, NO.4
58864-33020

ASV50,AVV50,GSV50..JPP..LHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-33290

ASV50,AVV50,GSV50..JPP..LHD

 1
87201A - DUCT SUB-ASSY, AIR
87201-33360

ASV50,AVV50,GSV50..JPP..LHD

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-33370

ASV50,AVV50,GSV50..JPP..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-33040

ASV50,AVV50,GSV50..JPP

 1
87212F - DUCT, AIR, REAR NO.2
87215-33010

ASV50,AVV50,GSV50..JPP

 1
87212G - DUCT, AIR, REAR NO.3
87213-33050

ASV50,AVV50,GSV50..JPP

 1
87212H - DUCT, AIR, REAR NO.4
87216-33010

ASV50,AVV50,GSV50..JPP

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-28030

ASV50,AVV50,GSV50..JPP

 1
88897P - ASPIRATOR
88897-33030

ASV50,AVV50,GSV50..JPP

 1
Common parts
88718-48360
90183-05009
90467-05161C0
90467-07214
93568-55014
Linked diagrams
8724

ILLUST NO. 3 OF 3(1108- )ACV51,ASV50,AVV50,GSV50..LHD ; (1502-)ASV51

Click highlighted areas on diagram

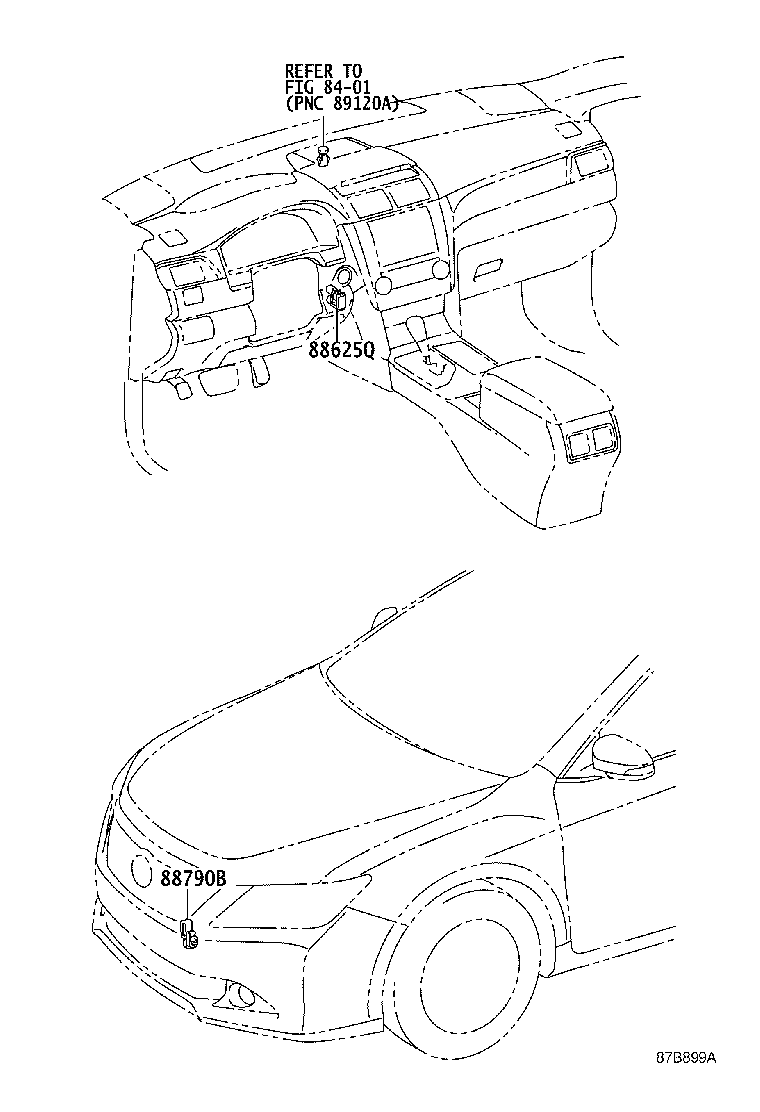

SENSOR

diagram 8401 88625Q 88790B
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ASV50,AVV50,GSV50..JPP

 1
88790B - THERMISTOR ASSY
88790-22131

ASV50,AVV50,GSV50..JPP

 1
Linked diagrams
8401
