AVV50L-AEXNBW (2011)

Toyota Camry/Hybrid

Production Aug 2011 - Sep 2014
Engine 2ARFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1409)JPP..LHD ; (1108-1411)RUP

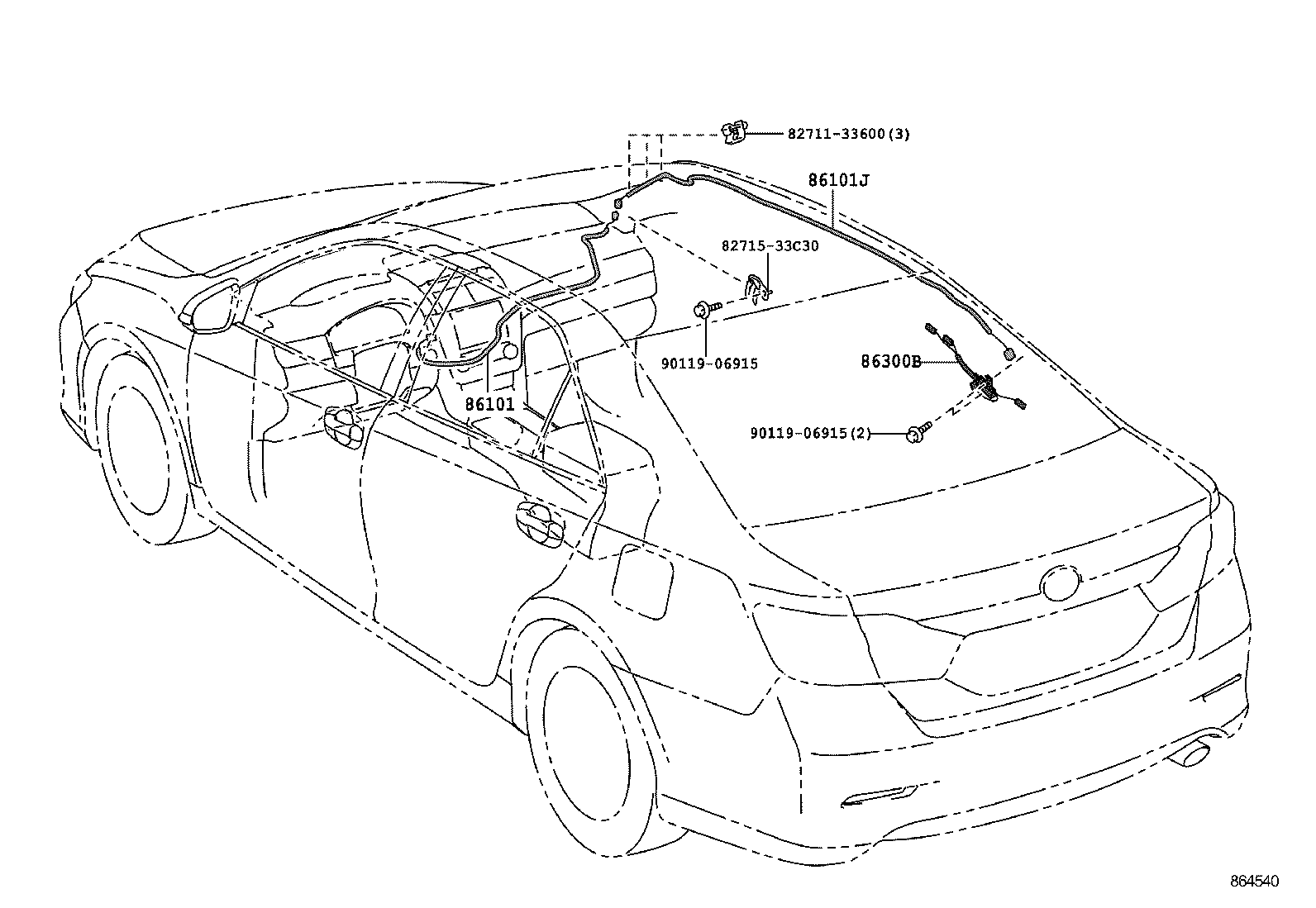

Click highlighted areas on diagram

diagram 8271133600 8271533C30 86101 86101J 86300B 9011906915 9011906915
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-33B00

ASV50,AVV50,GSV50..JPP..LHD

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-33A70

ASV50,AVV50,GSV50..JPP

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-33330

ASV50,AVV50,GSV50..JPP

 1
Common parts
82711-33600
82715-33C30
90119-06915
