AVV50L-AEXNBW (2011)
Toyota Camry/Hybrid
Production
Aug 2011
-
Sep 2014
Engine
2ARFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF11(1108- )AVV50..LHD
Click highlighted areas on diagram

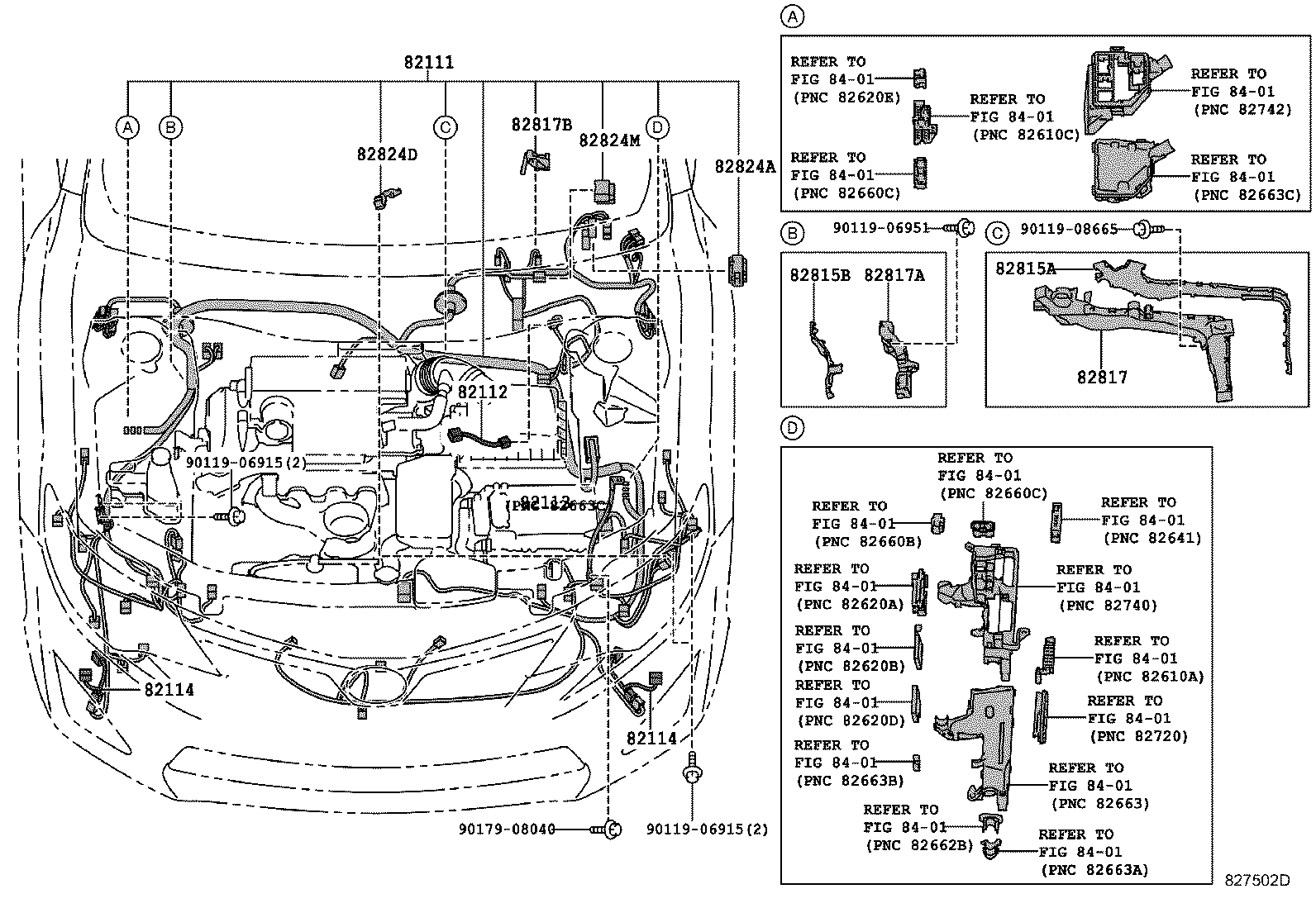

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-33Q40 |
AVV50..LHD |
1 | ||
| 82111-33Q41 |
AVV50..LHD |
1 | ||
| 82111-33Q42 |
AVV50..LHD |
1 | ||
| 82111-33Q43 |
AVV50..LHD |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-33080 |
ASV50,AVV50,GSV50..JPP..LHD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-33040 |
AVV50 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-33010 |
AVV50..LHD |
2 | ||
| 82114-33020 |
AVV50..LHD |
2 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-33010 |
AVV50..LHD |
2 | ||
| 82114-33020 |
AVV50..LHD |
2 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33620 |
AVV50..LHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33630 |
AVV50..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-33F90 |
AVV50..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33G00 |
AVV50..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33K00 |
ASV50,AVV50,GSV50..JPP..LHD |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
ASV50,AVV50,GSV50..JPP..LHD |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-73030 |
AVV50 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06951 | ||||
| 90119-08665 | ||||
| 90179-08040 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF11(1108- )ASV50,AVV50,GSV50..LHD ; (1208-1411)ACV51 ; (1503- )ASV51
Click highlighted areas on diagram

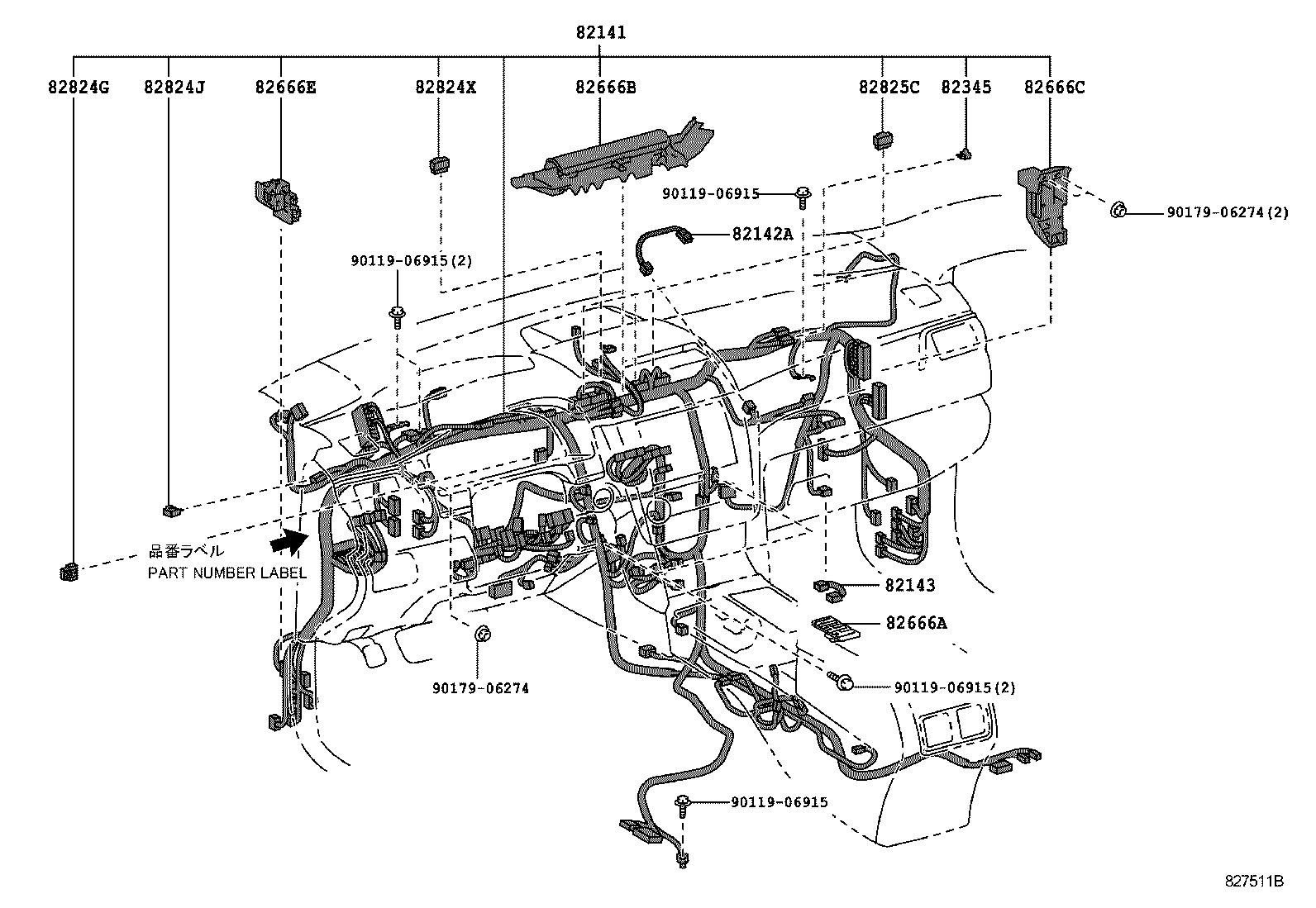

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-33V20 |
AVV50..LHD |
1 | ||
| 82141-33V21 |
AVV50..LHD |
1 | ||
| 82141-33V22 |
AVV50..LHD |
1 | ||
| 82141-33V23 |
AVV50..LHD |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-33030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-33130 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60610 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-33410 |
ASV50,AVV50,GSV50..JPP..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-33420 |
ASV50,AVV50,GSV50..JPP..LHD |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-33510 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
1 | ||
| 82824X - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
ASV50..RHD;ASV50..JPP..RUS;AVV50,GSV50..JPP |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
AVV50;GSV50..JPP..RUS |
4 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
ILLUST NO. 5 OF11(1108- )ASV50,AVV50,GSV50 ; (1208-1411)ACV51; (1503- )ASV51
Click highlighted areas on diagram

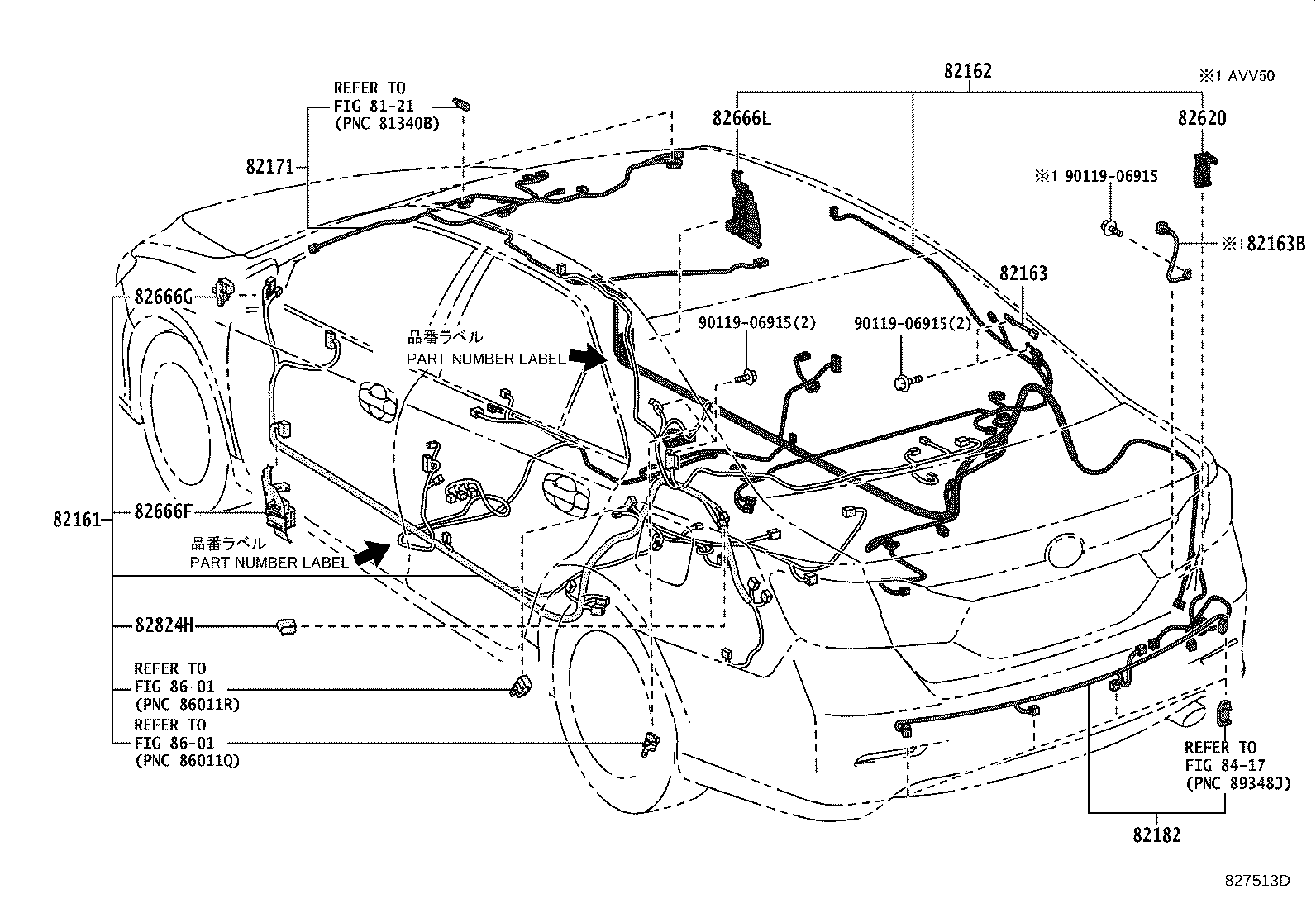

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-33N10 |
AVV50..LHD |
1 | ||
| 82161-33N11 |
AVV50..LHD |
1 | ||
| 82161-33N12 |
AVV50..LHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-33S00 |
AVV50..LHD |
1 | ||
| 82162-33S01 |
AVV50..LHD |
1 | ||
| 82162-33S02 |
AVV50..LHD |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-33110 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-33100 |
AVV50 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-33E50 |
AVV50..LHD |
1 | ||
| 82171-33E51 |
AVV50..LHD |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-33130 |
AVV50..LHD |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
AVV50 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-33470 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-33480 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-33490 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 6 OF11(1108- )AVV50
Click highlighted areas on diagram

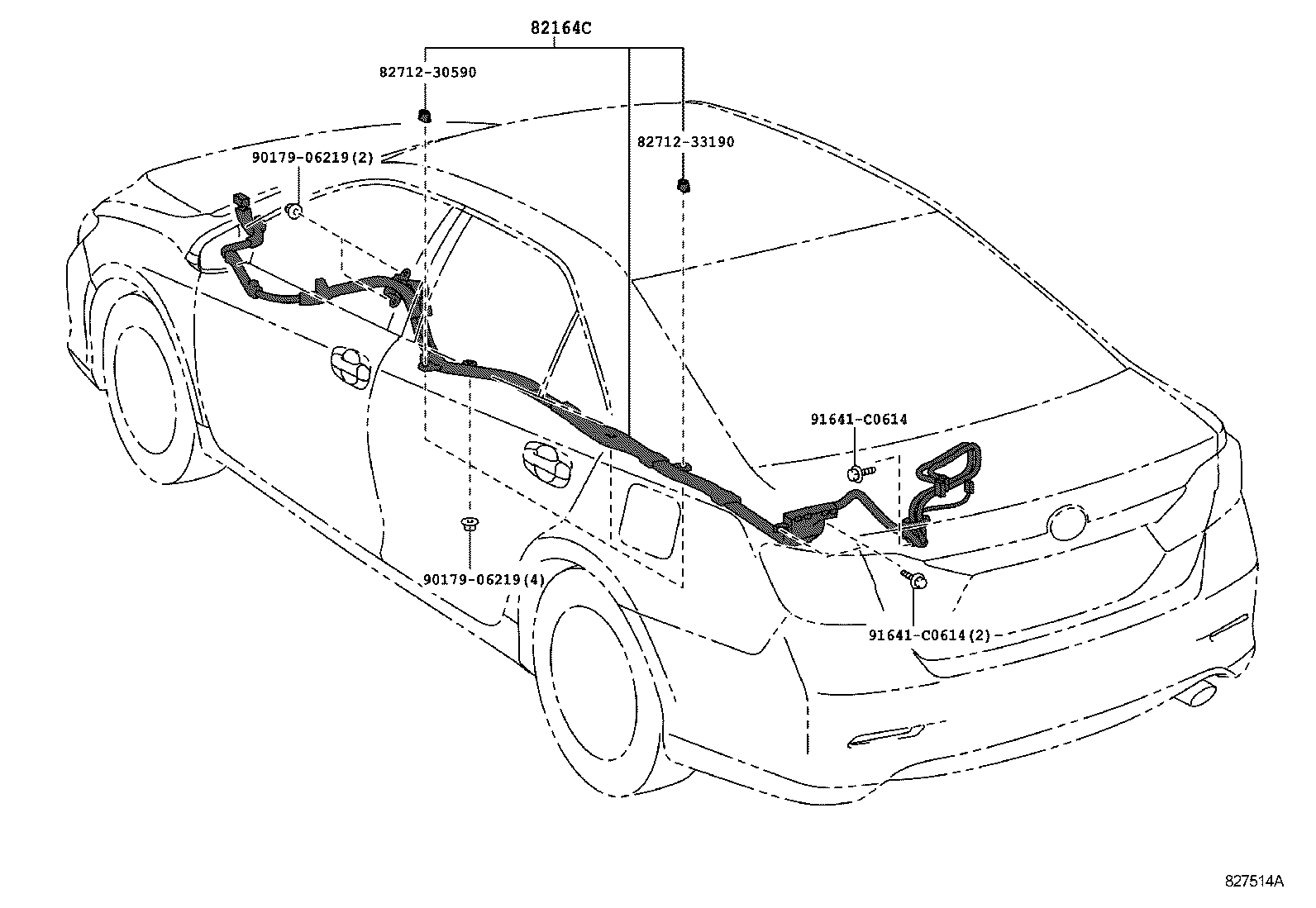

HIGH-TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-33141 |
AVV50 |
1 | ||
| 82164-33140 |
AVV50 |
1 | ||
| Common parts | ||||
| 82712-30590 | ||||
| 82712-33190 | ||||
| 90179-06219 | ||||
| 91641-C0614 | ||||
ILLUST NO. 9 OF11(1108- )AVV50
Click highlighted areas on diagram

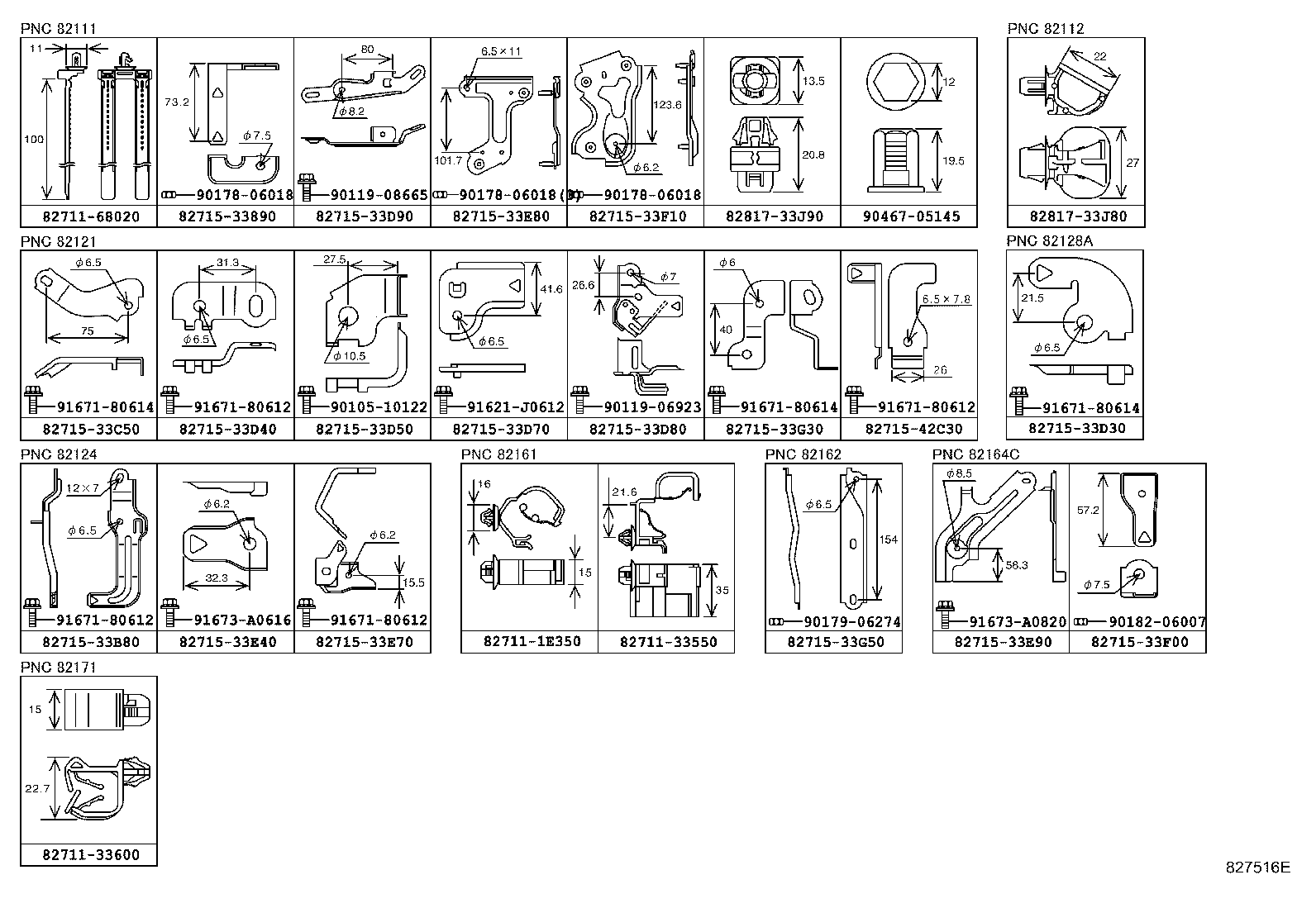

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-33550 | ||||
| 82711-33600 | ||||
| 82711-68020 | ||||
| 82715-33890 | ||||
| 82715-33B80 | ||||
| 82715-33C50 | ||||
| 82715-33D30 | ||||
| 82715-33D40 | ||||
| 82715-33D50 | ||||
| 82715-33D70 | ||||
| 82715-33D80 | ||||
| 82715-33D90 | ||||
| 82715-33E40 | ||||
| 82715-33E70 | ||||
| 82715-33E80 | ||||
| 82715-33E90 | ||||
| 82715-33F00 | ||||
| 82715-33F10 | ||||
| 82715-33G30 | ||||
| 82715-33G50 | ||||
| 82715-42C30 | ||||
| 82817-33J80 | ||||
| 82817-33J90 | ||||
| 90105-10122 | ||||
| 90119-06923 | ||||
| 90119-08665 | ||||
| 90178-06018 | ||||
| 90179-06274 | ||||
| 90182-06007 | ||||
| 90467-05145 | ||||
| 91621-J0612 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
ILLUST NO. 8 OF11(1108- )ASV50,AVV50,GSV50 ; (1208-1411)ACV51
Click highlighted areas on diagram

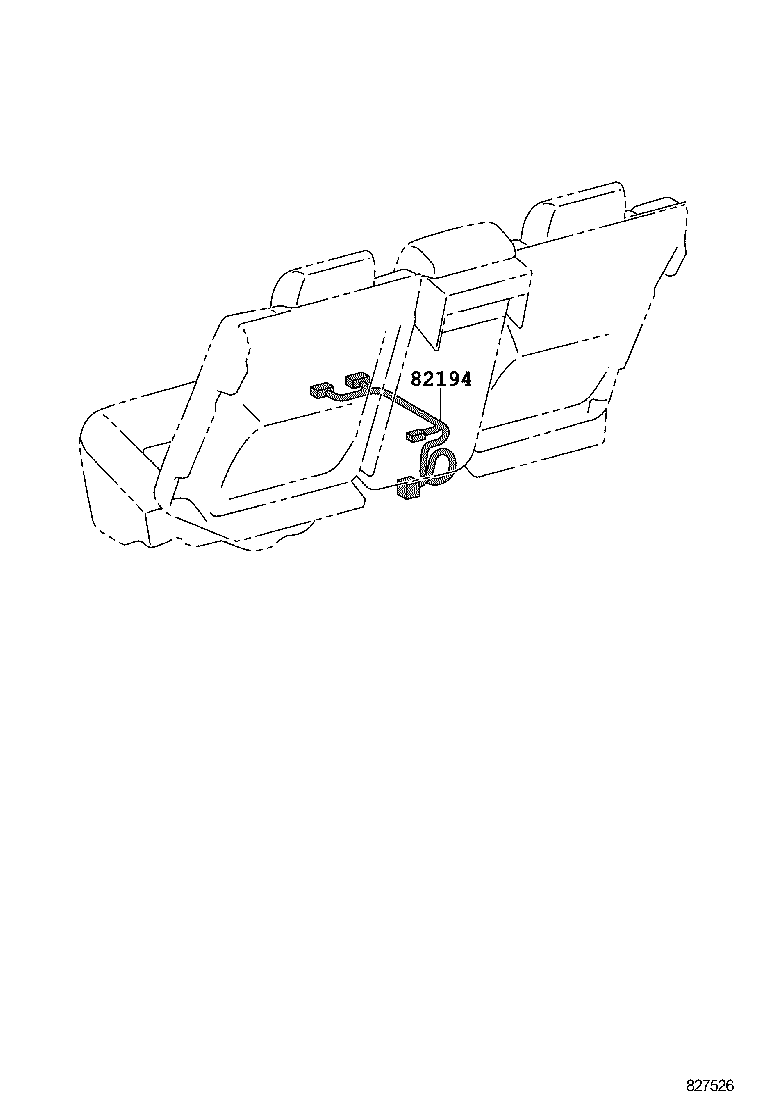

REAR SEAT
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF11(1108- )AVV50
Click highlighted areas on diagram

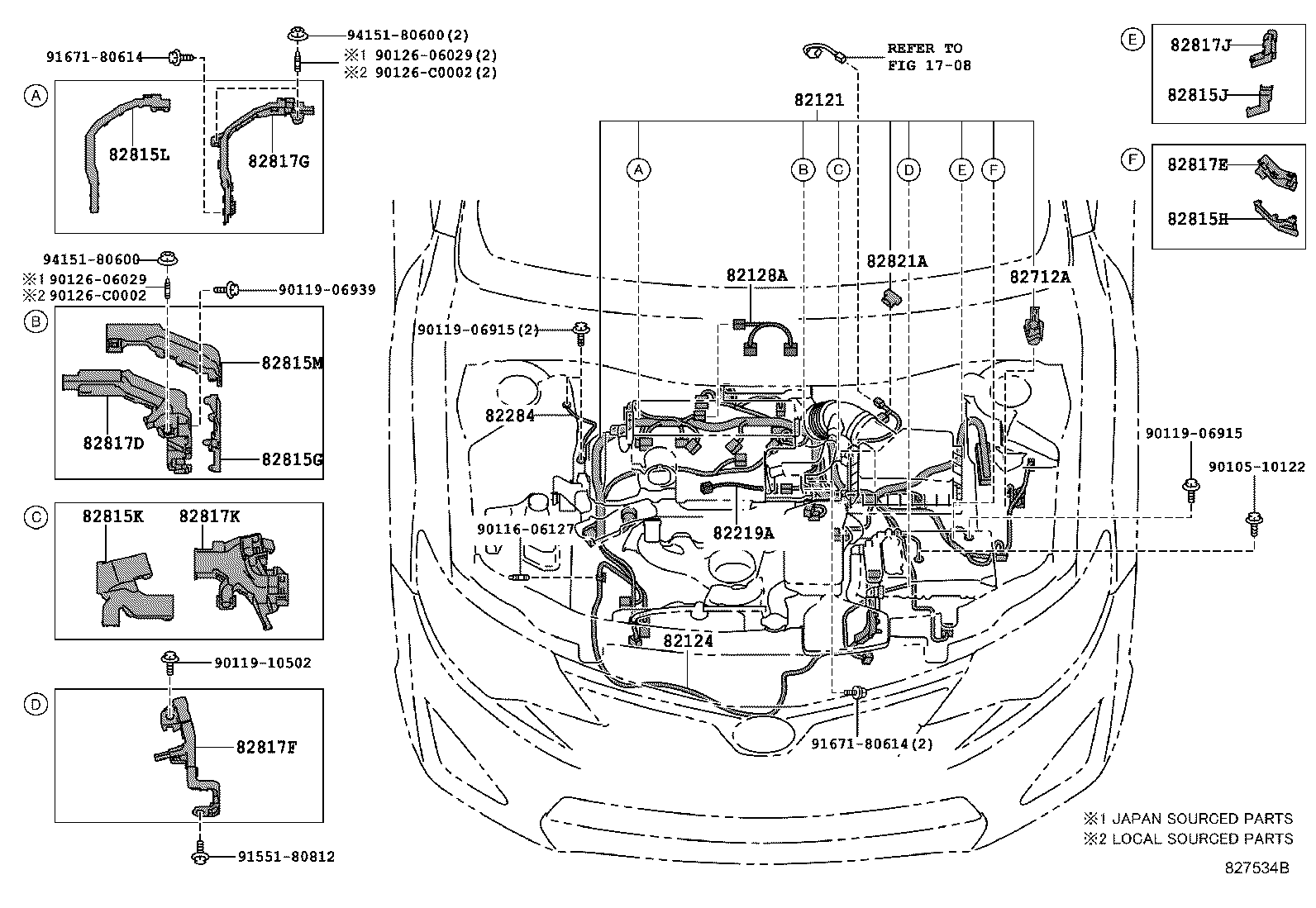

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-33D70 |
AVV50..LHD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-33090 |
AVV50 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-33060 |
AVV50 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-33050 |
AVV50 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-33080 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-33500 |
AVV50 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-33510 |
AVV50 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33520 |
AVV50 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33680 |
AVV50 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33730 |
AVV50 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-33750 |
AVV50 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33D80 |
AVV50 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33D90 |
AVV50 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-33E00 |
AVV50 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33E10 |
AVV50 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-33E20 |
AVV50 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33G70 |
AVV50 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-33330 |
AVV50 |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-06915 | ||||
| 90119-06939 | ||||
| 90119-10502 | ||||
| 90126-06029 | ||||
| 90126-C0002 | ||||
| 91551-80812 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
ILLUST NO. 4 OF11(1108- )ASV50,AVV50,GSV50 ; (1208-1411)ACV51; (1503- )ASV51
Click highlighted areas on diagram

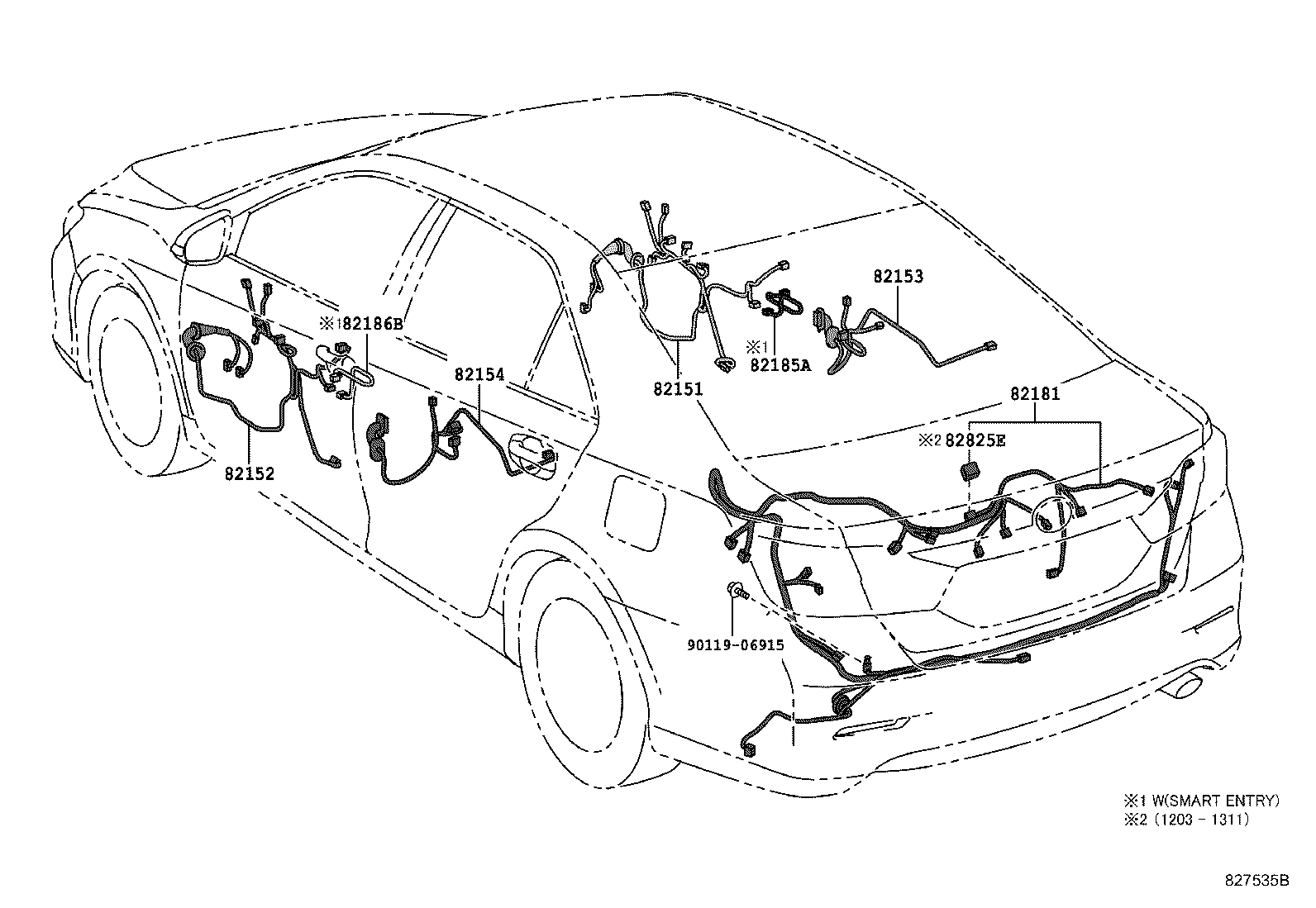

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-33C60 |
AVV50,GSV50..JPP..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-33D10 |
AVV50,GSV50..JPP..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-33300 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-33230 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-33450 |
AVV50 |
1 | ||
| 82181-33451 |
AVV50 |
1 | ||
| 82185A - WIRE, SMART DOOR, FRONT RH | ||||
| 82185-33090 |
AVV50,GSV50..JPP |
1 | ||
| 82186B - WIRE, SMART DOOR, FRONT LH | ||||
| 82186-33020 |
AVV50,GSV50..JPP |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30220 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 7 OF11(1108- )ASV50,AVV50,GSV50 ; (1208-1411)ACV51; (1503- )ASV51
Click highlighted areas on diagram

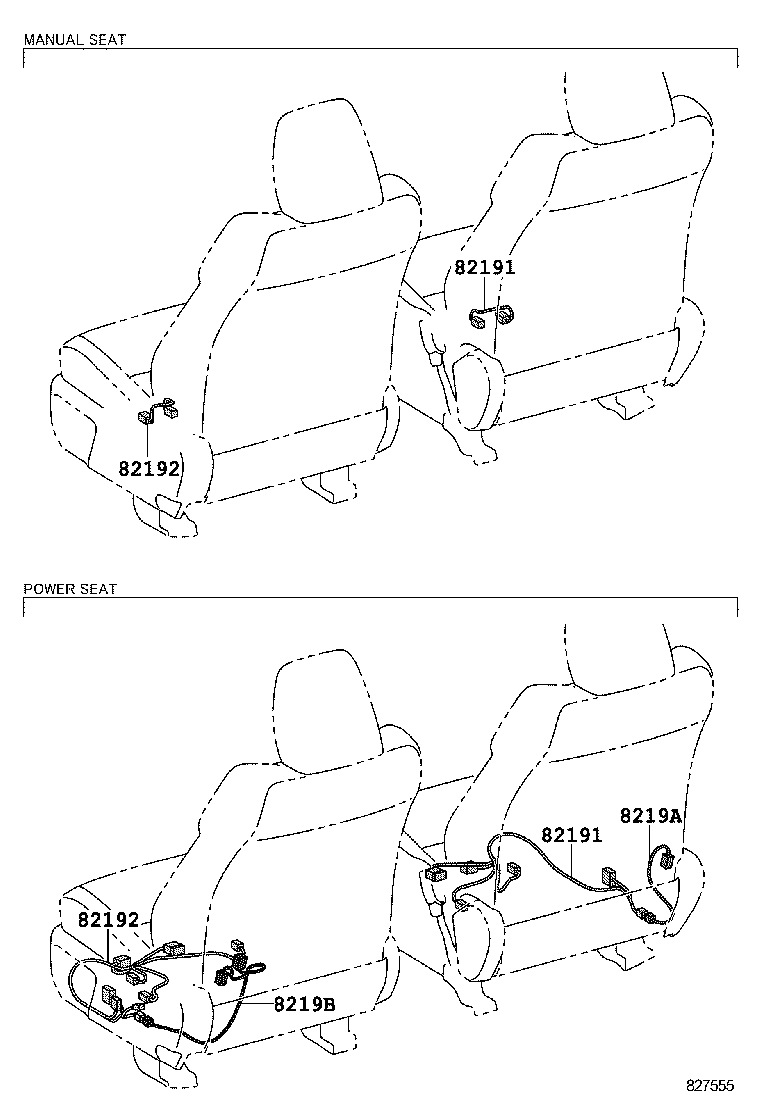

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-33640 |
AVV50..LHD;GSV50..RUS |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-33640 |
AVV50..LHD;GSV50..RUS |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-33560 |
AVV50..LHD;GSV50..RUS |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-33560 |
AVV50..LHD;GSV50..RUS |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-33020 |
AVV50,GSV50..LHD |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-33020 |
AVV50,GSV50..LHD |
1 | ||
ILLUST NO.10 OF11(1108- )ACV51,ASV50,AVV50,GSV50
Click highlighted areas on diagram

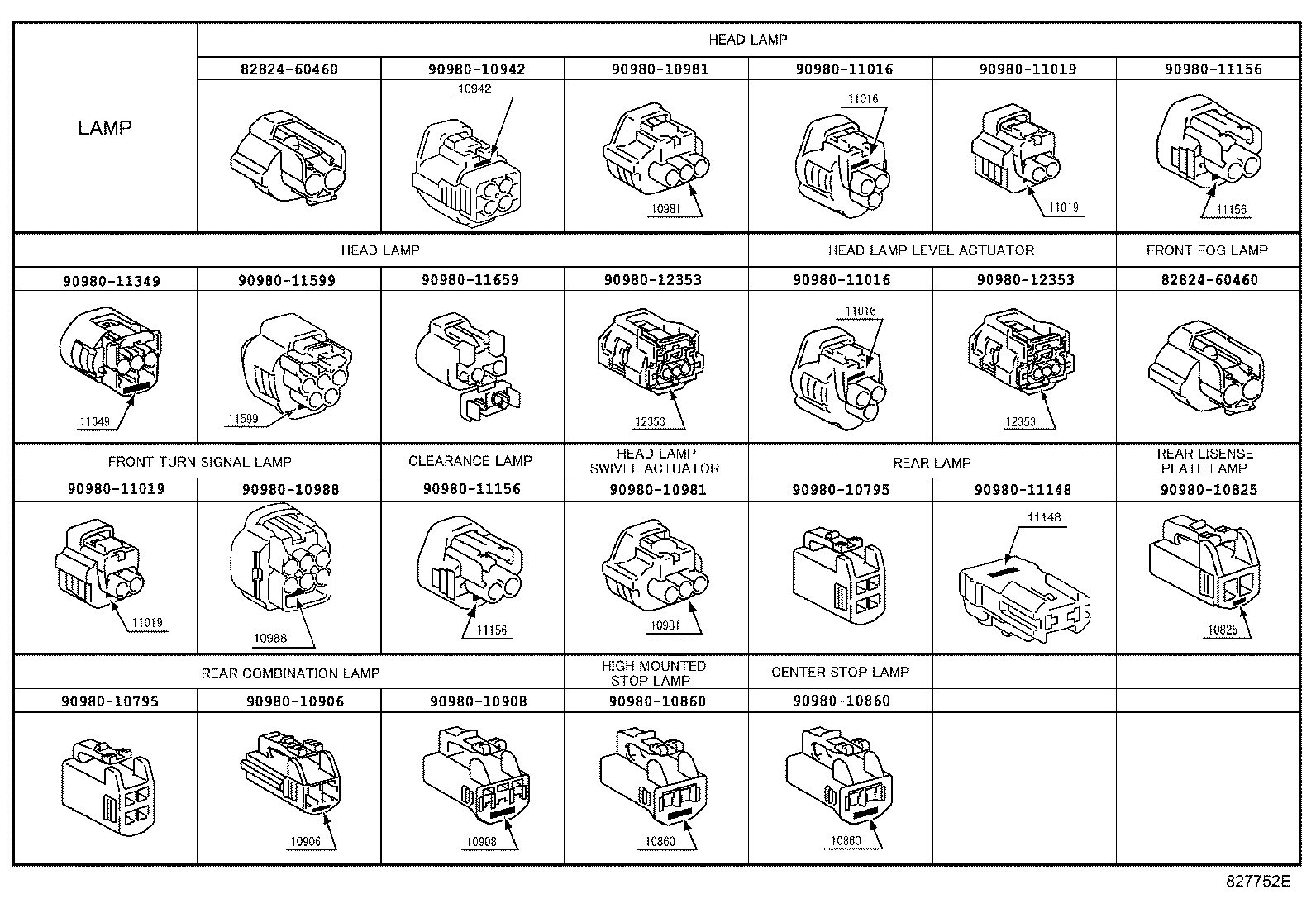

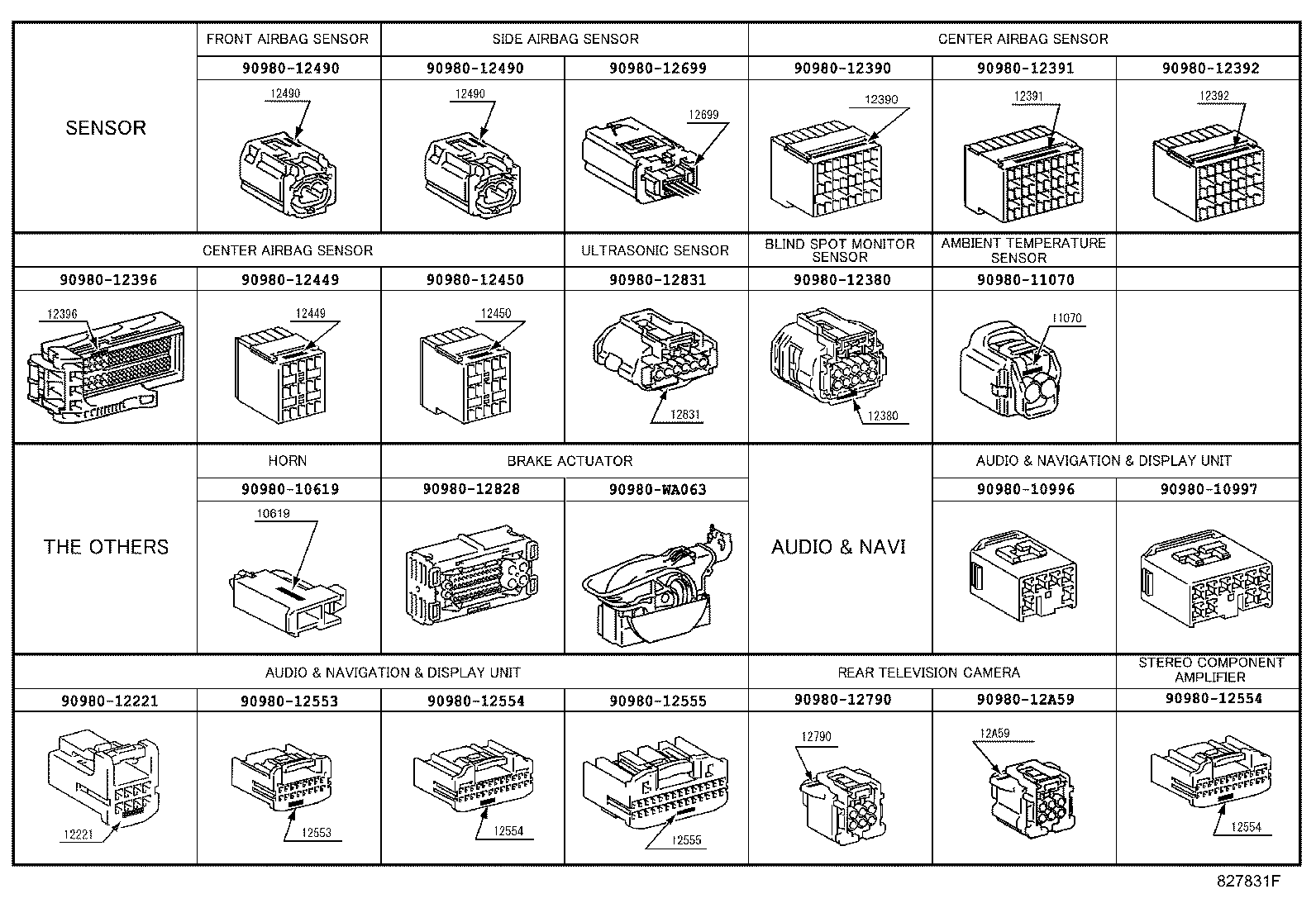

CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-10981 | ||||
| 90980-10988 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11349 | ||||
| 90980-11599 | ||||
| 90980-11659 | ||||
| 90980-12353 | ||||
ILLUST NO.11 OF11(1108- )ACV51,ASV50,AVV50,GSV50
Click highlighted areas on diagram
CONNECTER 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12221 | ||||
| 90980-12380 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12396 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12828 | ||||
| 90980-12831 | ||||
| 90980-12A59 | ||||
| 90980-WA063 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
