ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )ASV51

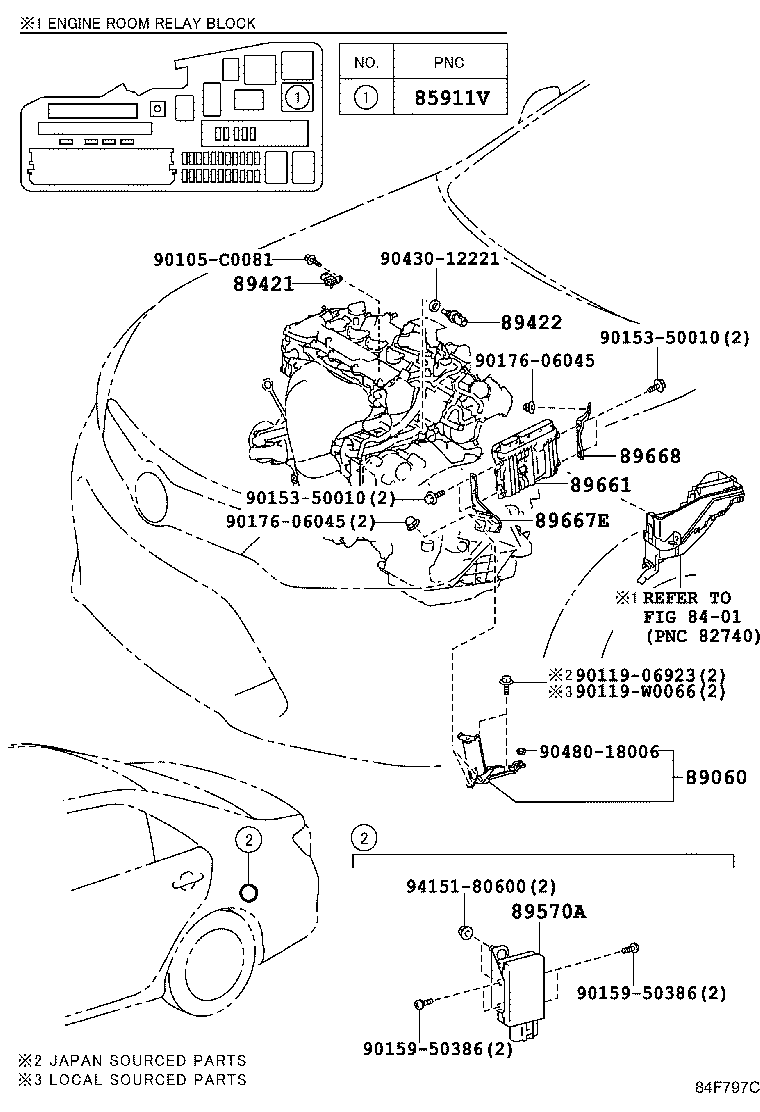

Click highlighted areas on diagram

diagram 8401 85911V 89060 89421 89422 89570A 89661 89667E 89668 90105C0081 9011906923 90119W0066 9015350010 9015350010 9015950386 9015950386 9017606045 9017606045 9043012221 9048018006 9415180600
Part # Description Qty Price
85911V - RELAY, ELECTRONIC DRIVER UNIT
90987-02027

ASV51

 1
89060 - BRACKET ASSY
89060-06010

ASV51

 1
89661 - COMPUTER, ENGINE CONTROL
89661-06U40

ASV51

 1
89661-0X480

ASV51

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-06140

ASV51

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-06140

ASV51

 1
Common parts
90105-C0081
90119-06923
90119-W0066
90153-50010
90159-50386
90176-06045
90430-12221
90480-18006
94151-80600
Linked diagrams
8401
