ASV51L-RETNHX (2015)
Toyota Camry/Hybrid
Production
Mar 2015
-
Mar 2018
Engine
6ARFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108-1704)ASV5#,GSV50..RUP ; (1108- )ACV51,AVV50 ; (1108- )ASV50,GSV50..JPP

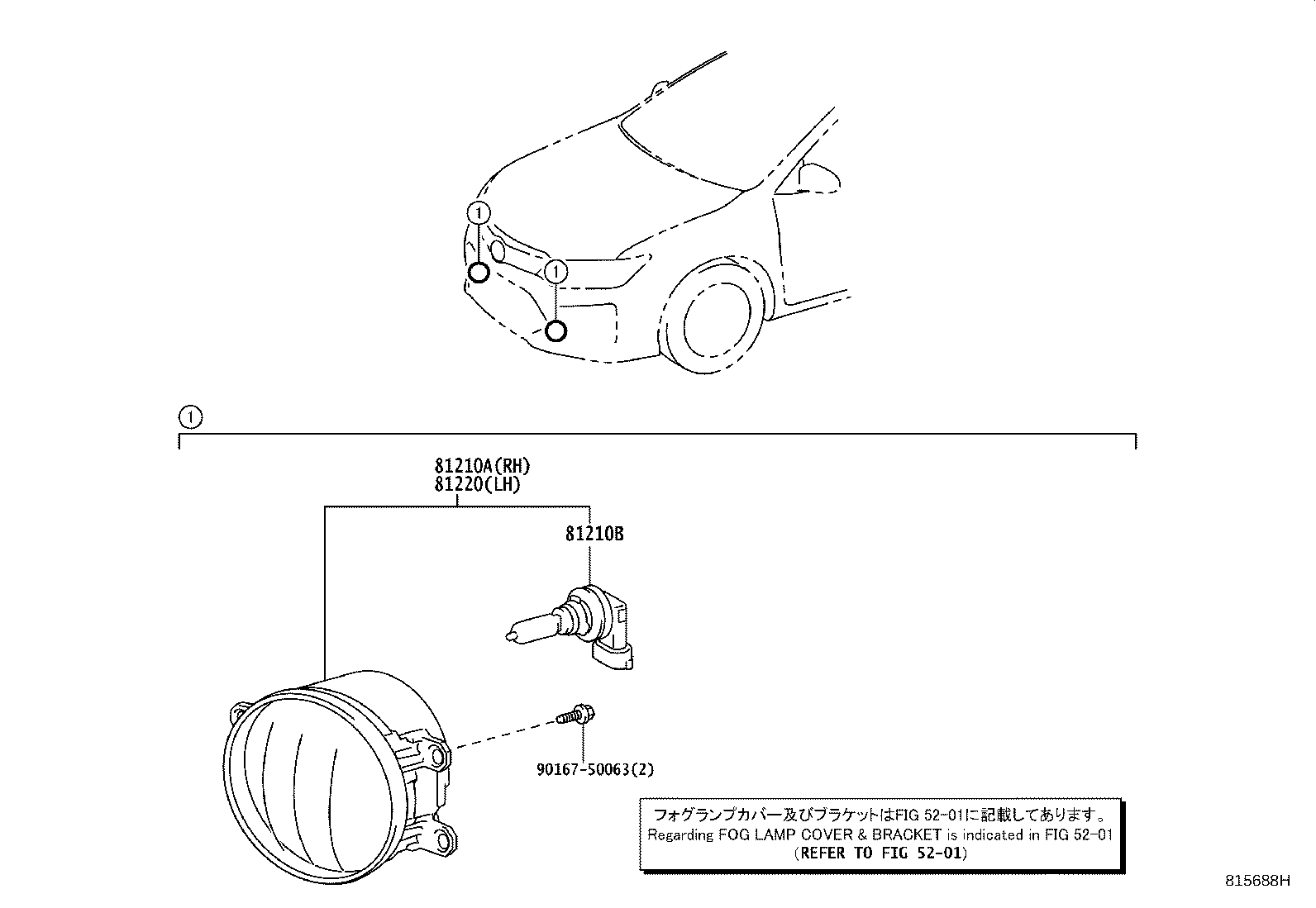

Click highlighted areas on diagram
BULB TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-48051 |
ASV5#,GSV50 LED TYPE |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-48051 |
ASV5#,GSV50 LED TYPE |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5201 | ||||
(1704- )
Click highlighted areas on diagram
LED TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-48051 |
ASV5#,GSV50 LED TYPE |
1 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 81219-48051 |
ASV5#,GSV50 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-48051 |
ASV5#,GSV50 LED TYPE |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 81229-48051 |
ASV5#,GSV50 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5201 | ||||
