ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )ACV51,ASV5#..LHD

Click highlighted areas on diagram

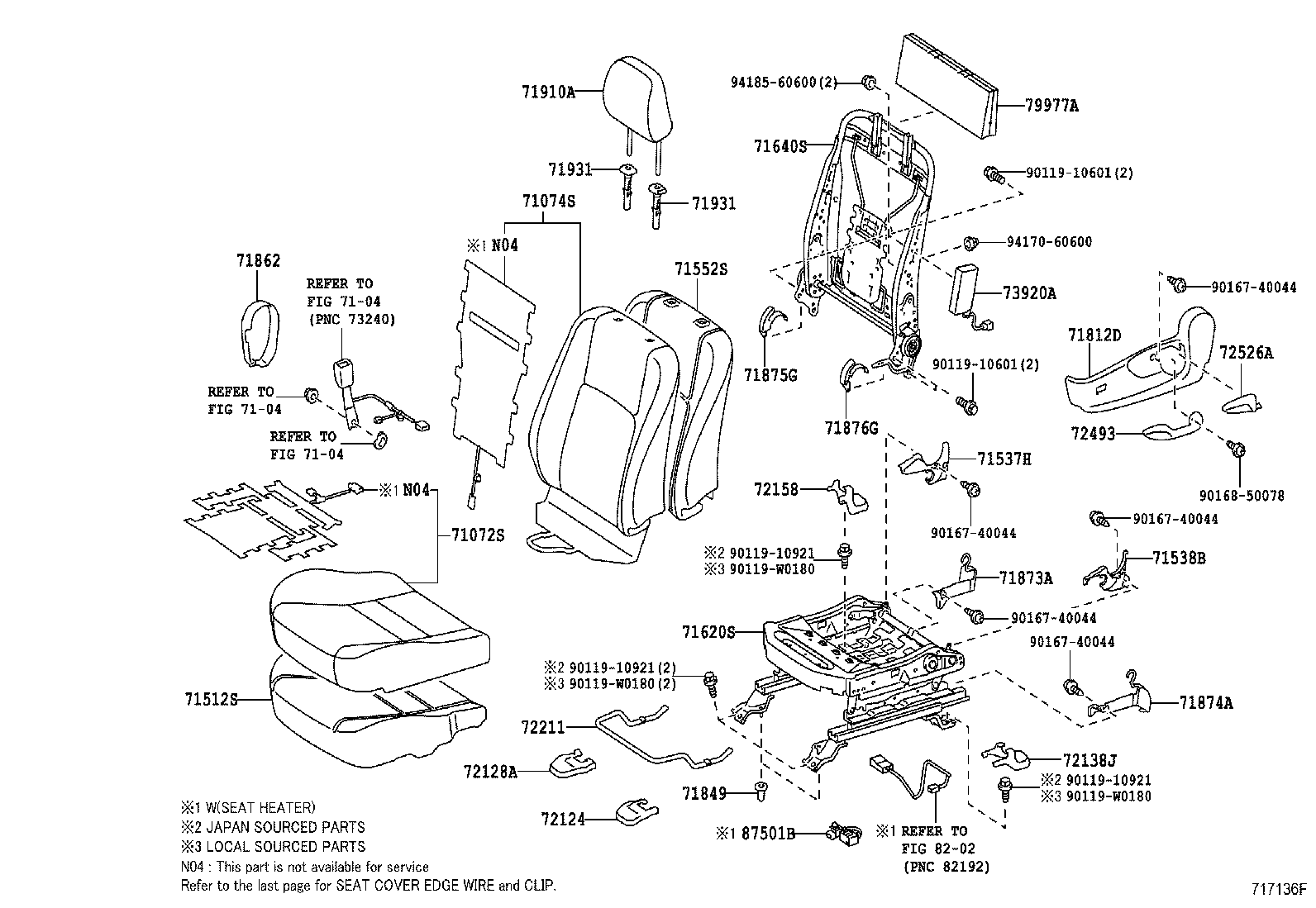

DRIVER SEAT

diagram 7104 7104 7104 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71640S 71812D 71849 71862 71873A 71874A 71875G 71876G 71910A 71931 71931 72124 72128A 72138J 72158 72211 72493 72526A 73920A 79977A 8202 87501B 9011910601 9011910601 9011910921 9011910921 9011910921 90119W0180 90119W0180 90119W0180 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9417060600 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-33N50C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-33P40C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-33331

ASV5#..RUP

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-47010A4

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-47010A4

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-33081

ASV51

*PSE(*DRP) & LEATHER PACKAGE

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-33080A1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-06C80C2

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71910-06C81C3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
Common parts
90119-10601
90119-10921
90119-W0180
90167-40044
90168-50078
94170-60600
94185-60600
Linked diagrams
7104
8202

(1108- )LHD

Click highlighted areas on diagram

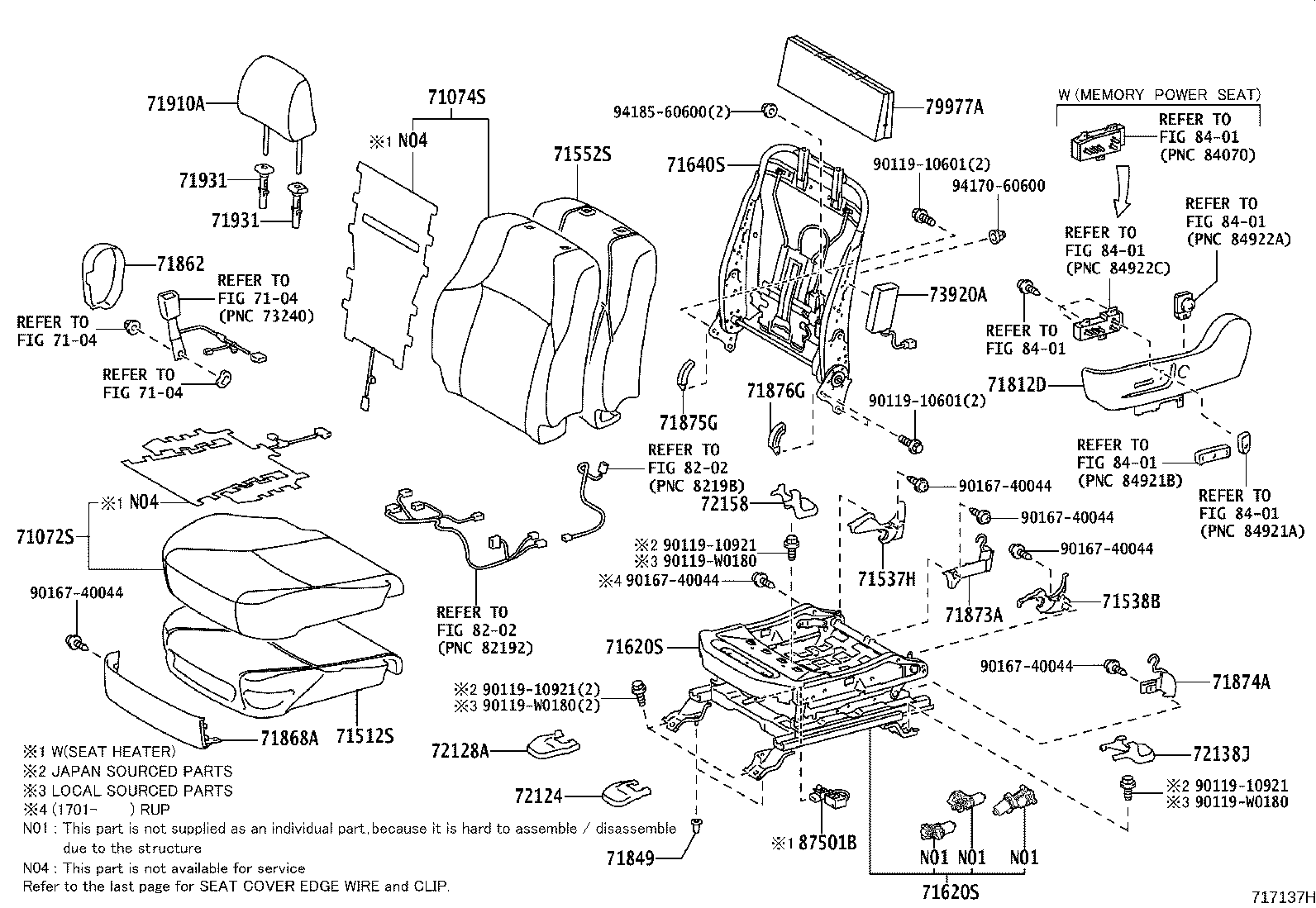

DRIVER SEAT-W(POWER SEAT)

diagram 7104 7104 7104 71072S 71074S 71512S 71537H 71538B 71552S 71620S 71620S 71640S 71812D 71849 71862 71868A 71873A 71874A 71875G 71876G 71910A 71931 71931 72124 72128A 72138J 72158 73920A 79977A 8202 8202 8401 8401 8401 8401 8401 8401 87501B 9011910601 9011910601 9011910921 9011910921 9011910921 90119W0180 90119W0180 90119W0180 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9417060600 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-33N50C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-33P40C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-33331

ASV5#..RUP

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-47010A4

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-47010A4

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-33081

ASV51

*PSE(*DRP) & LEATHER PACKAGE

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-33081

ASV51

*PSE(*DRP) & LEATHER PACKAGE

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-33080A1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-06C80C2

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71910-06C81C3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
Common parts
90119-10601
90119-10921
90119-W0180
90167-40044
94170-60600
94185-60600
Linked diagrams
7104
8202
8401

(1108- )ACV51,ASV5#..LHD

Click highlighted areas on diagram

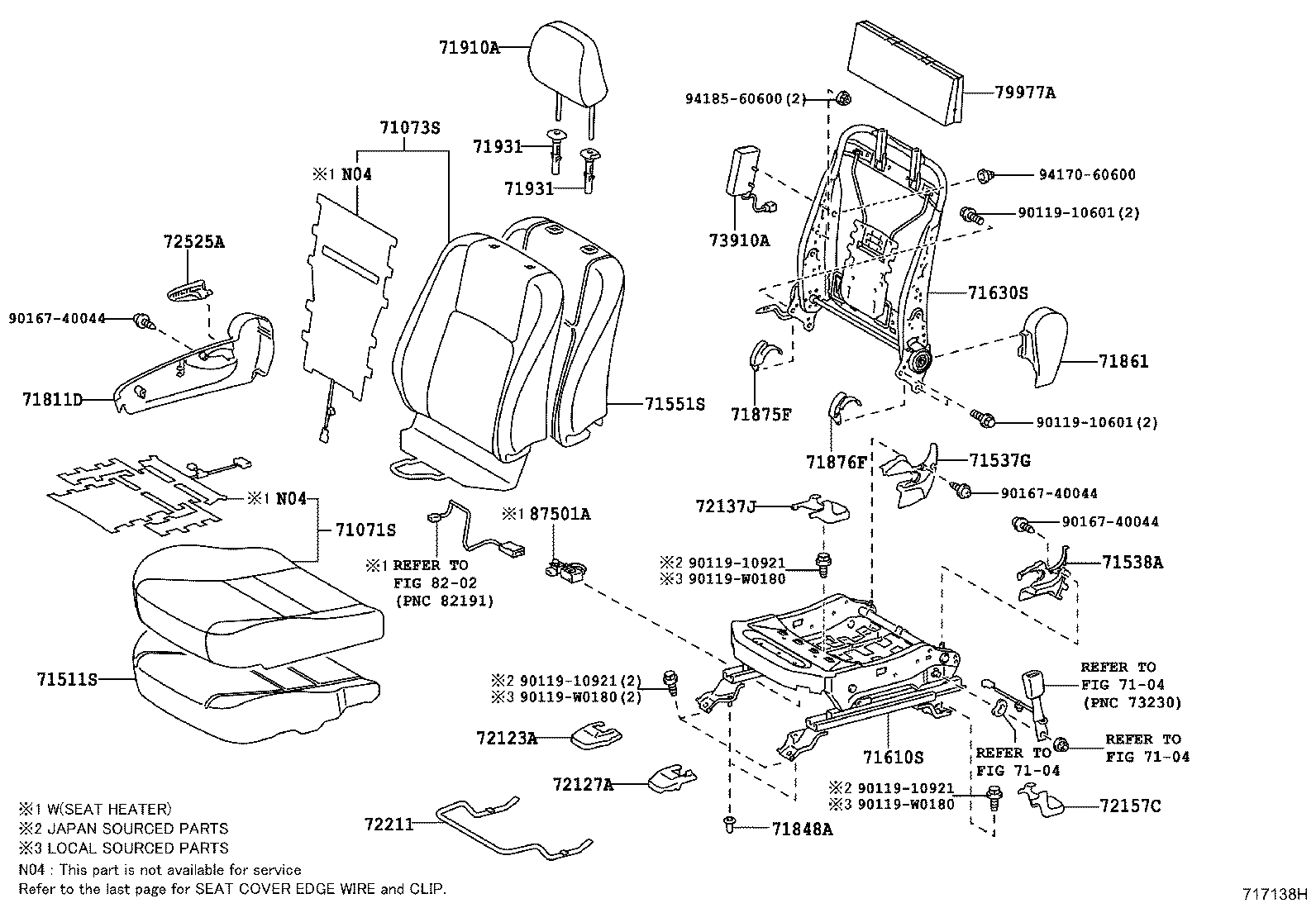

PASSENGER SEAT

diagram 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71610S 71630S 71811D 71848A 71861 71875F 71876F 71910A 71931 71931 72123A 72127A 72137J 72157C 72211 72525A 73910A 79977A 8202 87501A 9011910601 9011910601 9011910921 9011910921 9011910921 90119W0180 90119W0180 90119W0180 9016740044 9016740044 9016740044 9417060600 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-33N10C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-33Q40C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33331

ASV5#..RUP

 1
71511-33431

ASV51

*PSE(*DRP) & LEATHER PACKAGE

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-47020A3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-60030A3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-33061

ASV51

*PSE(*DRP) & LEATHER PACKAGE

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-33150A1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-06C80C2

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71910-06C81C3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47010C1

ASV5#

BLACK,TRIM2#

 1
Common parts
90119-10601
90119-10921
90119-W0180
90167-40044
94170-60600
94185-60600
Linked diagrams
7104
8202

(1108- )LHD

Click highlighted areas on diagram

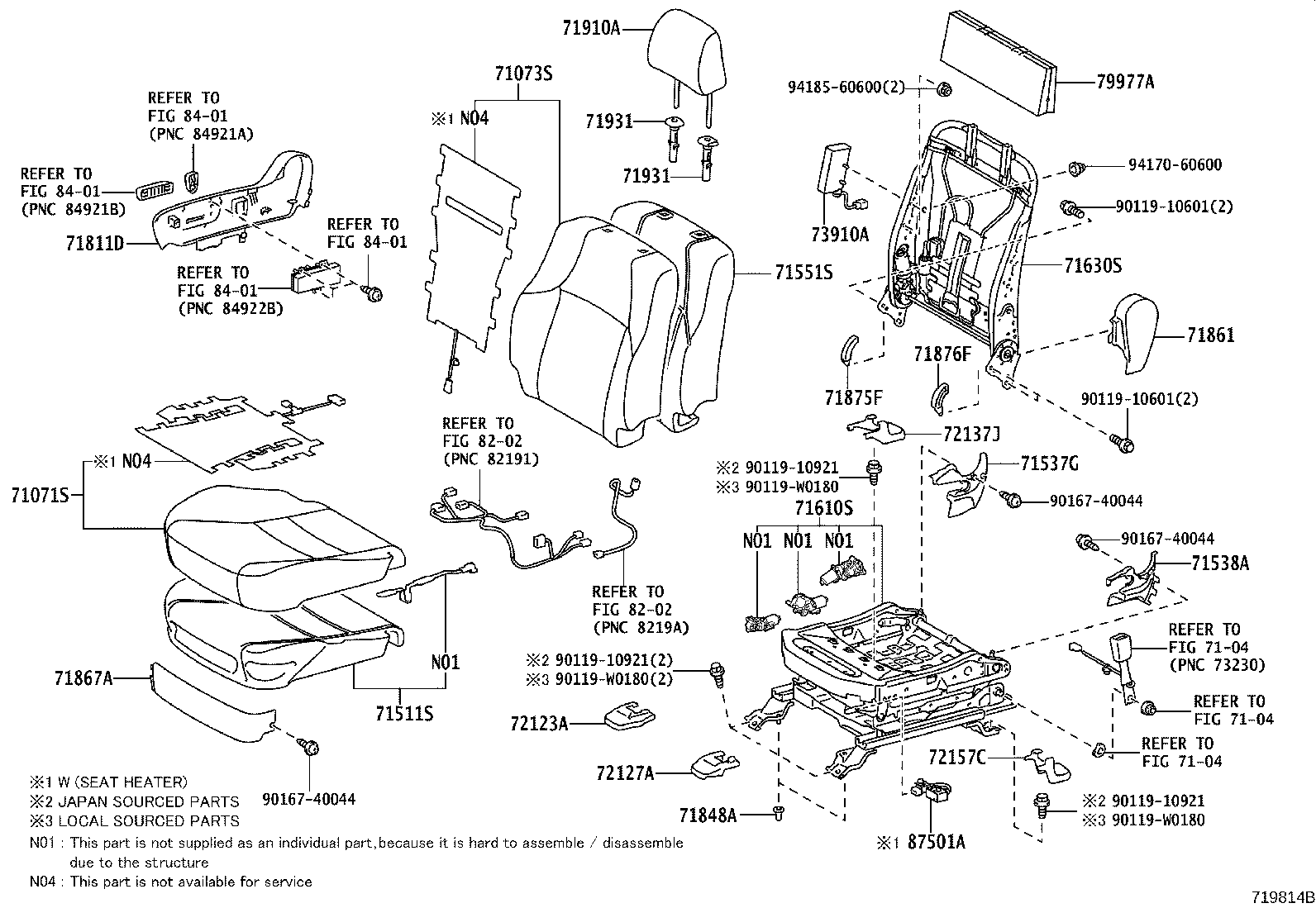

PASSENGER SEAT-W(POWER SEAT)

diagram 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71610S 71630S 71811D 71848A 71861 71867A 71875F 71876F 71910A 71931 71931 72123A 72127A 72137J 72157C 73910A 79977A 8202 8202 8401 8401 8401 8401 87501A 9011910601 9011910601 9011910921 9011910921 9011910921 90119W0180 90119W0180 90119W0180 9016740044 9016740044 9016740044 9417060600 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-33N10C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-33Q40C1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-33331

ASV5#..RUP

 1
71511-33431

ASV51

*PSE(*DRP) & LEATHER PACKAGE

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-47020A3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-60030A3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-33061

ASV51

*PSE(*DRP) & LEATHER PACKAGE

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-33150A1

ASV51

*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-06C80C2

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71910-06C81C3

ASV51

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020A7

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71930-47020C0

ASV51

W(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71931-47020C0

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 2
71930-47020C0

ASV51

W(LOCK),BLACK,TRIM2#

 1
71931-47020A7

ASV51

W/O(LOCK),*PSE(*DRP) & LEATHER PACKAGE,FLAXEN,TRIM0#

 2
71931-47020C0

ASV51

W/O(LOCK),BLACK,TRIM2#

 1
71930-47020C4

ASV51,GSV50

W(LOCK),BLACK,TRIM2#

 1
71931-47020C4

ASV51,GSV50

W/O(LOCK),BLACK,TRIM2#

 1
Common parts
90119-10601
90119-10921
90119-W0180
90167-40044
94170-60600
94185-60600
Linked diagrams
7104
8202
8401
