ASV51L-RETNHX (2015)
Toyota Camry/Hybrid
Production
Mar 2015
-
Mar 2018
Engine
6ARFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1602- )RUP

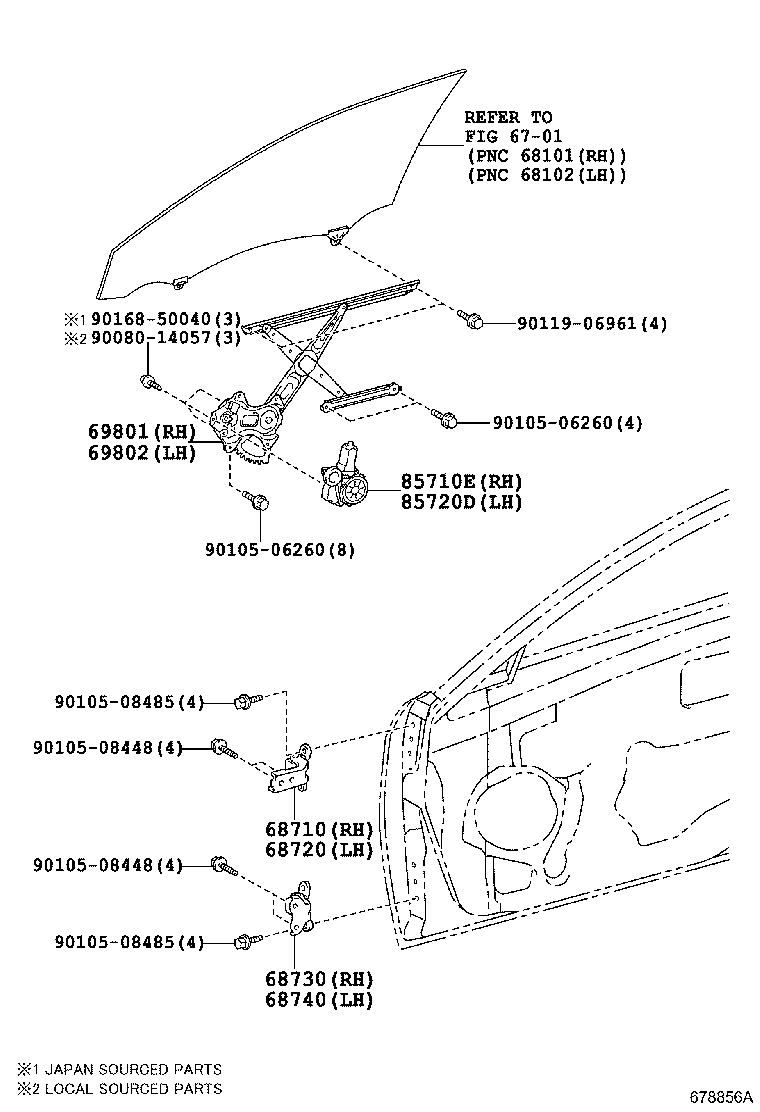

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-52130 |
ASV5#,GSV50..RUP |
1 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-60310 |
ASV5#,GSV50..RUP |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-60310 |
ASV5#,GSV50..RUP |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90105-08448 | ||||
| 90105-08485 | ||||
| 90119-06961 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6701 | ||||
(1108-1602)ASV5#,GSV50..RUP ; (1108- )ACV51,AVV50 ; (1108- )ASV50,GSV50..JPP

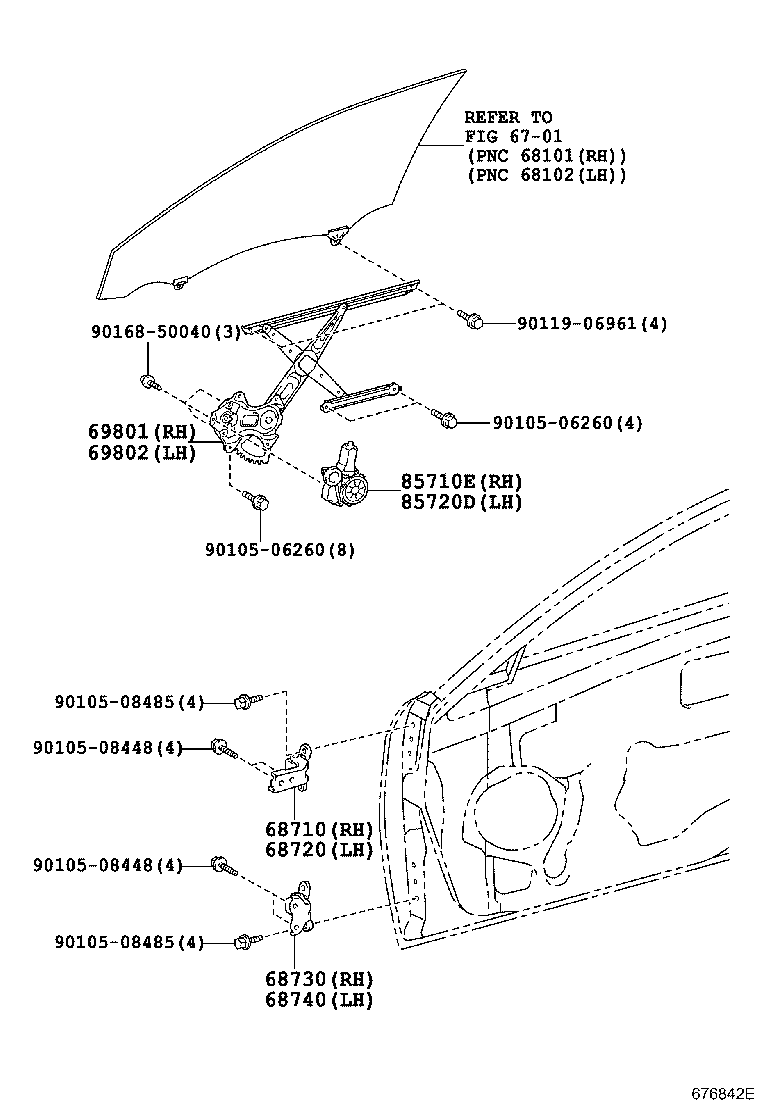

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-52130 |
ASV5#,GSV50..RUP |
1 | ||
| 85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85710-60310 |
ASV5#,GSV50..RUP |
1 | ||
| 85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85720-60310 |
ASV5#,GSV50..RUP |
1 | ||
| Common parts | ||||
| 90080-14057 | ||||
| 90105-06260 | ||||
| 90105-08448 | ||||
| 90105-08485 | ||||
| 90119-06961 | ||||
| 90168-50040 | ||||
| Linked diagrams | ||||
| 6701 | ||||
