ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

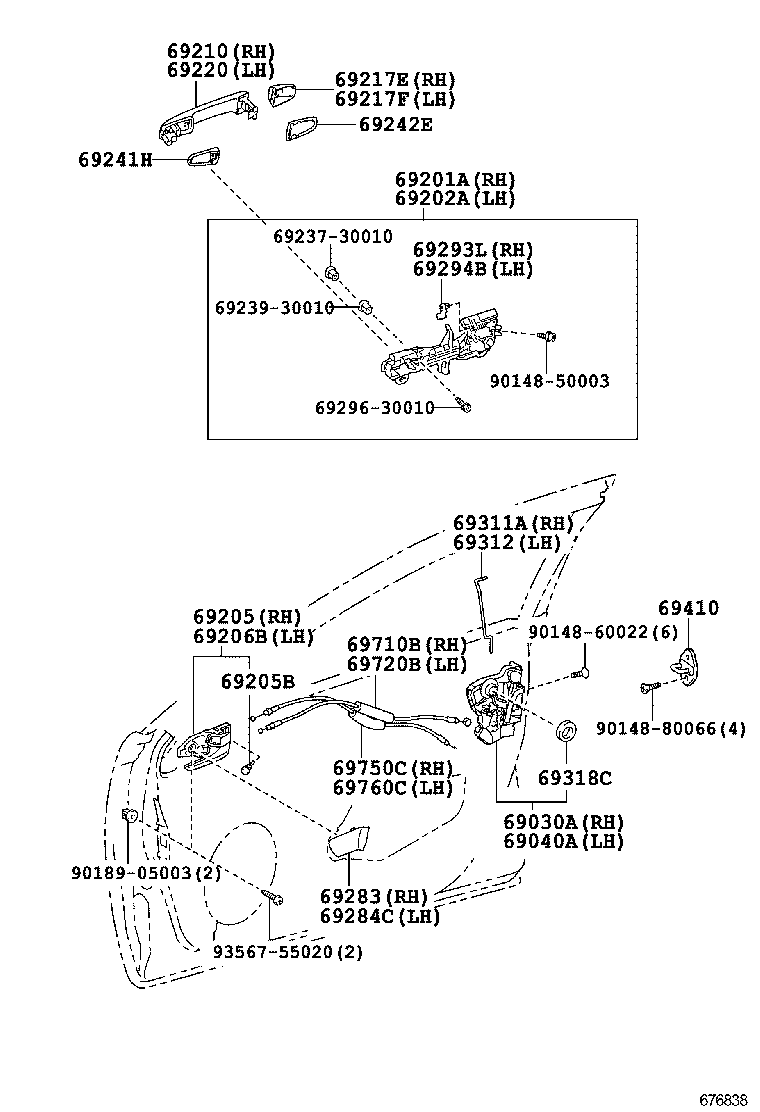

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217E 69217F 69220 6923730010 6923930010 69241H 69242E 69283 69284C 69293L 69294B 6929630010 69311A 69312 69318C 69410 69710B 69720B 69750C 69760C 9014850003 9014860022 9014880066 9018905003 9356755020
Part # Description Qty Price
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-52100E0

ASV5#

DK. BROWN M.M.,4U3

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-52040E0

ASV5#

DK. BROWN M.M.,4U3

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-52030E0

ASV5#

DK. BROWN M.M.,4U3

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-52100E0

ASV5#

DK. BROWN M.M.,4U3

 1
Common parts
69237-30010
69239-30010
69296-30010
90148-50003
90148-60022
90148-80066
90189-05003
93567-55020
