ASV51L-RETNHX (2015)
Toyota Camry/Hybrid

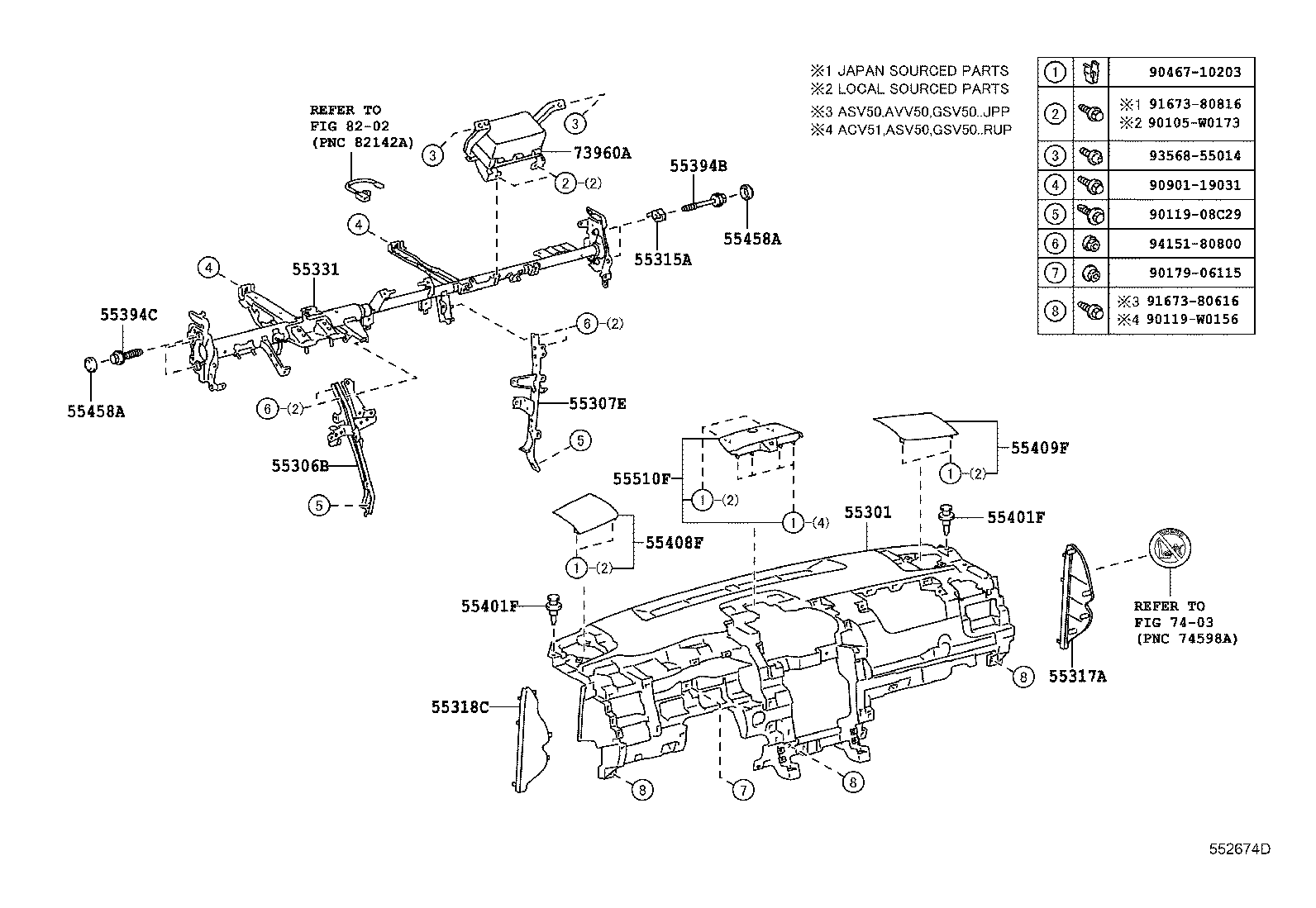

ILLUST NO. 1 OF 2(1108- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-06320C1 |
ASV51 EU BLACK,TRIM2# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-33080C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55317-06170C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-06170C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55318-33070C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-06130C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55472-33110C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-06130C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55473-33060C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-33020C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55510-06080C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| Common parts | ||||
| 90105-W0173 | ||||
| 90119-08C29 | ||||
| 90119-W0156 | ||||
| 90179-06115 | ||||
| 90467-10203 | ||||
| 90901-19031 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||

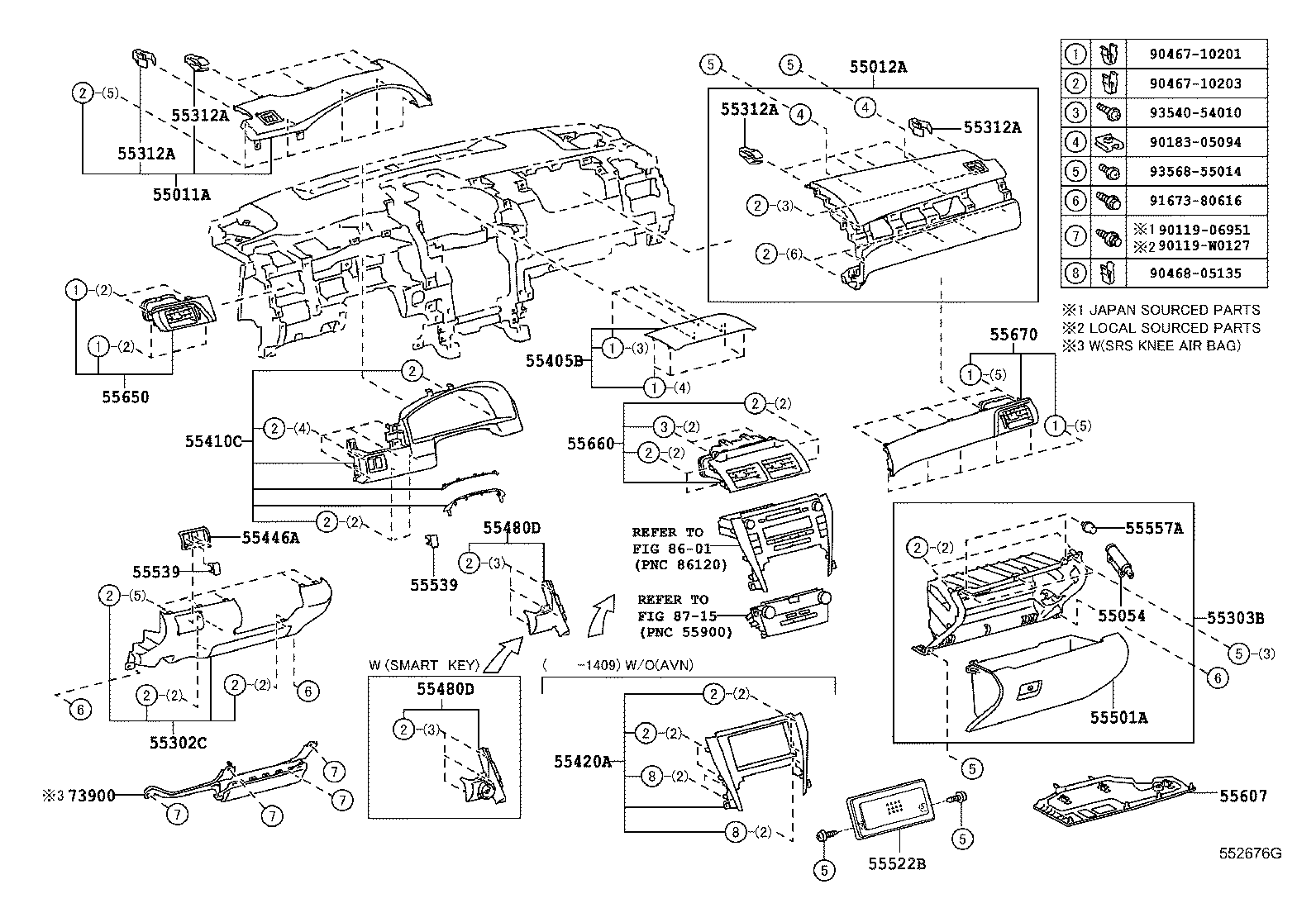

ILLUST NO. 2 OF 2(1108- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-33030C0 |
ASV51 BLACK,TRIM2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-33030C0 |
ASV51 BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-06120C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55405-33260C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33060C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55410-06130C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-06060A0 |
ASV5#,GSV50..RUP FLAXEN,TRIM0#,(L) |
1 | ||
| 55446-33270C0 |
ASV51,GSV50..RUP BLACK,TRIM2#,(J) |
1 | ||
| 55446-06060C0 |
ASV51,GSV50..RUP BLACK,TRIM2#,(L) |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-06370C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55480-33140C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-06370C0 |
ASV51,GSV50..RUP BLACK,TRIM0#,2#,(L) |
1 | ||
| 55480-33140C0 |
ASV51 BLACK,TRIM2#,(J) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
ASV51;ASV50,AVV50,GSV50..JPP BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
ASV51;ASV50,AVV50,GSV50..JPP BLACK,TRIM2# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-3T031 |
ASV5#,GSV50..RUP (J) |
1 | ||
| 55607-06280 |
ASV5#,GSV50..RUP (L) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33202C1 |
ASV51 BLACK,TRIM0#,2# |
1 | ||
| 55650-33470C0 |
ASV51 BLACK,TRIM2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33400E0 |
ASV51 SHELL,TRIM2# |
1 | ||
| 55670-33212E0 |
ASV51 SHELL,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-W0127 | ||||
| 90183-05094 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 91673-80616 | ||||
| 93540-54010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8715 | ||||
