ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )

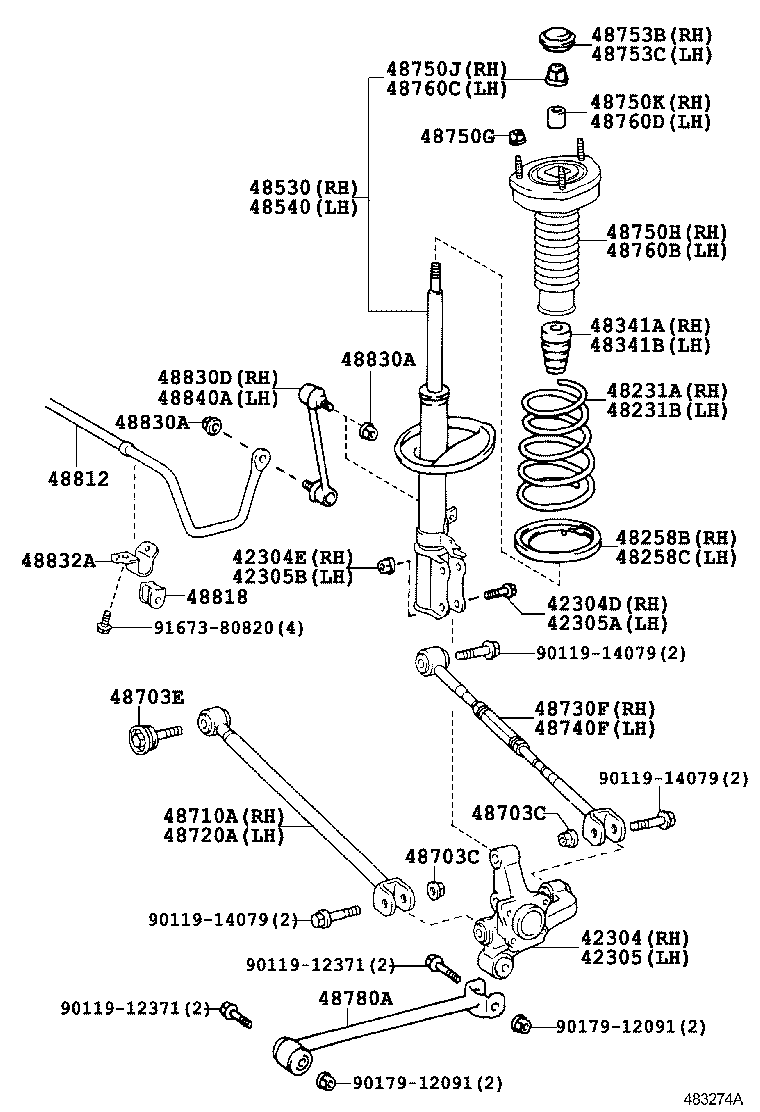

Click highlighted areas on diagram

diagram 42304 42304D 42304E 42305 42305A 42305B 48231A 48231B 48258B 48258C 48341A 48341B 48530 48540 48703C 48703C 48703E 48710A 48720A 48730F 48740F 48750G 48750H 48750J 48750K 48753B 48753C 48760B 48760C 48760D 48780A 48812 48818 48830A 48830A 48830D 48832A 48840A 9011912371 9011912371 9011914079 9011914079 9011914079 9017912091 9017912091 9167380820
Part # Description Qty Price
42304D - BOLT (FOR REAR AXLE CARRIER RH)
90109-15001

ASV5#,AVV50,GSV50

 2
42305A - BOLT (FOR REAR AXLE CARRIER LH)
90109-15001

ASV5#,AVV50,GSV50

 2
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-32054

ASV5#,AVV50,GSV50

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-32054

ASV5#,AVV50,GSV50

 1
48818 - BUSH, STABILIZER, REAR
48818-33101

ASV5#,GSV50..RUP

 2
48818-33102

ASV5#,GSV50..RUP

 2
Common parts
90119-12371
90119-14079
90179-12091
91673-80820
