ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )ASV5#

Click highlighted areas on diagram

U760E,U761E

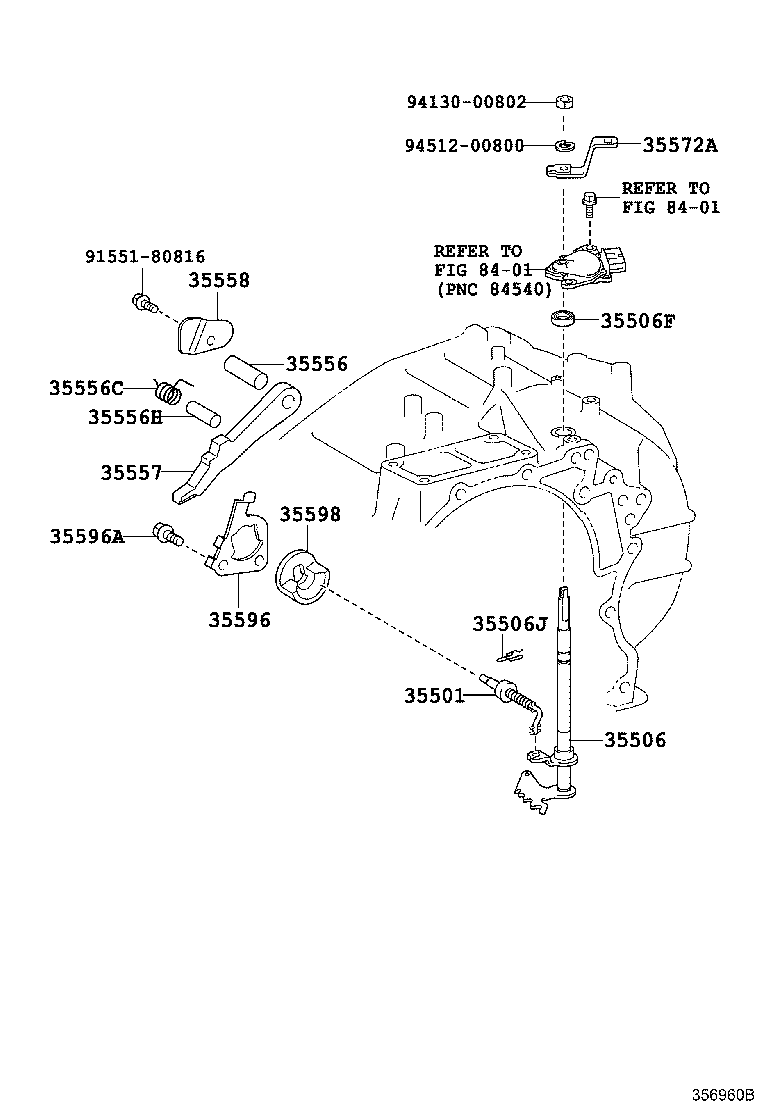

diagram 35501 35506 35506F 35506J 35556 35556C 35556H 35557 35558 35572A 35596 35596A 35598 8401 8401 9155180816 9413000802 9451200800
Part # Description Qty Price
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506-33011

ASV51

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-33020

ASV51

 1
35556H - SHAFT, PARKING LOCK PAWL
35556-33030

ASV51

 1
35558 - CLAMP, PAWL SHAFT
35558-33020

ASV51

 1
Common parts
91551-80816
94130-00802
94512-00800
Linked diagrams
8401
