ASV51L-RETNHX (2015)
Toyota Camry/Hybrid
Production
Mar 2015
-
Mar 2018
Engine
6ARFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )ASV5#,GSV50

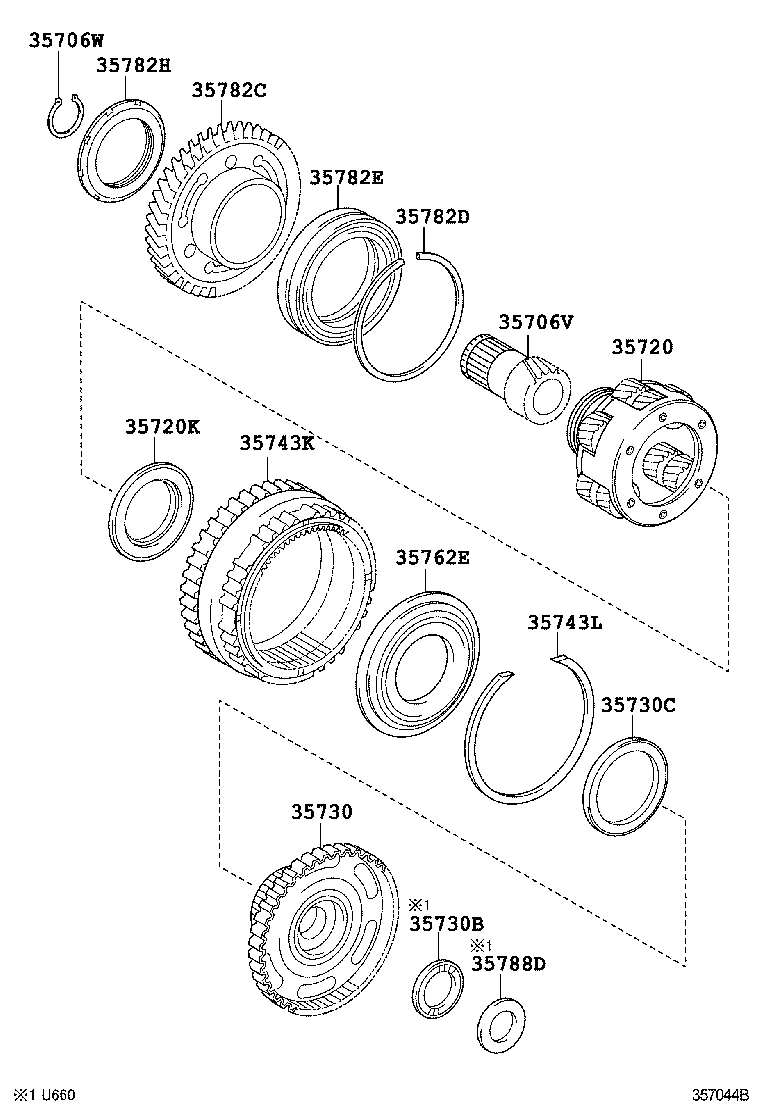

Click highlighted areas on diagram
U660E,U760E,U761E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-33070 |
ASV51 |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-33030 |
ASV51 |
1 | ||
| 35743K - GEAR, PLANETARY RING | ||||
| 35743-33040 |
ASV51 |
1 | ||
| 35782C - GEAR, COUNTER DRIVE | ||||
| 35782-33040 |
ASV51 |
1 | ||
