ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )ASV5#

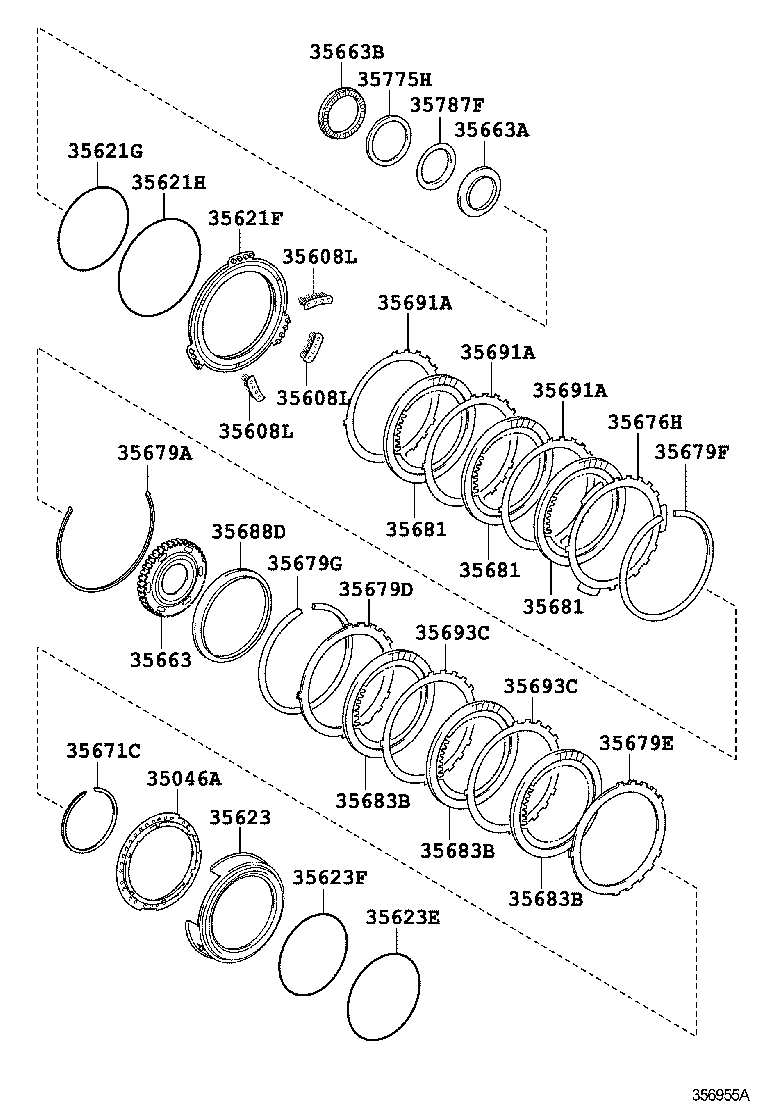

Click highlighted areas on diagram

U760E,U761E

diagram 35046A 35608L 35608L 35608L 35621F 35621G 35621H 35623 35623E 35623F 35663 35663A 35663B 35671C 35676H 35679A 35679D 35679E 35679F 35679G 35681 35681 35681 35683B 35683B 35683B 35688D 35691A 35691A 35691A 35693C 35693C 35775H 35787F
Part # Description Qty Price
35621F - PISTON, BRAKE, NO.1
35621-33030

ASV51

 1
35623 - PISTON, BRAKE, NO.3
35623-33090

ASV51

 1
35663 - HUB, BRAKE NO.3
35663-33030

ASV51

 1
35679D - FRANGE, BRAKE, NO.2
35679-33080

ASV51

 1
35681 - DISC, BRAKE, NO.1
35683-33040

ASV51

 3
35681 - DISC, BRAKE, NO.1
35683-33040

ASV51

 3
35681 - DISC, BRAKE, NO.1
35683-33040

ASV51

 3
35683B - DISC, BRAKE, NO.3
35683-33040

ASV51

 3
35683B - DISC, BRAKE, NO.3
35683-33040

ASV51

 3
35683B - DISC, BRAKE, NO.3
35683-33040

ASV51

 3
