ASV51L-RETNHX (2015)
Toyota Camry/Hybrid
Production
Mar 2015
-
Mar 2018
Engine
6ARFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108-1510)ASV5#,GSV50..LHD

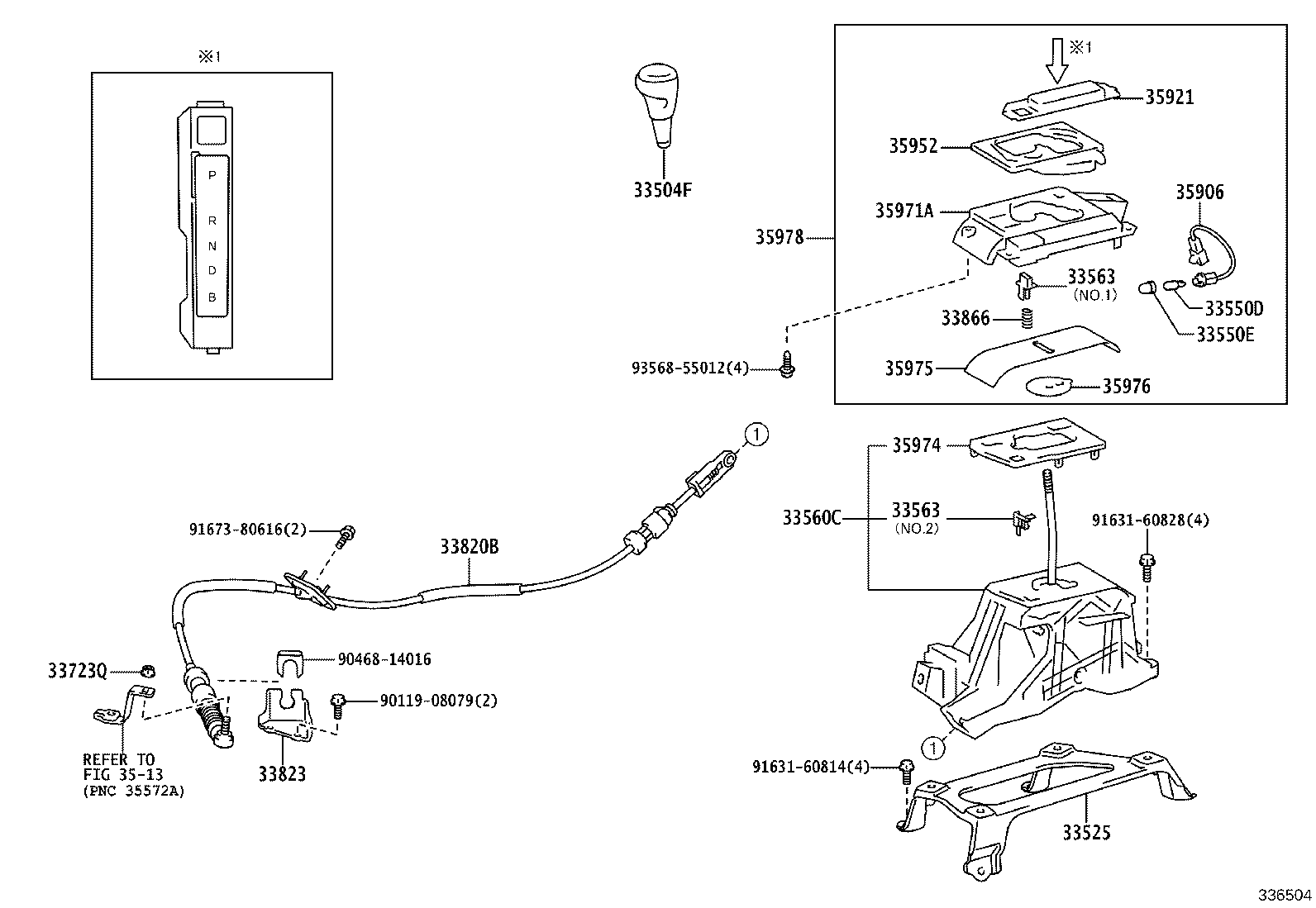

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12360E1 |
ASV51 SHELL & BLACK,TRIM2# |
1 | ||
| 33504-33121E2 |
ASV51 SHELL & BLACK,TRIM2# |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-33281 |
GSV50;ASV5#..RUP |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-33221 |
ASV5#,GSV50..LHD |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90468-14016 | ||||
| 91631-60814 | ||||
| 91631-60828 | ||||
| 91673-80616 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 3513 | ||||
(1510- )ASV5#,GSV50..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12360E1 |
ASV51 SHELL & BLACK,TRIM2# |
1 | ||
| 33504-33121E2 |
ASV51 SHELL & BLACK,TRIM2# |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-33150 |
ASV5#,AVV50,GSV50 |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-33281 |
GSV50;ASV5#..RUP |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-33221 |
ASV5#,GSV50..LHD |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90468-14016 | ||||
| 91631-60814 | ||||
| 91631-60828 | ||||
| 91673-80616 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 3513 | ||||
