ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )6ARFSE

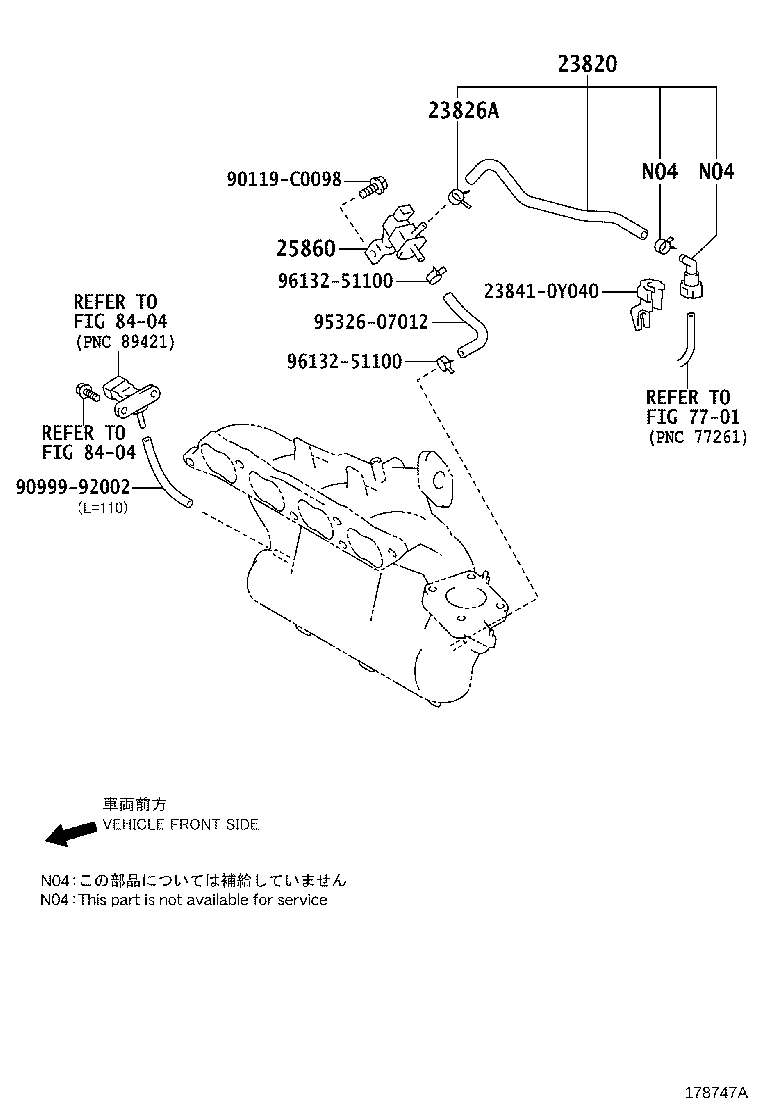

Click highlighted areas on diagram

diagram 23820 23826A 238410Y040 25860 7701 8404 8404 90119C0098 9099992002 9532607012 9613251100 9613251100
Part # Description Qty Price
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-0V210

6ARFSE..ASV51

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51100

6ARFSE..ASV51

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0V150

6ARFSE..ASV51

 1
Common parts
23841-0Y040
90119-C0098
90999-92002
95326-07012
96132-51100
Linked diagrams
7701
8404
