ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )1AZFE,2AR#,6ARFSE

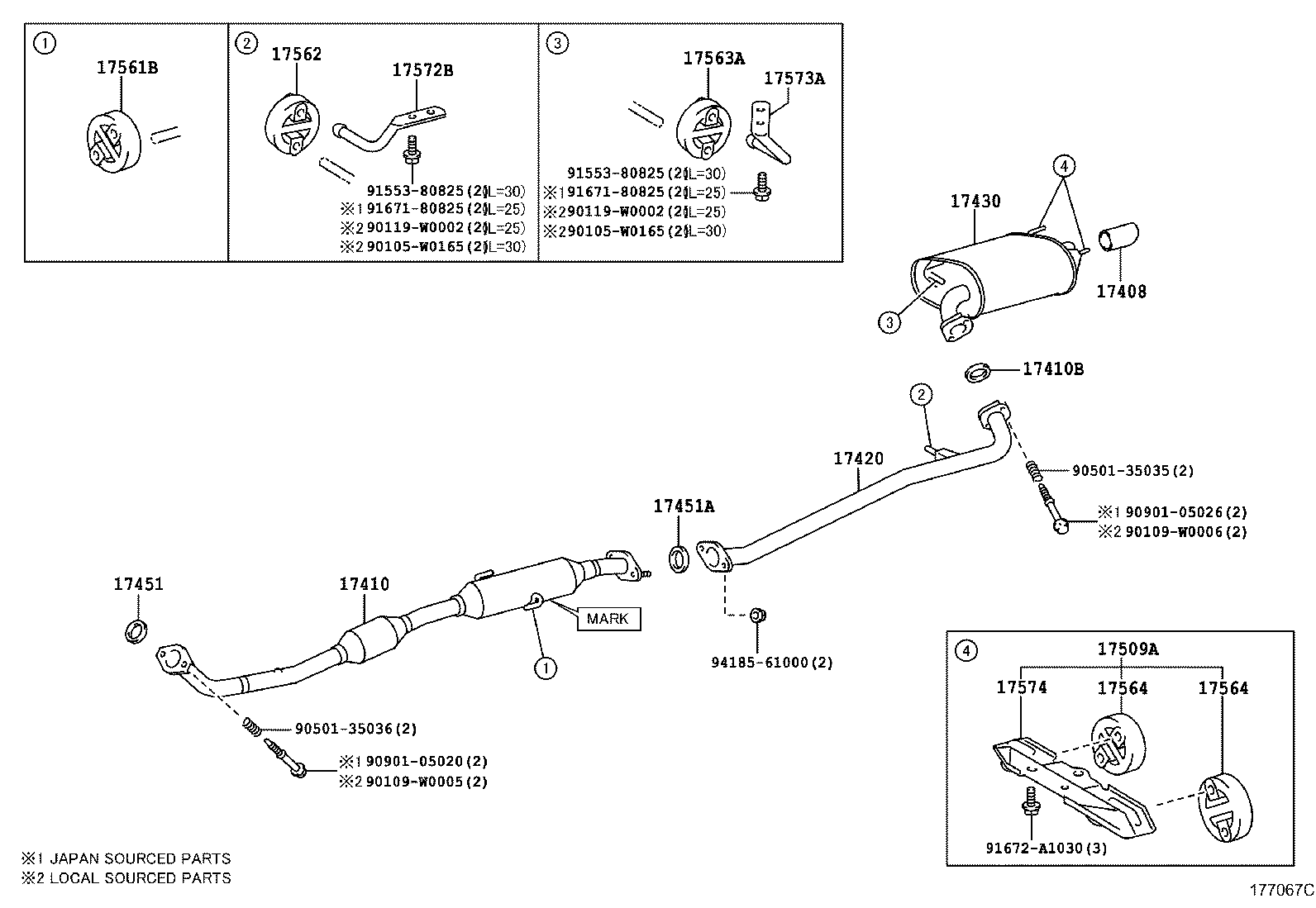

Click highlighted areas on diagram

diagram 17408 17410 17410B 17420 17430 17451 17451A 17509A 17561B 17562 17563A 17564 17564 17572B 17573A 17574 90105W0165 90105W0165 90109W0005 90109W0006 90119W0002 90119W0002 9050135035 9050135036 9090105020 9090105026 9155380825 9155380825 9167180825 9167180825 91672A1030 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0V390

6ARFSE..ASV51

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0V340

6ARFSE..ASV51

 1
Common parts
90105-W0165
90109-W0005
90109-W0006
90119-W0002
90501-35035
90501-35036
90901-05020
90901-05026
91553-80825
91671-80825
91672-A1030
94185-61000
