ASV51L-RETNHX (2015)
Toyota Camry/Hybrid
Production
Mar 2015
-
Mar 2018
Engine
6ARFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1503- )6ARFSE

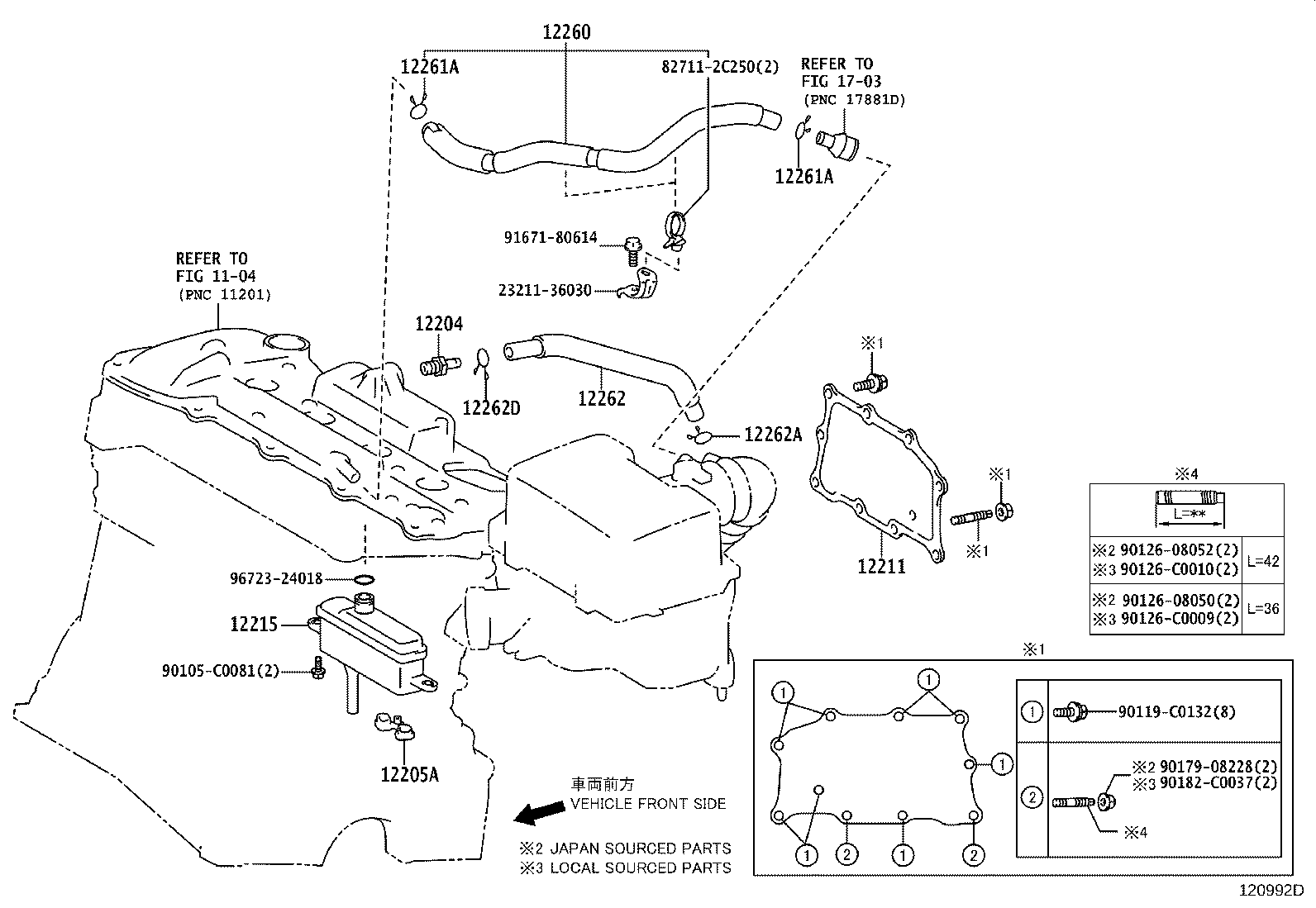

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-0V030 |
6ARFSE..ASV51 |
1 | ||
| 12205A - RING, O(FOR VENTILATION CASE) | ||||
| 12273-0V030 |
6ARFSE..ASV51 |
1 | ||
| 12211 - CASE, VENTILATION, NO.1 | ||||
| 12211-0V030 |
6ARFSE..ASV51 |
1 | ||
| 12215 - SEPARATOR, CASE | ||||
| 12215-0V030 |
6ARFSE..ASV51 |
1 | ||
| 12260 - HOSE ASSY, VENTILATION | ||||
| 12260-36080 |
6ARFSE..ASV51 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-36100 |
6ARFSE..ASV51 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-17126 |
6ARFSE..ASV51 |
1 | ||
| 12262D - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-15120 |
6ARFSE..ASV51 |
1 | ||
| Common parts | ||||
| 23211-36030 | ||||
| 82711-2C250 | ||||
| 90105-C0081 | ||||
| 90119-C0132 | ||||
| 90126-08050 | ||||
| 90126-08052 | ||||
| 90126-C0009 | ||||
| 90126-C0010 | ||||
| 90179-08228 | ||||
| 90182-C0037 | ||||
| 91671-80614 | ||||
| 96723-24018 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1703 | ||||
