ASV51L-RETNHX (2015)

Toyota Camry/Hybrid

Production Mar 2015 - Mar 2018
Engine 6ARFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )2ARFE,6ARFSE

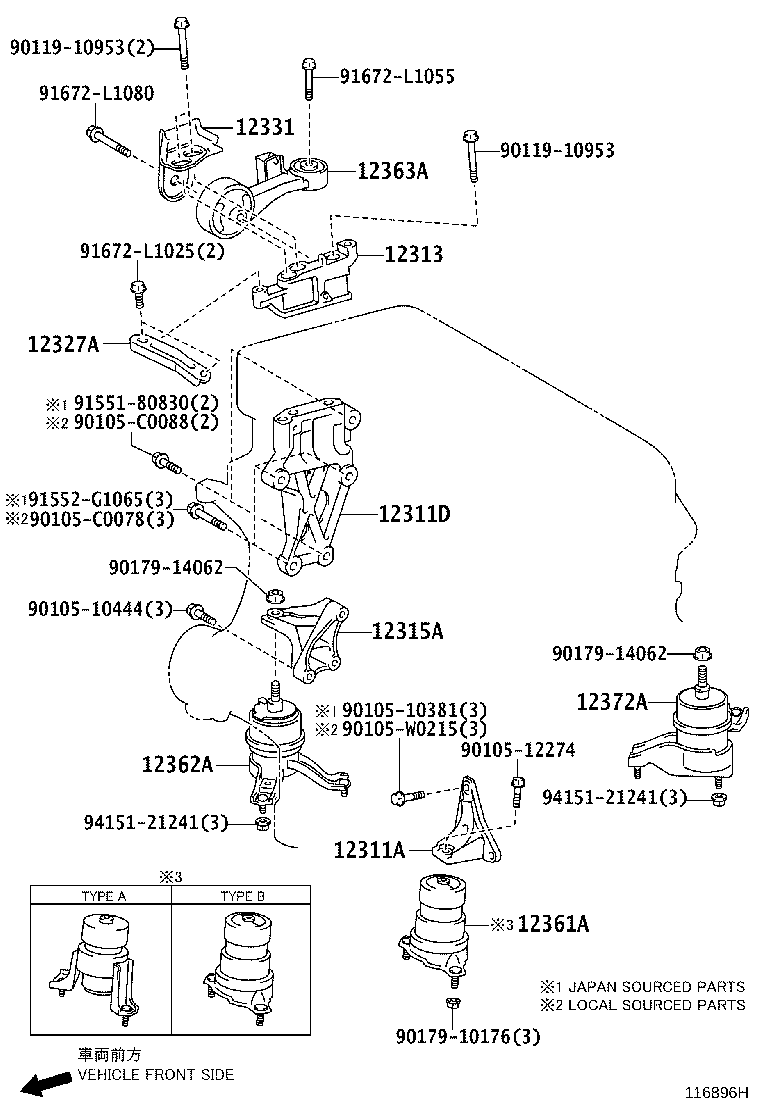

Click highlighted areas on diagram

diagram 12311A 12311D 12313 12315A 12327A 12331 12361A 12362A 12363A 12372A 9010510381 9010510444 9010512274 90105C0078 90105C0088 90105W0215 9011910953 9011910953 9017910176 9017914062 9017914062 9155180830 91552G1065 91672L1025 91672L1055 91672L1080 9415121241 9415121241
Part # Description Qty Price
12311D - BRACKET, ENGINE MOUNTING
12313-0V080

6ARFSE..ASV51

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-36111

2ARFE,6ARFSE..ASV5#..RUP

TYPE B:REFER ILLUST.

 1
Common parts
90105-10381
90105-10444
90105-12274
90105-C0078
90105-C0088
90105-W0215
90119-10953
90179-10176
90179-14062
91551-80830
91552-G1065
91672-L1025
91672-L1055
91672-L1080
94151-21241
