ASV50R-AETNKW (2014)
Toyota Camry/Hybrid

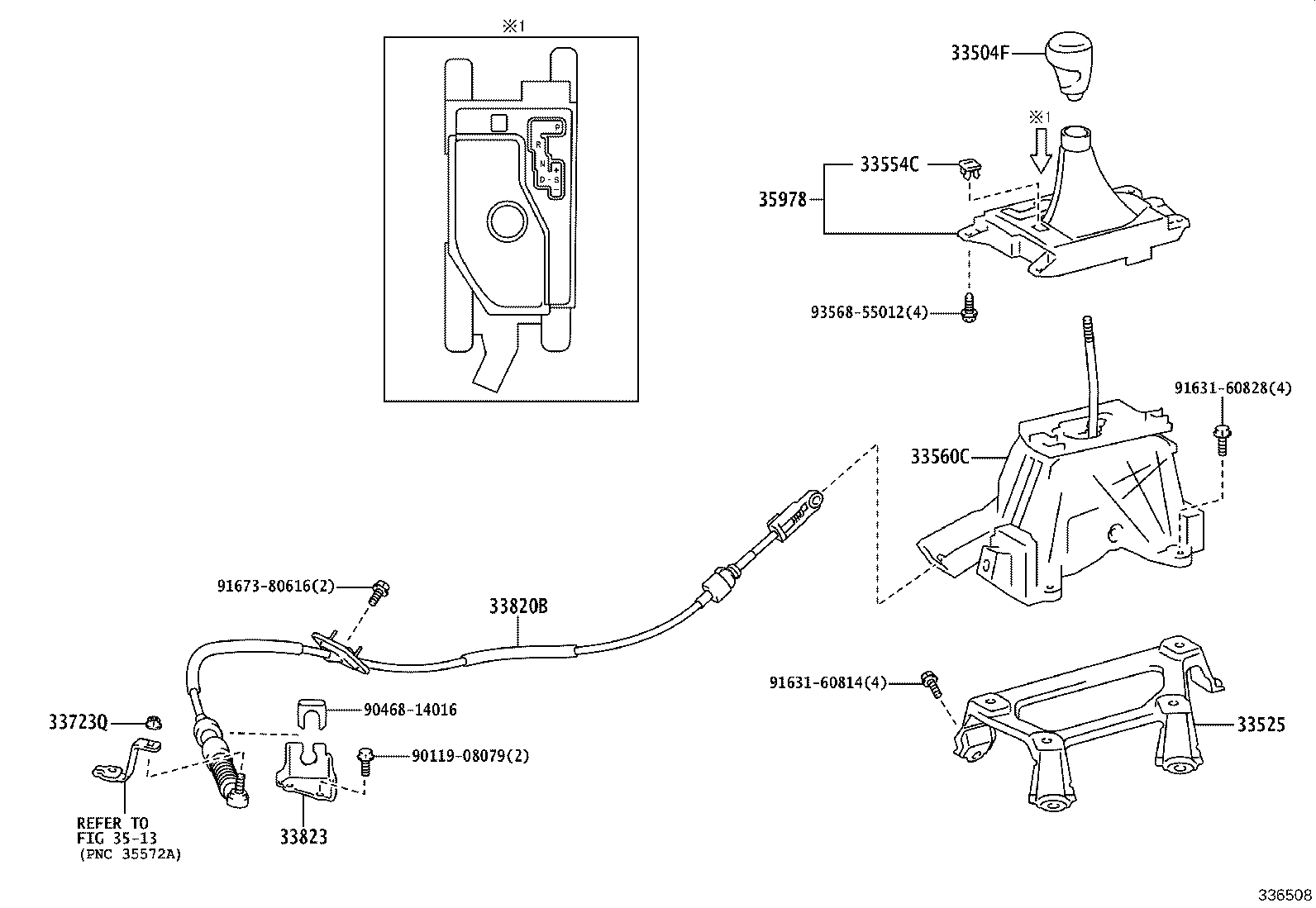

(1510- )ASV50..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-33120E0 |
ACV51,ASV50,GSV50 SHELL,TRIM0#,2# |
1 | ||
| 33504-33121E1 |
ASV50,GSV50..JPP SHELL & BLACK,TRIM0#,2# |
1 | ||
| 33542-12360E2 |
ASV50,GSV50..JPP SHELL & BLACK,TRIM0#,2# |
1 | ||
| 33525 - SUPPORT, SHIFT LEVER | ||||
| 58123-33010 |
ASV50,AVV50..RHD |
1 | ||
| 58123-33010 |
ASV50,AVV50..RHD |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-33150 |
ASV5#,AVV50,GSV50 |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-33250 |
ASV50..RHD WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER) |
1 | ||
| 33560-33240 |
ASV50..RHD |
1 | ||
| 33560-33250 |
ASV50..RHD |
1 | ||
| 33560-33251 |
ASV50..RHD |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 90179-08054 |
ASV5#,AVV50,GSV50 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33340 |
ASV50,GSV50..JPP |
1 | ||
| 33820-33340 |
ASV5#,GSV50 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33050 |
ASV50,GSV50..JPP |
1 | ||
| 33823-33050 |
ASV5#,GSV50 |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-33050 |
ASV50..RHD |
1 | ||
| 35978-33231 |
ASV50..RHD |
1 | ||
| 35978-33110 |
ASV50..RHD |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90468-14016 | ||||
| 91631-60814 | ||||
| 91631-60828 | ||||
| 91673-80616 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 3513 | ||||

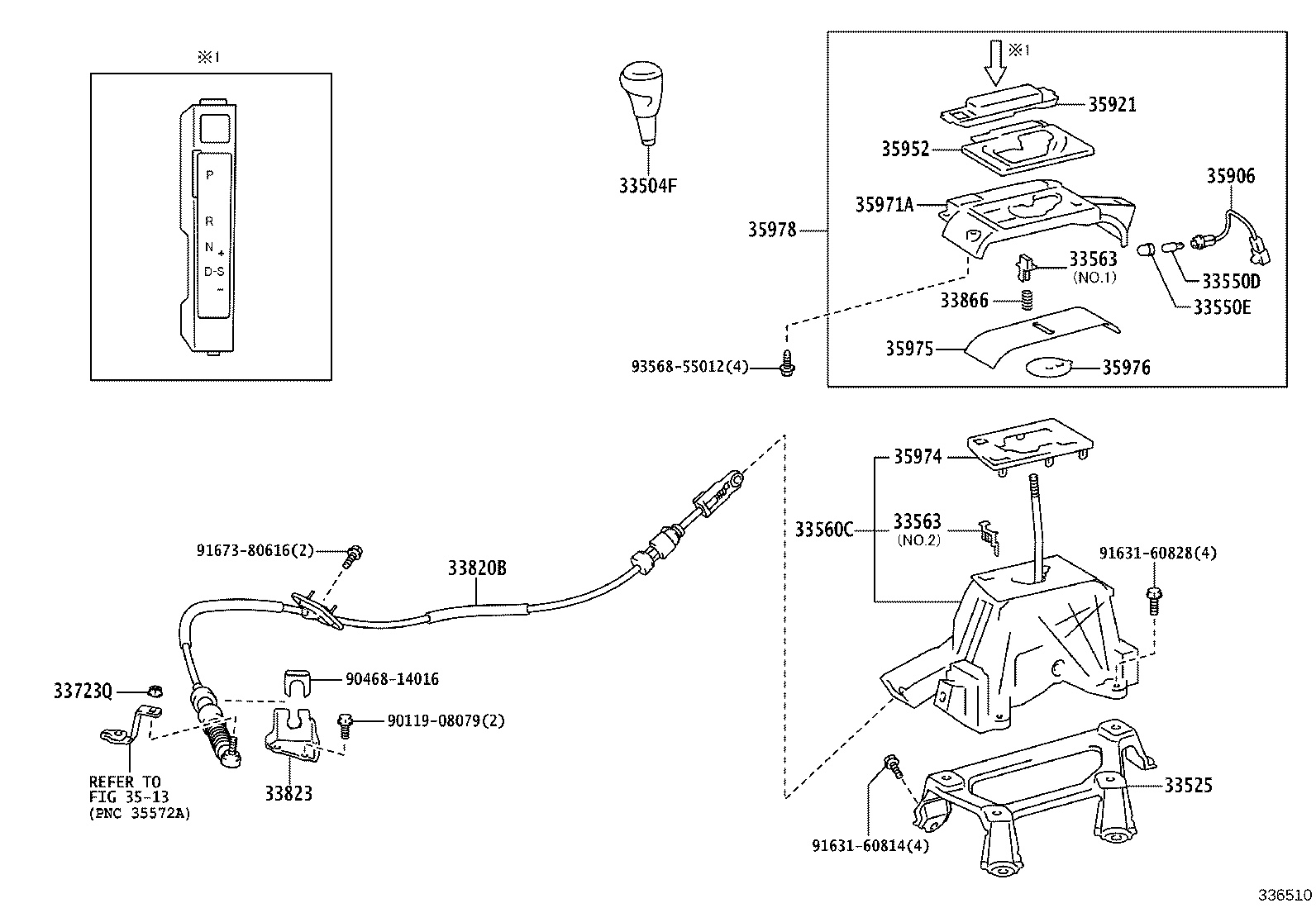

(1108-1510)ASV50..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-33120E0 |
ACV51,ASV50,GSV50 SHELL,TRIM0#,2# |
1 | ||
| 33504-33121E1 |
ASV50,GSV50..JPP SHELL & BLACK,TRIM0#,2# |
1 | ||
| 33542-12360E2 |
ASV50,GSV50..JPP SHELL & BLACK,TRIM0#,2# |
1 | ||
| 33525 - SUPPORT, SHIFT LEVER | ||||
| 58123-33010 |
ASV50,AVV50..RHD |
1 | ||
| 58123-33010 |
ASV50,AVV50..RHD |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ACV51,ASV50,AVV50,GSV50 12V 1.2W W/O SOCKET |
1 | ||
| 35955-20010 |
ASV5#,AVV50,GSV50 12V 2.0W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04053 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 35956-12010 |
ASV5#,AVV50,GSV50 |
1 | ||
| 33560C - LEVER ASSY, SHIFT, LOWER | ||||
| 33560-33250 |
ASV50..RHD WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(*IM CODE COMPUTER) |
1 | ||
| 33560-33240 |
ASV50..RHD |
1 | ||
| 33560-33250 |
ASV50..RHD |
1 | ||
| 33560-33251 |
ASV50..RHD |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-33310 |
ASV50,AVV50..RHD NO.1 |
1 | ||
| 33563-33310 |
ASV50,AVV50..RHD NO.1 |
1 | ||
| 33563-33280 |
ASV50,AVV50..RHD NO.2 |
1 | ||
| 33563-33280 |
ASV50,AVV50..RHD NO.2 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-33310 |
ASV50,AVV50..RHD NO.1 |
1 | ||
| 33563-33310 |
ASV50,AVV50..RHD NO.1 |
1 | ||
| 33563-33280 |
ASV50,AVV50..RHD NO.2 |
1 | ||
| 33563-33280 |
ASV50,AVV50..RHD NO.2 |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 90179-08054 |
ASV5#,AVV50,GSV50 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33340 |
ASV50,GSV50..JPP |
1 | ||
| 33820-33340 |
ASV5#,GSV50 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33050 |
ASV50,GSV50..JPP |
1 | ||
| 33823-33050 |
ASV5#,GSV50 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-42020 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 33866-42020 |
ASV5#,AVV50,GSV50 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33140 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 35906-33140 |
ASV5#,AVV50,GSV50 |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-33280 |
ASV50..RHD |
1 | ||
| 35921-33220 |
ASV50..RHD |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-33040 |
ASV50..RHD |
1 | ||
| 35952-33040 |
ASV50..RHD |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-33200 |
ASV50,AVV50..RHD |
1 | ||
| 35971-33200 |
ASV50,AVV50..RHD |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33170 |
ASV50,AVV50..RHD |
1 | ||
| 35974-33170 |
ASV50,AVV50..RHD |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-33120 |
ASV5#,AVV50,GSV50 |
1 | ||
| 35975-33120 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-33140 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 35976-33140 |
ASV5#,AVV50,GSV50 |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-33050 |
ASV50..RHD |
1 | ||
| 35978-33231 |
ASV50..RHD |
1 | ||
| 35978-33110 |
ASV50..RHD |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90468-14016 | ||||
| 91631-60814 | ||||
| 91631-60828 | ||||
| 91673-80616 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 3513 | ||||
