ASV50R-AETNKW (2011)

Toyota Camry/Hybrid

Production Aug 2011 - Sep 2014
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1409)RHD

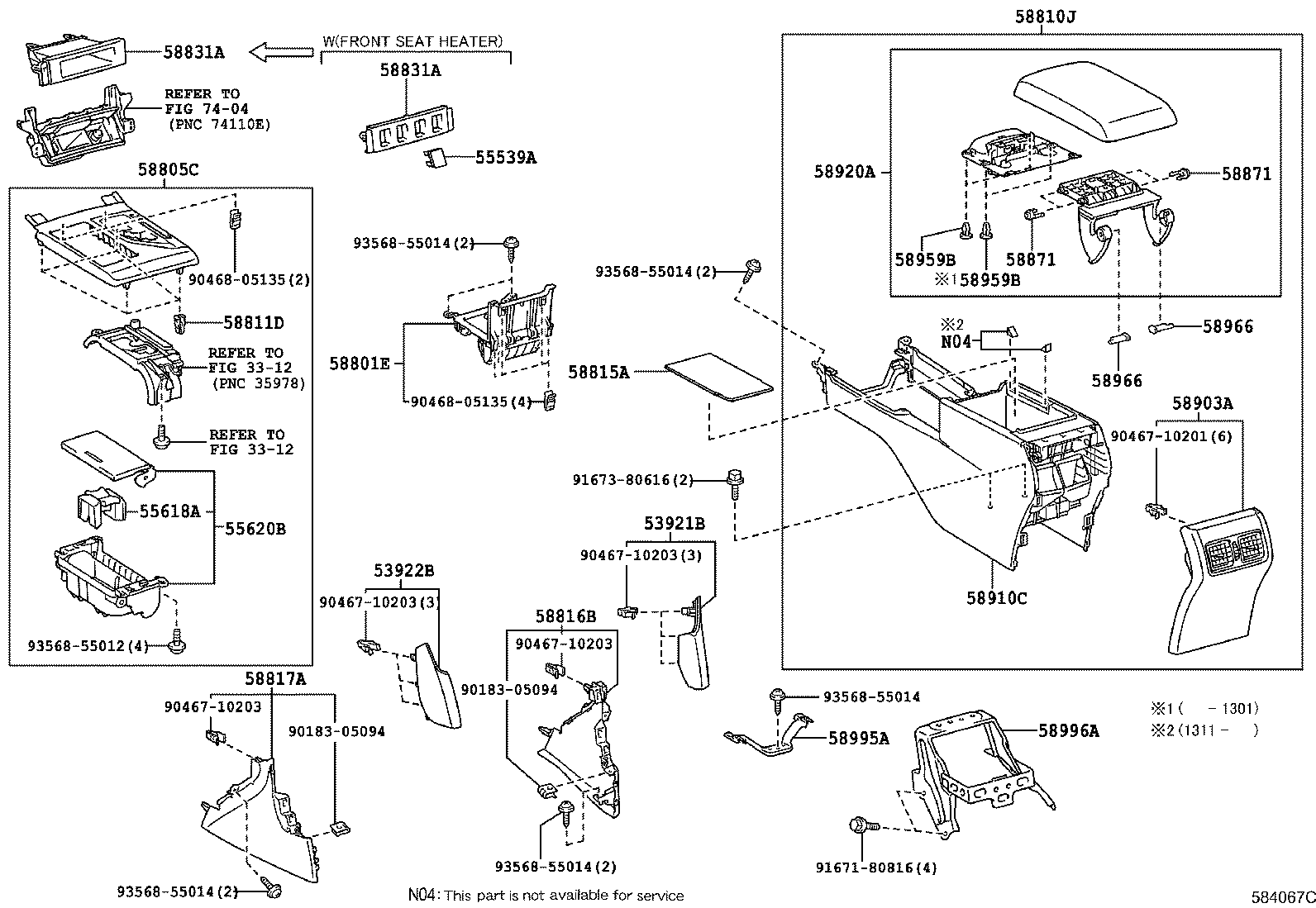

Click highlighted areas on diagram

diagram 3312 3312 53921B 53922B 55539A 55618A 55620B 58801E 58805C 58810J 58811D 58815A 58816B 58817A 58831A 58831A 58871 58871 58903A 58910C 58920A 58959B 58959B 58966 58966 58995A 58996A 7404 9018305094 9018305094 9046710201 9046710203 9046710203 9046710203 9046710203 9046805135 9046805135 9167180816 9167380616 9356855012 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
53921B - GARNISH, FRONT PANEL, RH
53921-33010C0

ACV51,ASV50,AVV50,GSV50

BLACK,TRIM0#,2#

 1
53922B - GARNISH, FRONT PANEL, LH
53922-33010C0

ACV51,ASV50,AVV50,GSV50

BLACK,TRIM0#,2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-33010

ASV50,AVV50,GSV50..JPP

 1
55620B - HOLDER, INSTRUMENT PANEL CUP
55620-33320E0

ASV50,GSV50

SHELL,TRIM0#,2#

 1
58801E - BOX SUB-ASSY, CONSOLE, UPPER
58801-33170A0

ACV51,ASV50,AVV50,GSV50

SHELL,TRIM0#

 1
58801-33170C0

ACV51,ASV50,AVV50,GSV50

BLACK,TRIM2#

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-33290E0

ASV50..RHD

SHELL,TRIM0#,2#

 1
58810J - BOX ASSY, CONSOLE
58810-33221A0

ACV51,ASV50

SHELL,TRIM0#

 1
58810-33211A0

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#

 1
58810-33211C5

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
58810-33221C5

ACV51,ASV50

BLACK,TRIM2#

 1
58810-33212A0

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#

 1
58810-33212C5

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10203

ASV50,AVV50,GSV50..JPP

 4
58815A - CARPET, CONSOLE BOX
58815-33140

ASV50,AVV50,GSV50..JPP

 1
58816B - INSERT, CONSOLE BOX
58816-33040C0

ASV50,AVV50..RHD

BLACK,TRIM0#,2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-33040C0

ASV50,AVV50..RHD

BLACK,TRIM0#,2#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-33130

ASV50..EUR

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-33130

ASV50..EUR

 1
58871 - CUSHION, CONSOLE BOX
58871-30070

ASV50,AVV50,GSV50..JPP

 4
58871 - CUSHION, CONSOLE BOX
58871-30070

ASV50,AVV50,GSV50..JPP

 4
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-33111A0

ASV50,GSV50

SHELL,TRIM0#

 1
58903-33111C3

ASV50,GSV50

BLACK,TRIM2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-33421A0

ACV51,ASV50,AVV50,GSV50

SHELL,TRIM01

 1
58910-33421C0

ACV51,ASV50,AVV50,GSV50

BLACK,TRIM01,2#

 1
58920A - ARMREST ASSY, REAR CONSOLE
58920-33041A0

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#,REFER TO ILLUST.

 1
58920-33041C0

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#,REFER TO ILLUST.

 1
58920-33051C0

ACV51,ASV50

BLACK,TRIM2#,REFER TO ILLUST.

 1
58920-33051A0

ACV51,ASV50

SHELL,TRIM0#,REFER TO ILLUST.

 1
58920-33042A0

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,SHELL,TRIM0#,REFER TO ILLUST.

 1
58920-33042C0

ASV50..EUR

*PSE(*DRP) & LEATHER PACKAGE,BLACK,TRIM2#,REFER TO ILLUST.

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ASV50,AVV50,GSV50..JPP

 2
58959-60060

ACV51,ASV50,AVV50,GSV50

 4
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

ASV50,AVV50,GSV50..JPP

 2
58959-60060

ACV51,ASV50,AVV50,GSV50

 4
58966 - SHAFT, BOX DOOR HINGE
58966-30030

ASV50,AVV50,GSV50..JPP

 2
58966 - SHAFT, BOX DOOR HINGE
58966-30030

ASV50,AVV50,GSV50..JPP

 2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-33080

ASV50,AVV50,GSV50..JPP

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-33070

ASV50,AVV50,GSV50..JPP

 1
Common parts
90183-05094
90467-10201
90467-10203
90468-05135
91671-80816
91673-80616
93568-55012
93568-55014
Linked diagrams
3312
7404
