ASV50R-AETNKW (2011)
Toyota Camry/Hybrid
(1108-1409)ASV50,GSV50..JPP ; (1111-1411)RUP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51023A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51023-33060 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 51024A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51024-33070 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-33030 |
ACV51,ASV50,GSV50 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-33050 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-33071 |
ACV51,ASV50,GSV50 |
1 | ||
| 51100-33070 |
ACV51,ASV50,GSV50 |
1 | ||
| 51100-33073 |
ACV51,ASV50,GSV50 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-33100 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-33110 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 51249 - DAMPER, REAR SUSPENSION MEMBER | ||||
| 51249-33010 |
ACV51,ASV50 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-33140 |
ACV51,ASV50,GSV50 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-33140 |
ACV51,ASV50,GSV50 |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-07214 |
ACV51,ASV50,AVV50,GSV50 |
5 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
ACV51,ASV50,GSV50 |
4 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 51451H - SCREW, NO.3 | ||||
| 90159-60477 |
ACV51,ASV50,AVV50,GSV50 |
4 | ||
| 52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-33030 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-33030 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-33080 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-33080 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-33100 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-33080 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-33030 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH | ||||
| 52271-33051 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH | ||||
| 52272-33051 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-33010 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-33010 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-33051 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-33051 |
ACV51,ASV50,AVV50,GSV50 |
2 | ||
| 53851M - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-33040 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 53852K - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-33040 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 58219C - PLATE, CENTER FLOOR REAR END | ||||
| 58219-33010 |
ACV51,ASV50,AVV50 |
1 | ||
| Common parts | ||||
| 90105-10518 | ||||
| 90109-12078 | ||||
| 90119-12359 | ||||
| 90119-16015 | ||||
| 90119-W0259 | ||||
| 90178-12014 | ||||
| 90179-10087 | ||||
| 90179-10203 | ||||
| 90189-06065 | ||||
| 91554-A0820 | ||||
| 91671-A0818 | ||||

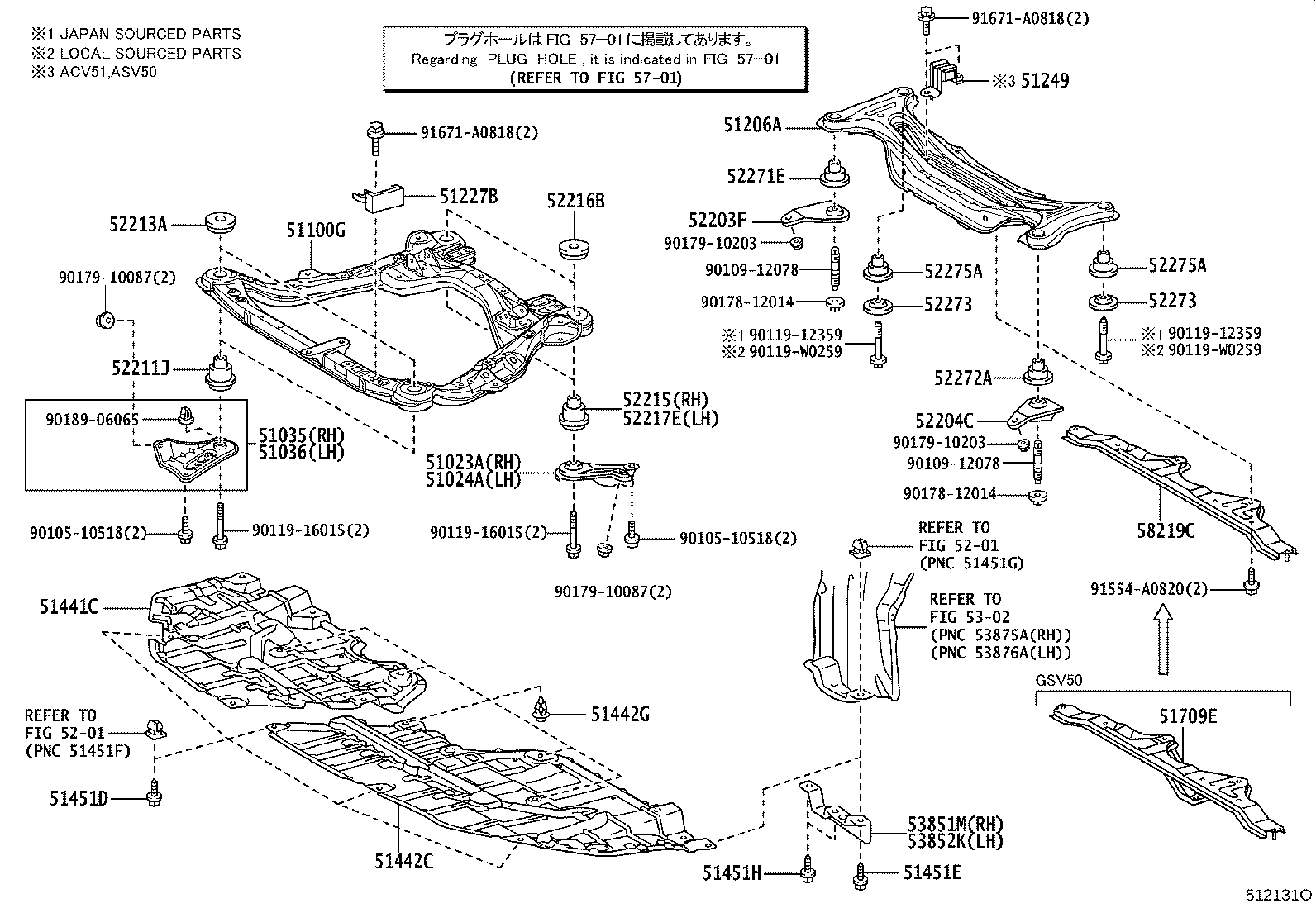

| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
| 5701 | ||||
