ASV50L-AETNKX (2014)

Toyota Camry/Hybrid

Production Sep 2014 - Apr 2017
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )JPP ; (1411- )ASV50,GSV50..RUP ; (1503- )ASV51

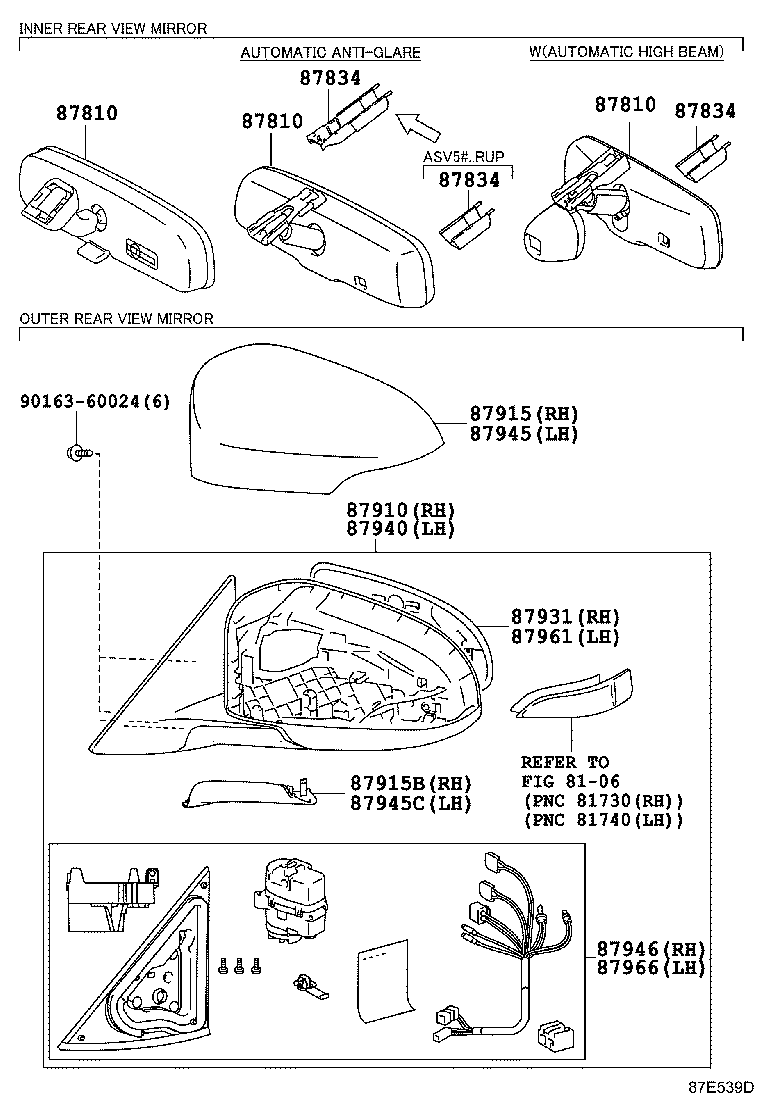

Click highlighted areas on diagram

diagram 8106 87810 87810 87810 87834 87834 87834 87910 87915 87915B 87931 87940 87945 87945C 87946 87961 87966 9016360024
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WK21

ASV50,AVV50,GSV50..JPP

 1
87810-0WK20

ASV50,AVV50,GSV50..JPP

 1
87810-0W260

ASV50,AVV50,GSV50..JPP

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WK21

ASV50,AVV50,GSV50..JPP

 1
87810-0WK20

ASV50,AVV50,GSV50..JPP

 1
87810-0W260

ASV50,AVV50,GSV50..JPP

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0WK21

ASV50,AVV50,GSV50..JPP

 1
87810-0WK20

ASV50,AVV50,GSV50..JPP

 1
87810-0W260

ASV50,AVV50,GSV50..JPP

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-33010

ASV50,AVV50,GSV50..JPP

 1
87818-33010

ASV50,AVV50,GSV50..JPP

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-33010

ASV50,AVV50,GSV50..JPP

 1
87818-33010

ASV50,AVV50,GSV50..JPP

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-33010

ASV50,AVV50,GSV50..JPP

 1
87818-33010

ASV50,AVV50,GSV50..JPP

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-33A12

ASV50,AVV50,GSV50..JPP..LHD

NO PAINT REQ.

 1
87910-33A10

ACV51,ASV50,AVV50,GSV50..LHD

NO PAINT REQ.

 1
87910-33A11

GSV50..JPP;ASV5#,AVV50..LHD

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-33020G0

ASV50,AVV50,GSV50..JPP

OLIVE M.M.,6T7

 1
87915-33020B0

ACV51,ASV50,AVV50,GSV50

SILVER ME.,1F7

 1
87915-33020A0

ACV51,ASV50,GSV50..RUS

SUPER WHITE 2,040

 1
87915-33020B2

ACV51,ASV50,AVV50,GSV50

DK. STEEL MC.,1H2

 1
87915-33020A1

ACV51,ASV50,AVV50,GSV50

WHITE PEARL CS.,070

 1
87915-33020C0

ACV51,ASV50,AVV50,GSV50

ATTITUDE BLACK MC.,218

 1
87915-33020E0

ACV51,ASV50,AVV50,GSV50..LHD

BEIGE ME.,4T8

 1
87915-33020D0

ASV50,AVV50,GSV50..JPP

RED M.M.,3R3

 1
87915-33020J0

ASV50,AVV50,GSV50..JPP

TRUE BLUE M.M.,8W1

 1
87915-33020J0

ASV50,AVV50,GSV50..JPP

TRUE BLUE M.M.,8W1

 1
87915-33020B5

GSV50..JPP;ASV5#,AVV50

GRAY M.M.,1H1

 1
87915-33020J8

ASV50,AVV50,GSV50..JPP

DK.BLUE M.M.,8W7

 1
87915-33020B1

ACV51,ASV50,AVV50,GSV50

GRAY ME.,1G3

 1
87915B - COVER, OUTER MIRROR, LOWER RH
87915-33040

ASV50,AVV50,GSV50..JPP..LHD

 1
87931 - OUTER MIRROR, RH
87931-33A10

ACV51,ASV50,AVV50,GSV50..LHD

 1
87931-33A11

ASV50,AVV50,GSV50..JPP..LHD

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-33A02

ASV50,AVV50,GSV50..JPP..LHD

 1
87940-33A01

GSV50..JPP;ASV5#,AVV50..LHD

NO PAINT REQ.

 1
87940-33A00

ACV51,ASV50,AVV50,GSV50..LHD

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-33020G0

ASV50,AVV50,GSV50..JPP

OLIVE M.M.,6T7

 1
87945-33020J0

ASV50,AVV50,GSV50..JPP

TRUE BLUE M.M.,8W1

 1
87945-33020B5

GSV50..JPP;ASV5#,AVV50

GRAY M.M.,1H1

 1
87945-33020B2

ACV51,ASV50,AVV50,GSV50

DK. STEEL MC.,1H2

 1
87945-33020D0

ASV50,AVV50,GSV50..JPP

RED M.M.,3R3

 1
87945-33020J0

ASV50,AVV50,GSV50..JPP

TRUE BLUE M.M.,8W1

 1
87945-33020B0

ACV51,ASV50,AVV50,GSV50

SILVER ME.,1F7

 1
87945-33020B1

ACV51,ASV50,AVV50,GSV50

GRAY ME.,1G3

 1
87945-33020E0

ACV51,ASV50,AVV50,GSV50..LHD

BEIGE ME.,4T8

 1
87945-33020A1

ACV51,ASV50,AVV50,GSV50

WHITE PEARL CS.,070

 1
87945-33020A0

ACV51,ASV50,GSV50..RUS

SUPER WHITE 2,040

 1
87945-33020C0

ACV51,ASV50,AVV50,GSV50

ATTITUDE BLACK MC.,218

 1
87945-33020J8

ASV50,AVV50,GSV50..JPP

DK.BLUE M.M.,8W7

 1
87945C - COVER, OUTER MIRROR, LOWER LH
87945-33040

ASV50,AVV50,GSV50..JPP..LHD

 1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-33A10

ASV50,AVV50,GSV50..JPP..LHD

 1
87946-33A10

ASV50,AVV50,GSV50..JPP..LHD

 1
87961 - MIRROR OUTER, LH
87961-33A01

ASV50,AVV50,GSV50..JPP..LHD

 1
87961-33A00

ACV51,ASV50,AVV50,GSV50..LHD

 1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-33A00

ASV50,AVV50,GSV50..JPP..LHD

 1
87966-33A00

ASV50,AVV50,GSV50..JPP..LHD

 1
Common parts
90163-60024
Linked diagrams
8106
