ASV50L-AETNKX (2011)

Toyota Camry/Hybrid

Production Aug 2011 - Sep 2014
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1409)

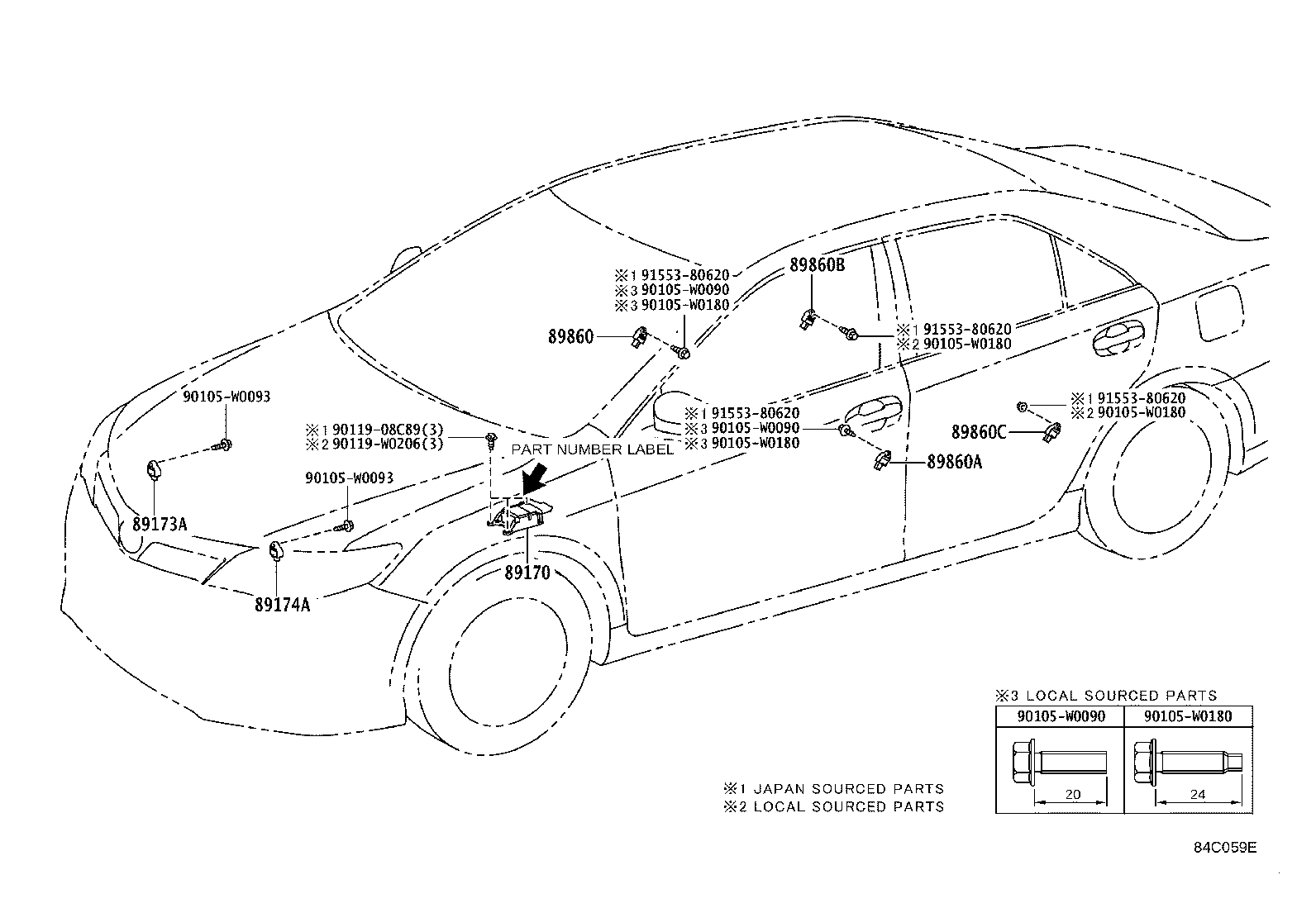

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89860 89860A 89860B 89860C 90105W0090 90105W0090 90105W0090 90105W0093 90105W0093 90105W0180 90105W0180 90105W0180 90105W0180 90105W0180 9011908C89 90119W0206 9155380620 9155380620 9155380620 9155380620
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-33800

GSV50..EUR;ASV50..JPP..LHD

P/N LABEL=8917033800

 1
89170-33630

ASV50..JPP..RUS

*PSE(*DRP & *RES) & LEATHER PACKAGE,P/N LABEL=8917033630

 1
89170-33620

GSV50..EUR;ASV50..JPP..LHD

P/N LABEL=8917033620

 1
89170-33810

ASV50..JPP..RUS

*PSE(*DRP & *RES) & LEATHER PACKAGE,P/N LABEL=8917033810

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39465

ASV50,AVV50,GSV50..JPP

P/N LABEL=8917339465

 1
89173-39475

ASV50,AVV50,GSV50..JPP

P/N LABEL=8917339475

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-39465

ASV50,AVV50,GSV50..JPP

P/N LABEL=8917339465

 1
89173-39475

ASV50,AVV50,GSV50..JPP

P/N LABEL=8917339475

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-28020

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983128020

 1
89831-52020

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983152020

 1
89831-06060

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983106060

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-28020

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983128020

 1
89831-52020

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983152020

 1
89831-06060

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983106060

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-33060

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983133060

 1
89831-33040

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983133040

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-33060

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983133060

 1
89831-33040

ASV50,AVV50,GSV50..JPP

P/N LABEL=8983133040

 1
Common parts
90105-W0090
90105-W0093
90105-W0180
90119-08C89
90119-W0206
91553-80620
