ASV50L-AETNKX (2011)
Toyota Camry/Hybrid
Production
Aug 2011
-
Sep 2014
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108-1409)JPP ; (1111-1411)RUP

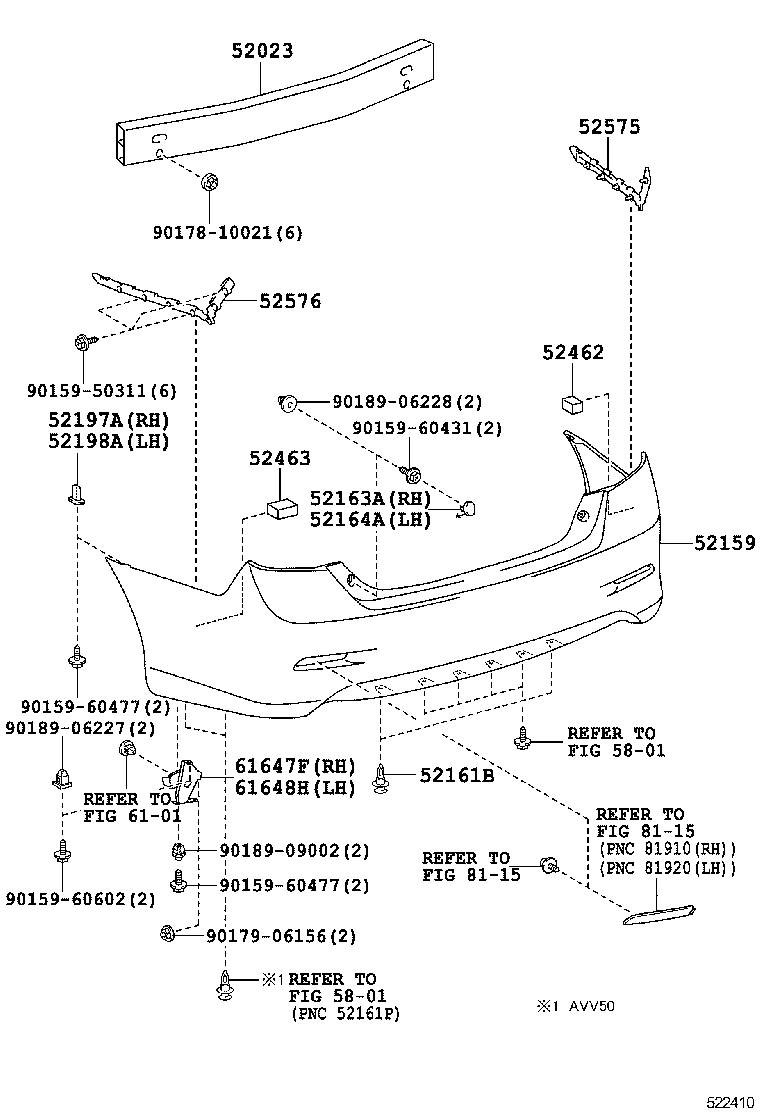

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52171-33150 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-33940 |
ASV50..RUS;ACV51,GSV50;ASV50,AVV50..RHD PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ASV50,AVV50,GSV50..JPP |
2 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-33901 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-33901 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-22020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-22020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-33020 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-33010 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-33121 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 52575-33120 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-33091 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 52576-33090 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 61647F - REINFORCEMENT, WHEEL HOUSE, RH | ||||
| 61647-33070 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 61648H - REINFORCEMENT, WHEEL HOUSE, LH | ||||
| 61648-33070 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90178-10021 | ||||
| 90179-06156 | ||||
| 90189-06227 | ||||
| 90189-06228 | ||||
| 90189-09002 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 6101 | ||||
| 8115 | ||||
