ASV50L-AETNKW (2011)

Toyota Camry/Hybrid

Production Aug 2011 - Sep 2014
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1409)JPP..LHD ; (1108-1411)RUP

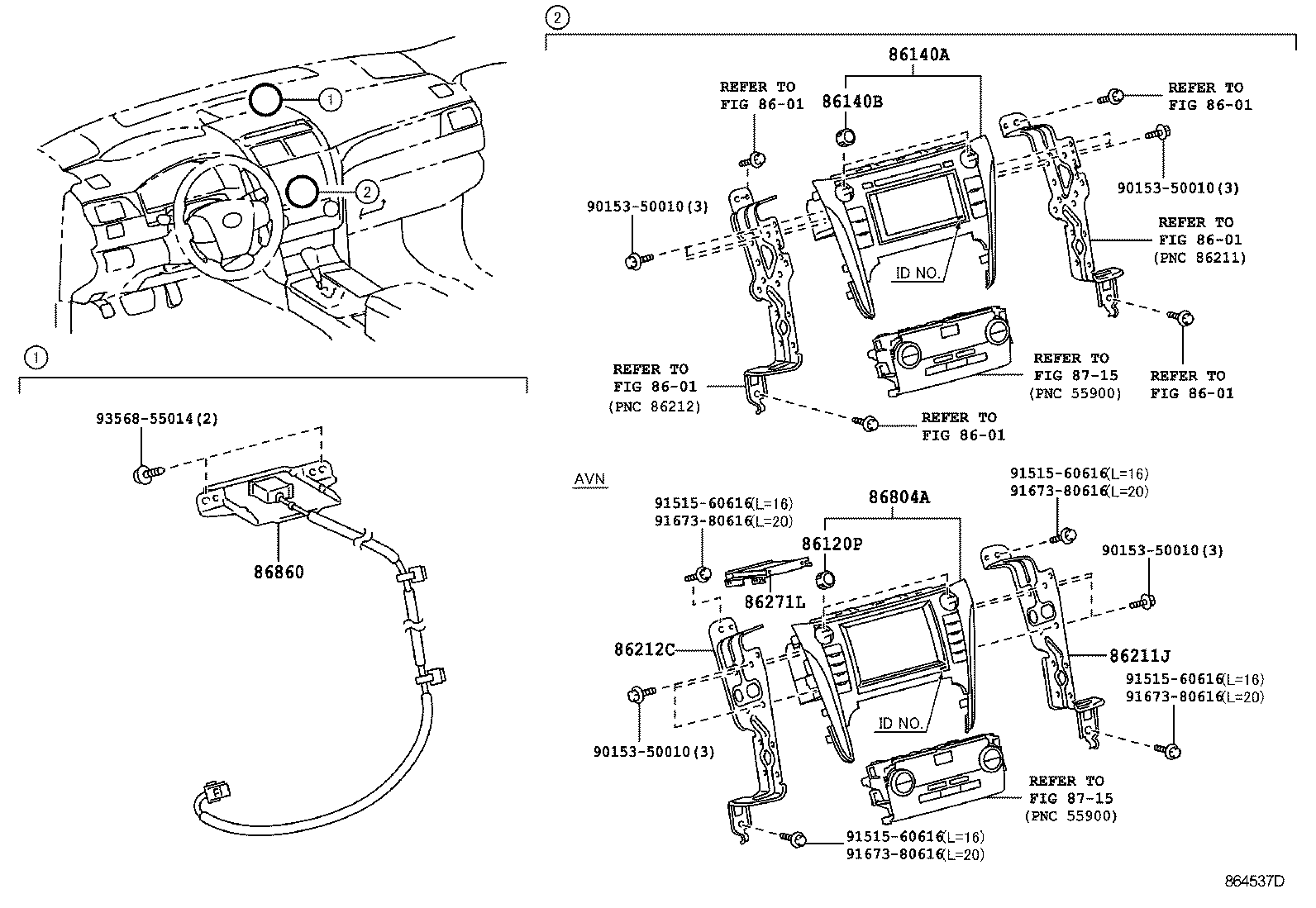

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 86120P 86140A 86140B 86211J 86212C 86271L 86804A 86860 8715 8715 9015350010 9015350010 9015350010 9015350010 9151560616 9151560616 9151560616 9151560616 9167380616 9167380616 9167380616 9167380616 9356855014
Part # Description Qty Price
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-33020

ASV50,AVV50,GSV50..LHD..EUR

FUJITSU TEN,ID100029,AUDIO-DISPLAY 6SPEAKER BLUETOOTH AM=10KHZ STEP

 1
86140-33030

ASV50..LHD..EUR

FUJITSU TEN,ID100031,AUDIO-DISPLAY 6SPEAKER BLUETOOTH AM=9KHZ STEP

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-23034

ASV50..LHD..EUR

AUDIO-DISPLAY 6SPEAKER BLUETOOTH AM=10KHZ STEP

 2
90010-23034

ASV50..LHD..EUR

AUDIO-DISPLAY 6SPEAKER BLUETOOTH AM=9KHZ STEP

 2
Common parts
90153-50010
91515-60616
91673-80616
93568-55014
Linked diagrams
8601
8715
