ASV50L-AETNKW (2011)
Toyota Camry/Hybrid
ILLUST NO. 1 OF 3(1108- )ACV51,ASV50,AVV50,GSV50

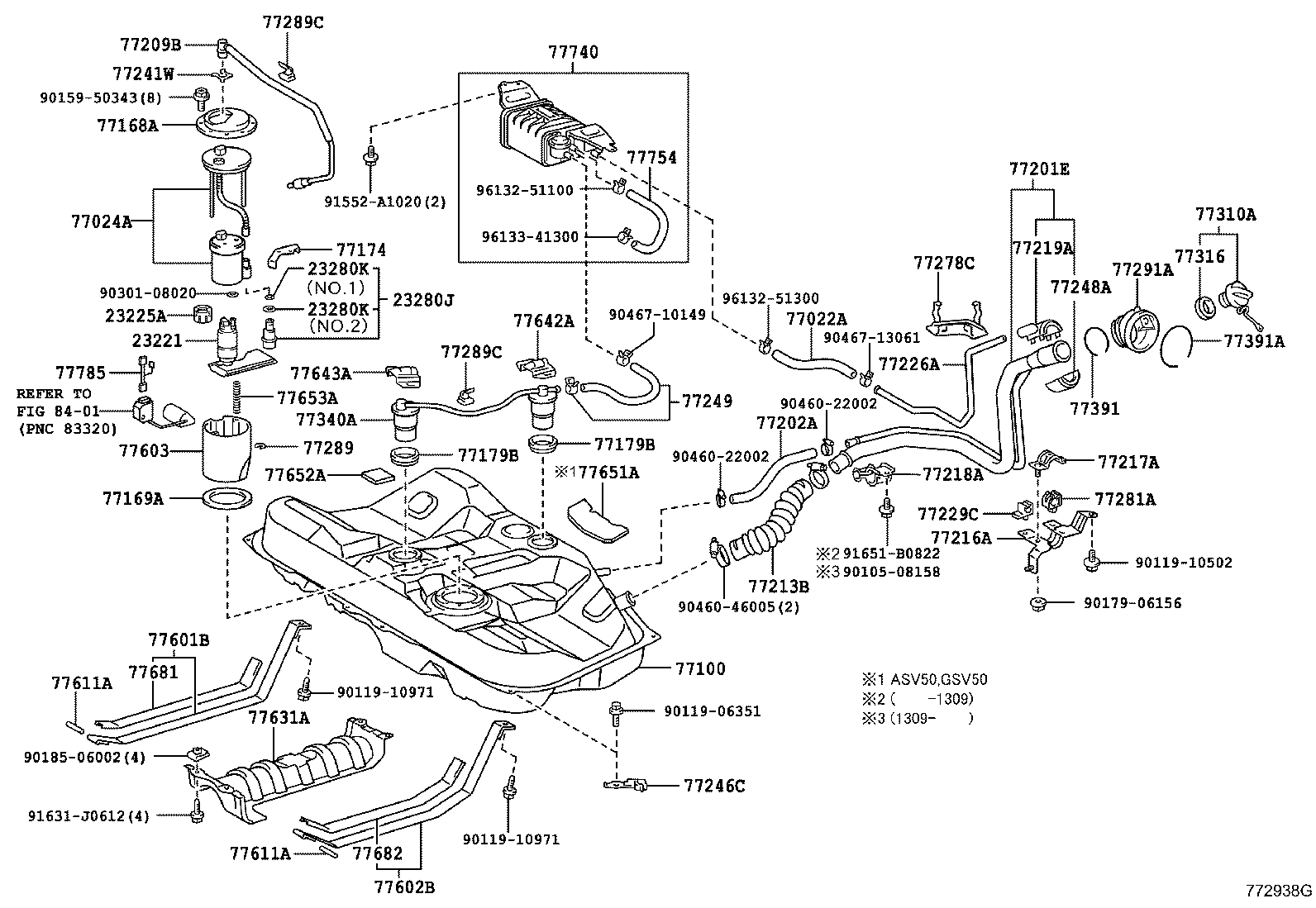

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-36060 |
2AR#..ASV50,AVV50 |
1 | ||
| 23220-36061 |
2AR#..ASV50,AVV50..JPP |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2AR#..ASV50,AVV50..JPP |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2AR#..ASV50,AVV50..JPP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2AR#,2GRFE..ASV50,AVV50,GSV50..JPP NO.1 |
1 | ||
| 90301-15024 |
2AR#,2GRFE..ASV50,AVV50,GSV50..JPP NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2AR#,2GRFE..ASV50,AVV50,GSV50..JPP NO.1 |
1 | ||
| 90301-15024 |
2AR#,2GRFE..ASV50,AVV50,GSV50..JPP NO.2 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
ASV50,AVV50,GSV50..JPP *H,L=240 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33090 |
ASV50..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33151 |
ASV50,GSV50..JPP |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
ASV50,GSV50..JPP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-33020 |
ASV50,AVV50..JPP |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-33010 |
ASV50,AVV50,GSV50..JPP |
2 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-33010 |
ASV50,AVV50,GSV50..JPP |
2 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-33281 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77201-33280 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13024 |
ASV50,AVV50,GSV50..JPP L=240 |
1 | ||
| 95312-13024 |
ASV50,AVV50,GSV50..JPP L=240 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33120 |
ASV50,AVV50,GSV50..JPP L=240 |
1 | ||
| 77213-33050 |
ASV50,AVV50,GSV50 L=240 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33090 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-33010 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77219A - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-33090 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77246C - SUPPORT, FUEL MAIN TUBE | ||||
| 77246-33020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-33090 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-33030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-48030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 90464-00745 |
ASV50,AVV50,GSV50..JPP |
3 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 90464-00745 |
ASV50,AVV50,GSV50..JPP |
3 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33100 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-33020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33090 |
ASV50,GSV50..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33100 |
ASV50,GSV50..JPP |
1 | ||
| 77603 - CASE SUB-ASSY, FUEL TANK, LOWER | ||||
| 77613-33030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
ASV50,AVV50,GSV50..JPP |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
ASV50,AVV50,GSV50..JPP |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33080 |
ASV50,GSV50..JPP |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-33030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-33020 |
ASV50,GSV50..JPP |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-33020 |
ASV50,GSV50..JPP |
7 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-33160 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-33030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33060 |
ASV50,AVV50..JPP |
1 | ||
| 77785-33040 |
ASV50,AVV50 |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-06351 | ||||
| 90119-10502 | ||||
| 90119-10971 | ||||
| 90159-50343 | ||||
| 90179-06156 | ||||
| 90185-06002 | ||||
| 90301-08020 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-10149 | ||||
| 90467-13061 | ||||
| 91552-A1020 | ||||
| 91631-J0612 | ||||
| 91651-B0822 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1108- )ACV51,ASV50,AVV50,GSV50

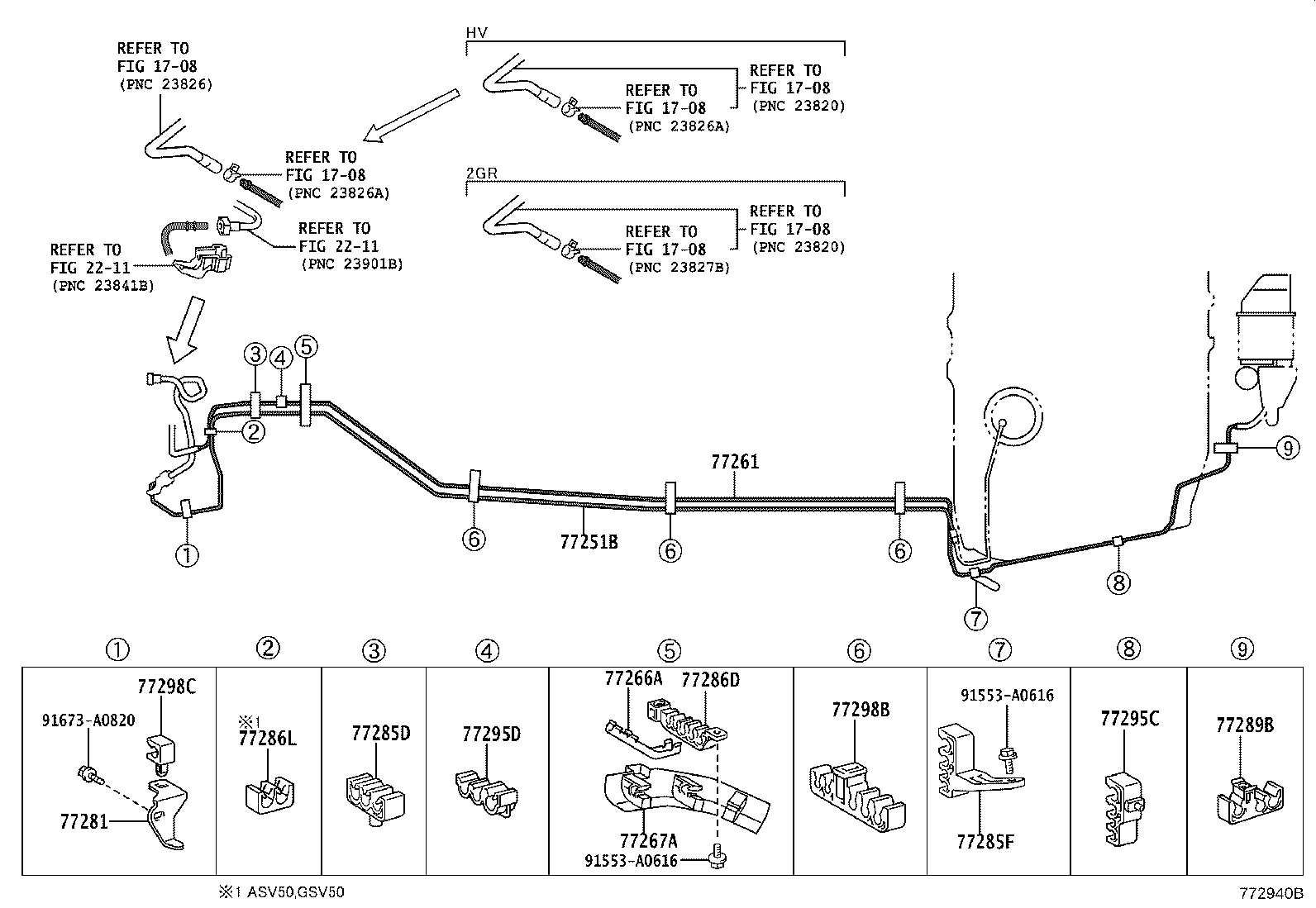

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33200 |
ASV50,GSV50..JPP |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-33170 |
ASV50,GSV50..JPP |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33050 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-33030 |
ASV50,GSV50..JPP |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-33030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33060 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77299-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-33040 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-42110 |
ASV50,GSV50..JPP |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-33050 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-33020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-42030 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-33060 |
ASV50,AVV50,GSV50..JPP |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30170 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| Common parts | ||||
| 91553-A0616 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1108- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-12020 |
ACV51,ASV50,AVV50,GSV50 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33150 |
ACV51,ASV50,AVV50,GSV50..LHD |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33150 |
ACV51,ASV50,AVV50,GSV50..LHD |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-33030 |
ACV51,ASV50,AVV50,GSV50..LHD |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-33030 |
ACV51,ASV50,AVV50,GSV50..LHD |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33210 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-33020 |
ASV50,AVV50,GSV50..JPP |
1 | ||
| Common parts | ||||
| 61825-30020 | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||
| 96713-19008 | ||||
