ASV50L-AETNKW (2011)
Toyota Camry/Hybrid
Production
Aug 2011
-
Sep 2014
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1108- )2ARFE

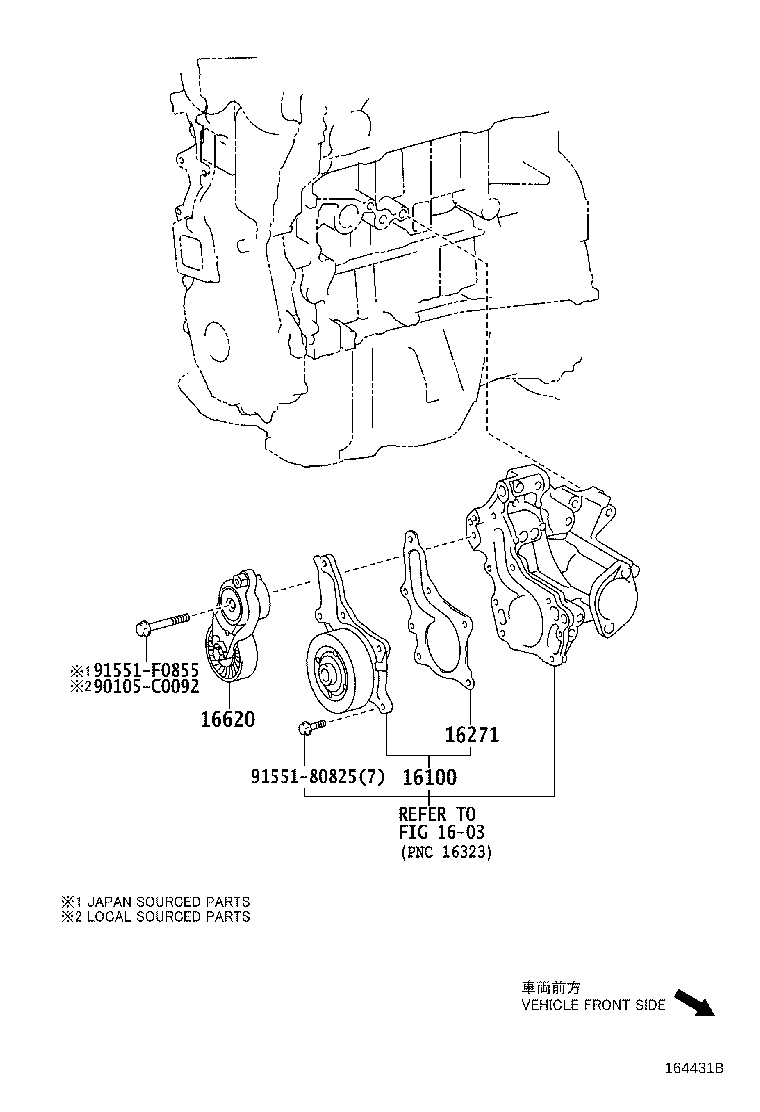

Click highlighted areas on diagram
*107
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39515 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-36010 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0V041 |
2ARFE..ASV50 *347 |
1 | ||
| 16620-36010 |
2ARFE..ASV50 *107 |
1 | ||
| 16620-36011 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16620-0V042 |
2ARFE..ASV50..JPP *347 |
1 | ||
| Common parts | ||||
| 90105-C0092 | ||||
| 91551-80825 | ||||
| 91551-F0855 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(1306- )2ARFE
Click highlighted areas on diagram
*347
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39515 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-36010 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0V041 |
2ARFE..ASV50 *347 |
1 | ||
| 16620-36010 |
2ARFE..ASV50 *107 |
1 | ||
| 16620-36011 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16620-0V042 |
2ARFE..ASV50..JPP *347 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0V041 |
2ARFE..ASV50 *347 |
1 | ||
| 16620-36010 |
2ARFE..ASV50 *107 |
1 | ||
| 16620-36011 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16620-0V042 |
2ARFE..ASV50..JPP *347 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0V041 |
2ARFE..ASV50 *347 |
1 | ||
| 16620-36010 |
2ARFE..ASV50 *107 |
1 | ||
| 16620-36011 |
2ARFE..ASV50..JPP *107 |
1 | ||
| 16620-0V042 |
2ARFE..ASV50..JPP *347 |
1 | ||
| Common parts | ||||
| 90105-C0092 | ||||
| 91551-80825 | ||||
| 91551-F0855 | ||||
| Linked diagrams | ||||
| 1603 | ||||
