ACV51L-REPNKX (2012)

Toyota Camry/Hybrid

Production Aug 2012 - Nov 2014
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1409)JPP ; (1111-1411)RUP

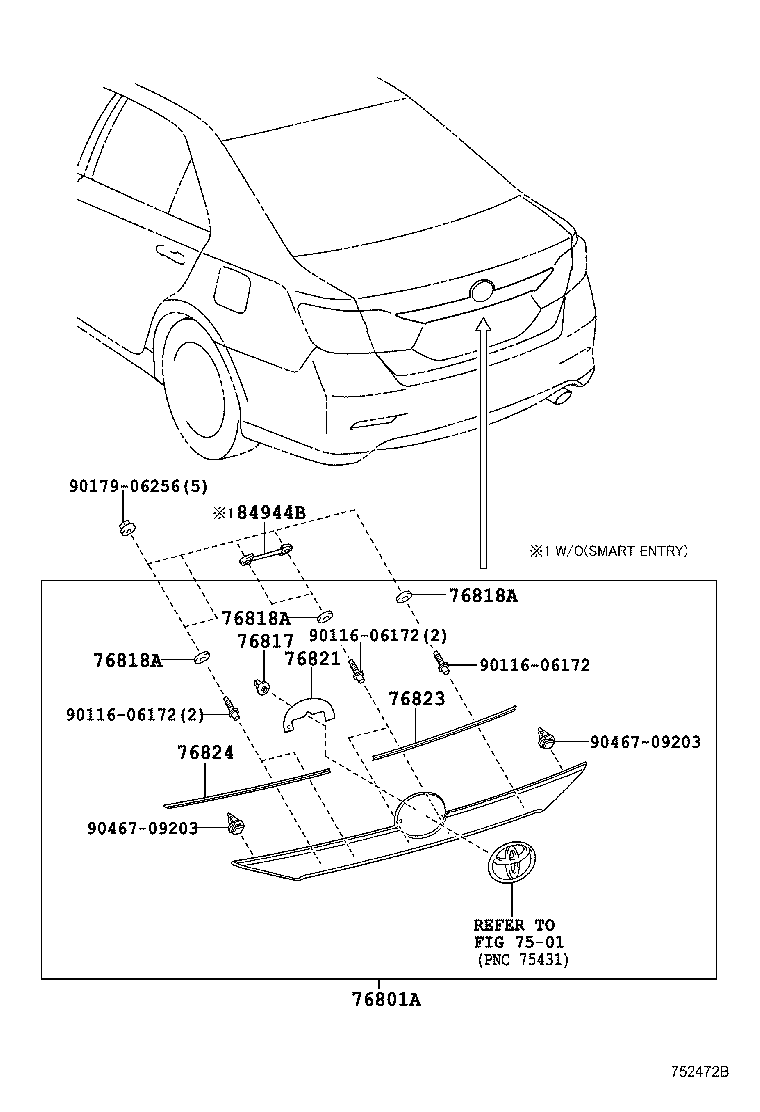

Click highlighted areas on diagram

diagram 7501 76801A 76817 76818A 76818A 76818A 76821 76823 76824 84944B 9011606172 9011606172 9011606172 9017906256 9046709203 9046709203
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-33330

ACV51

PLATED,*LEP2&*DA

 1
76801-33330

ACV51

PLATED,*LEP2&DA&LES

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12060

ACV51,ASV50,GSV50..RUP

 1
76818A - PAD, LUGGAGE GARNISH, NO.1
76818-33010

ACV51,ASV50,GSV50..RUP

 5
76818A - PAD, LUGGAGE GARNISH, NO.1
76818-33010

ACV51,ASV50,GSV50..RUP

 5
76818A - PAD, LUGGAGE GARNISH, NO.1
76818-33010

ACV51,ASV50,GSV50..RUP

 5
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-33010

ACV51,ASV50,GSV50..RUP

 1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824-33010

ACV51,ASV50,GSV50..RUP

 1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825-33080

ACV51,ASV50,GSV50..RUP

 1
84944B - COVER, LUGGAGE ELECTRICAL KEY SWITCH
84944-33020

ACV51,ASV50..RUP

 1
Common parts
90116-06172
90179-06256
90467-09203
Linked diagrams
7501

(1409- )JPP ; (1411- )RUP

Click highlighted areas on diagram

diagram 7501 76811B 76812B 76817 76818A 76818A 76818A 76821 76823 76824 84944B 9011606172 9011606172 9011606172 9017906256 9017906256 9017906256 9046709206 9046709206 9356855012
Part # Description Qty Price
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-12060

ACV51,ASV50,GSV50..RUP

 1
76818A - PAD, LUGGAGE GARNISH, NO.1
76818-33010

ACV51,ASV50,GSV50..RUP

 5
76818A - PAD, LUGGAGE GARNISH, NO.1
76818-33010

ACV51,ASV50,GSV50..RUP

 5
76818A - PAD, LUGGAGE GARNISH, NO.1
76818-33010

ACV51,ASV50,GSV50..RUP

 5
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-33010

ACV51,ASV50,GSV50..RUP

 1
76823 - PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824-33010

ACV51,ASV50,GSV50..RUP

 1
76824 - PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825-33080

ACV51,ASV50,GSV50..RUP

 1
84944B - COVER, LUGGAGE ELECTRICAL KEY SWITCH
84944-33020

ACV51,ASV50..RUP

 1
Common parts
90116-06172
90179-06256
90467-09206
93568-55012
Linked diagrams
7501
