ACV51L-REPNKX (2012)

Toyota Camry/Hybrid

Production Aug 2012 - Nov 2014
Engine 1AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108-1409)ASV50..JPP..LHD ; (1111-1411)ACV51,ASV50..RUP

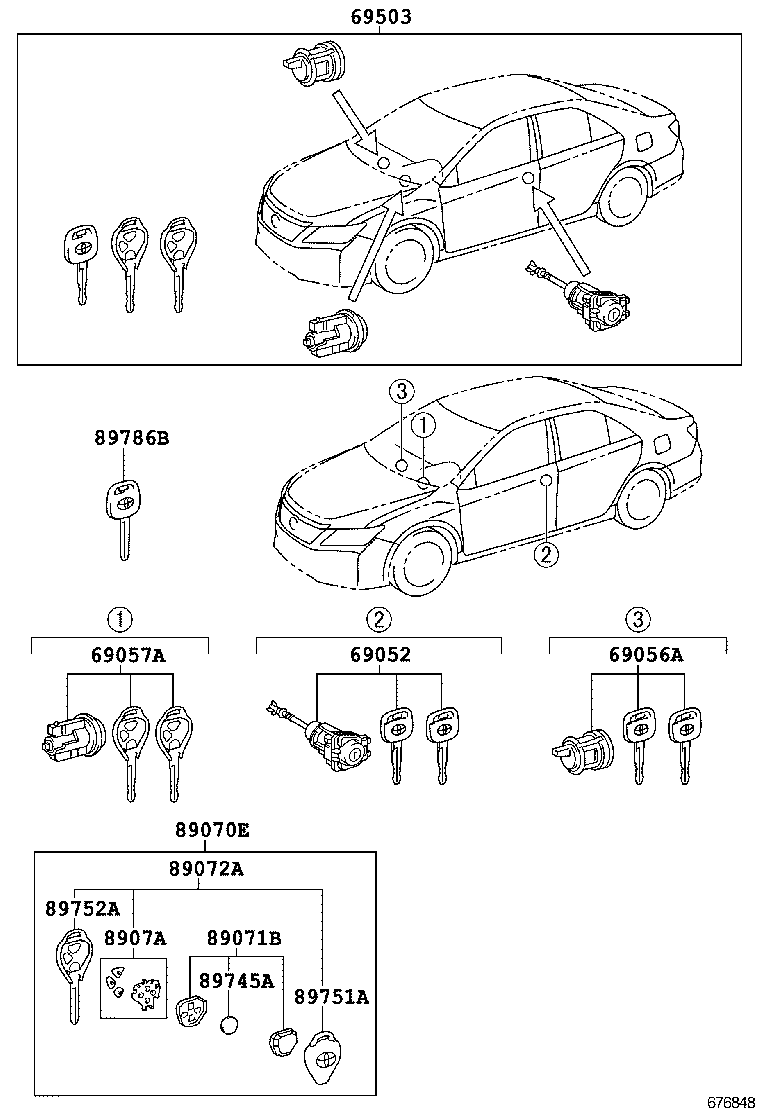

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69052 69056A 69057A 69503 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89786B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33341

ACV51,ASV50..RUP

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-33190

ACV51,ASV50..RUP

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-60620

ACV51,ASV50..RUP

 1
69503 - CYLINDER SET, LOCK
69005-33C91

ACV51,ASV50..RUP

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-33D90

ACV51,ASV50..RUP

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-33460

ACV51,ASV50..RUP

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-22100

ACV51,ASV50..RUP

 1
8907A - SWITCH SET, TRANSMITTER
8907A-33020

ACV51,ASV50..RUP

 2
89745A - BATTERY, TRANSMITTER
89745-48030

ACV51,ASV50..RUP

 1
89751A - COVER, TRANSMITTER HOUSING
89751-52140

ACV51,ASV50

 2
89751-33150

ACV51,ASV50..RUP

 2
89752A - CASE, TRANSMITTER HOUSING
89752-22070

ACV51,ASV50..RUP

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60220

ACV51,ASV50..RUP

BLANK KEY

 1
