ACV51L-REPNKX (2012)
Toyota Camry/Hybrid

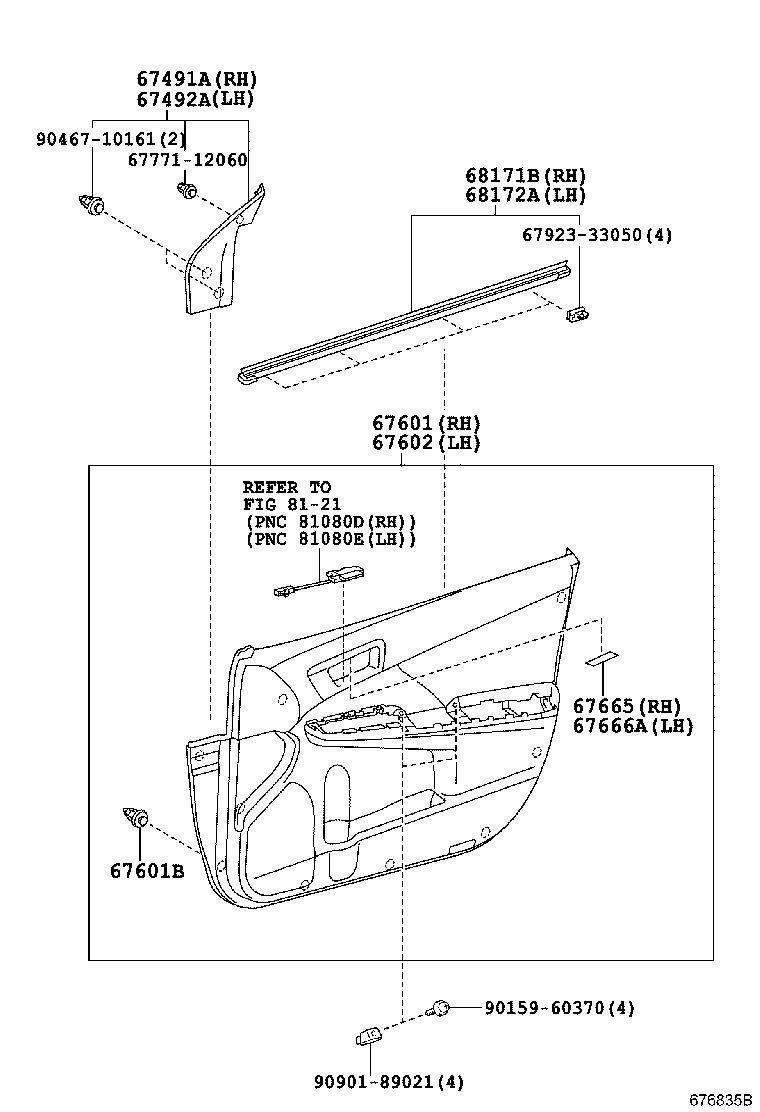

ILLUST NO. 2 OF 2(1108-1404)
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-33140 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-33140 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-33E20C2 |
ACV51,ASV50..LHD BLACK,TRIM2# |
1 | ||
| 67610-33E20C0 |
ACV51,ASV50..LHD BLACK/SHELL,TRIM0# |
1 | ||
| 67610-33E30C1 |
ACV51 *LEP2&DA&LES,BLACK,TRIM2# |
1 | ||
| 67610-33E30C0 |
ACV51 *LEP2&DA&LES,BLACK/SHELL,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACV51,ASV50,AVV50,GSV50 |
20 | ||
| 90467-09206 |
ACV51,ASV50,GSV50..RUP |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-33D80C0 |
ACV51,ASV50..LHD BLACK/SHELL,TRIM0# |
1 | ||
| 67620-33D90C1 |
ACV51 *LEP2&DA&LES,BLACK,TRIM2# |
1 | ||
| 67620-33D90C0 |
ACV51 *LEP2&DA&LES,BLACK/SHELL,TRIM0# |
1 | ||
| 67620-33D80C2 |
ACV51,ASV50..LHD BLACK,TRIM2# |
1 | ||
| 67665 - REFLECTOR, FRONT DOOR TRIM, RH | ||||
| 67665-33020 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| 67666A - REFLECTOR, FRONT DOOR TRIM, LH | ||||
| 67665-33020 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 67923-33050 | ||||
| 90159-60370 | ||||
| 90467-10161 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 8121 | ||||

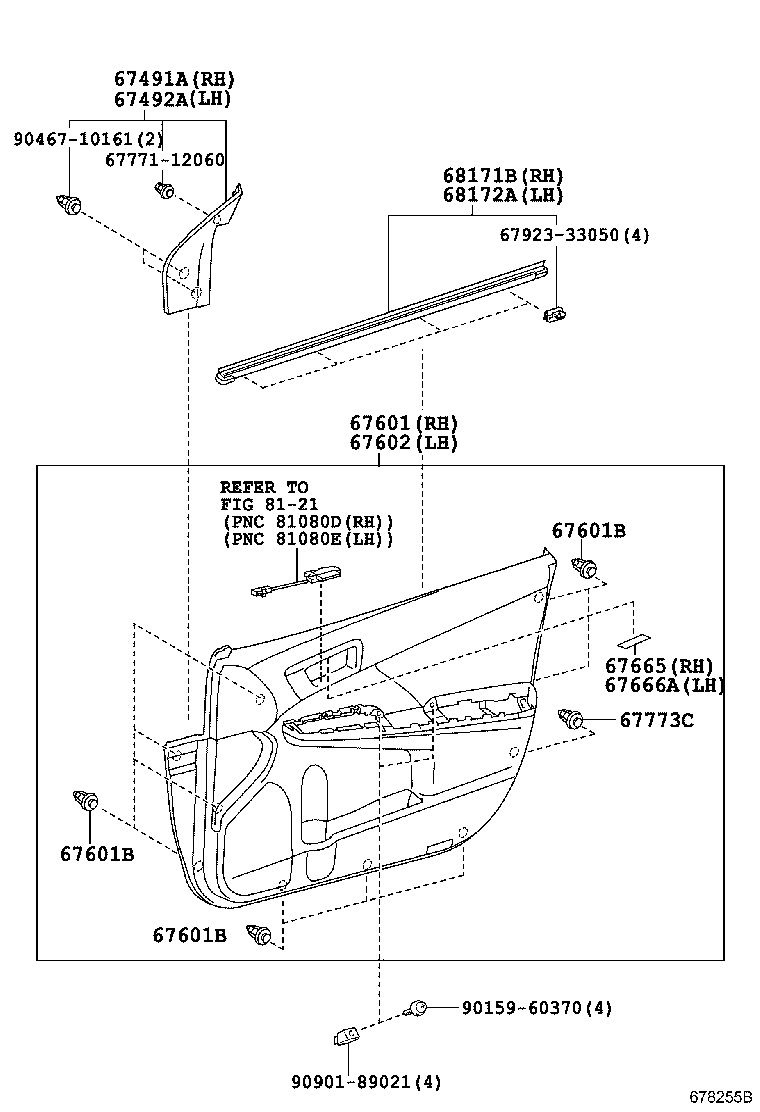

ILLUST NO. 2 OF 2(1404-1411) ; (1411- )JPP
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-33140 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-33140 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-33E20C2 |
ACV51,ASV50..LHD BLACK,TRIM2# |
1 | ||
| 67610-33E20C0 |
ACV51,ASV50..LHD BLACK/SHELL,TRIM0# |
1 | ||
| 67610-33E30C1 |
ACV51 *LEP2&DA&LES,BLACK,TRIM2# |
1 | ||
| 67610-33E30C0 |
ACV51 *LEP2&DA&LES,BLACK/SHELL,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACV51,ASV50,AVV50,GSV50 |
20 | ||
| 90467-09206 |
ACV51,ASV50,GSV50..RUP |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACV51,ASV50,AVV50,GSV50 |
20 | ||
| 90467-09206 |
ACV51,ASV50,GSV50..RUP |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACV51,ASV50,AVV50,GSV50 |
20 | ||
| 90467-09206 |
ACV51,ASV50,GSV50..RUP |
18 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-33D80C0 |
ACV51,ASV50..LHD BLACK/SHELL,TRIM0# |
1 | ||
| 67620-33D90C1 |
ACV51 *LEP2&DA&LES,BLACK,TRIM2# |
1 | ||
| 67620-33D90C0 |
ACV51 *LEP2&DA&LES,BLACK/SHELL,TRIM0# |
1 | ||
| 67620-33D80C2 |
ACV51,ASV50..LHD BLACK,TRIM2# |
1 | ||
| 67665 - REFLECTOR, FRONT DOOR TRIM, RH | ||||
| 67665-33020 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| 67666A - REFLECTOR, FRONT DOOR TRIM, LH | ||||
| 67665-33020 |
ACV51,ASV50,GSV50..RUP |
1 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-26030 |
ACV51,ASV50,GSV50..RUP |
2 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 67923-33050 | ||||
| 90159-60370 | ||||
| 90467-10161 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 8121 | ||||
