ZGX10L-AHXGPX (2016)

Toyota C-Hr

Production Oct 2016 - Sep 2019
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1610- )ZGX10

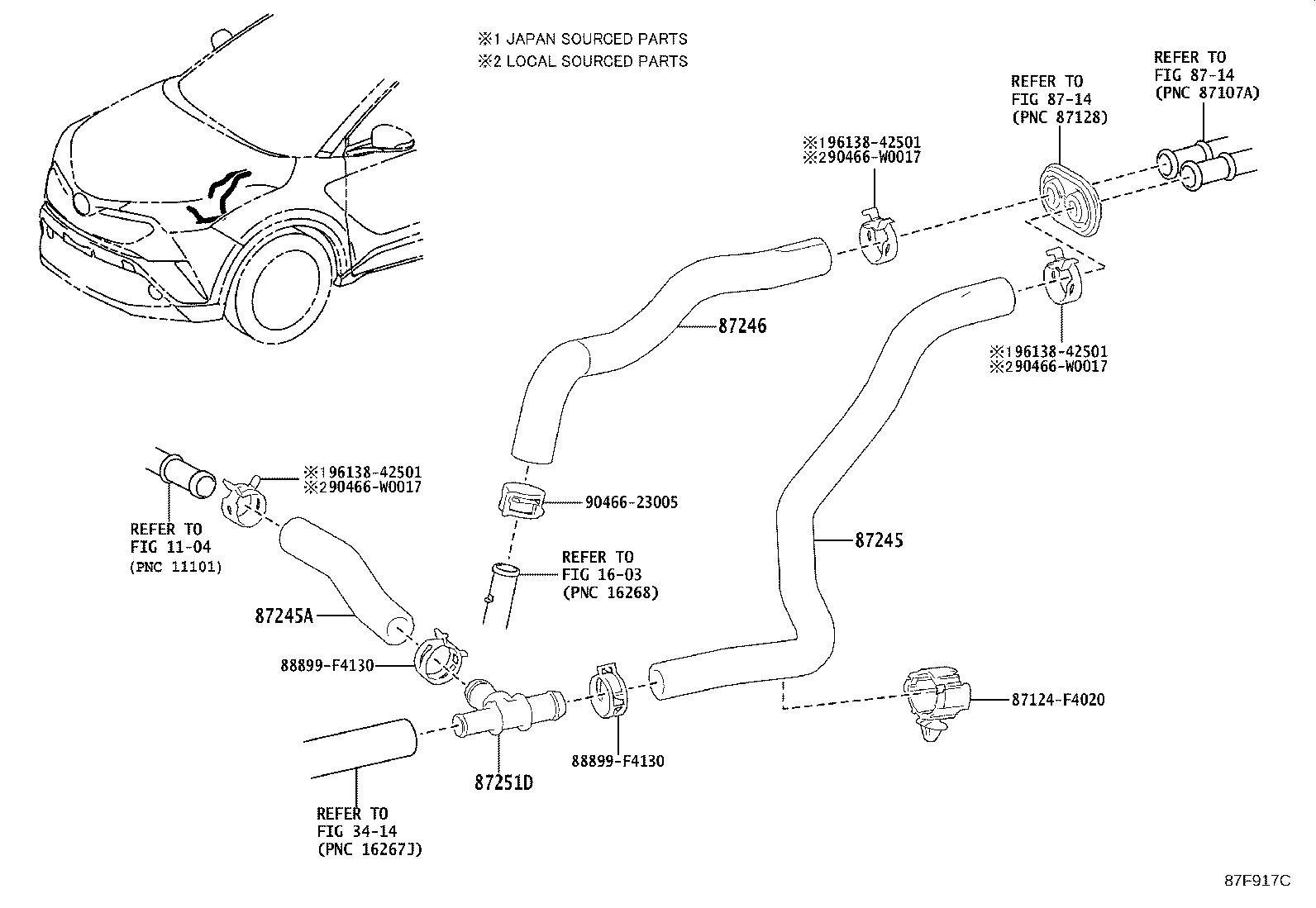

Click highlighted areas on diagram

diagram 1104 1603 3414 87124F4020 8714 8714 87245 87245A 87246 87251D 88899F4130 88899F4130 9046623005 90466W0017 90466W0017 90466W0017 9613842501 9613842501 9613842501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-F4050

ZGX10

 1
87245A - HOSE, HEATER WATER, INLET A
87245-F4060

ZGX10

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-F4011

ZGX10

 1
87245-F4010

ZGX10

 1
87251D - JOINT, WATER, NO.1
87251-F4010

ZGX10

 1
Common parts
87124-F4020
88899-F4130
90466-23005
90466-W0017
96138-42501
Linked diagrams
1104
1603
3414
8714
