NGX50L-AHXNXX (2016)
Toyota C-Hr
ILLUST NO. 2 OF 3(1610- )NGX10,50,ZGX10
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-F4021 |
NGX10,50 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-F4021 |
NGX10,50 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75010 |
NGX10,50 |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-75010 |
NGX10,50 |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-10080 |
NGX10,50 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-10070 |
NGX10,50 |
3 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-F4040 |
NGX10,50,ZGX10..LHD |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1610- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-F4010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-F4010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-78010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77379 - SPACER, FUEL INLET BOX COVER, NO.2 | ||||
| 77379-10010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77399A - COVER, FUEL FILLER OPENING LID | ||||
| 77399-F4010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90541-06070 | ||||

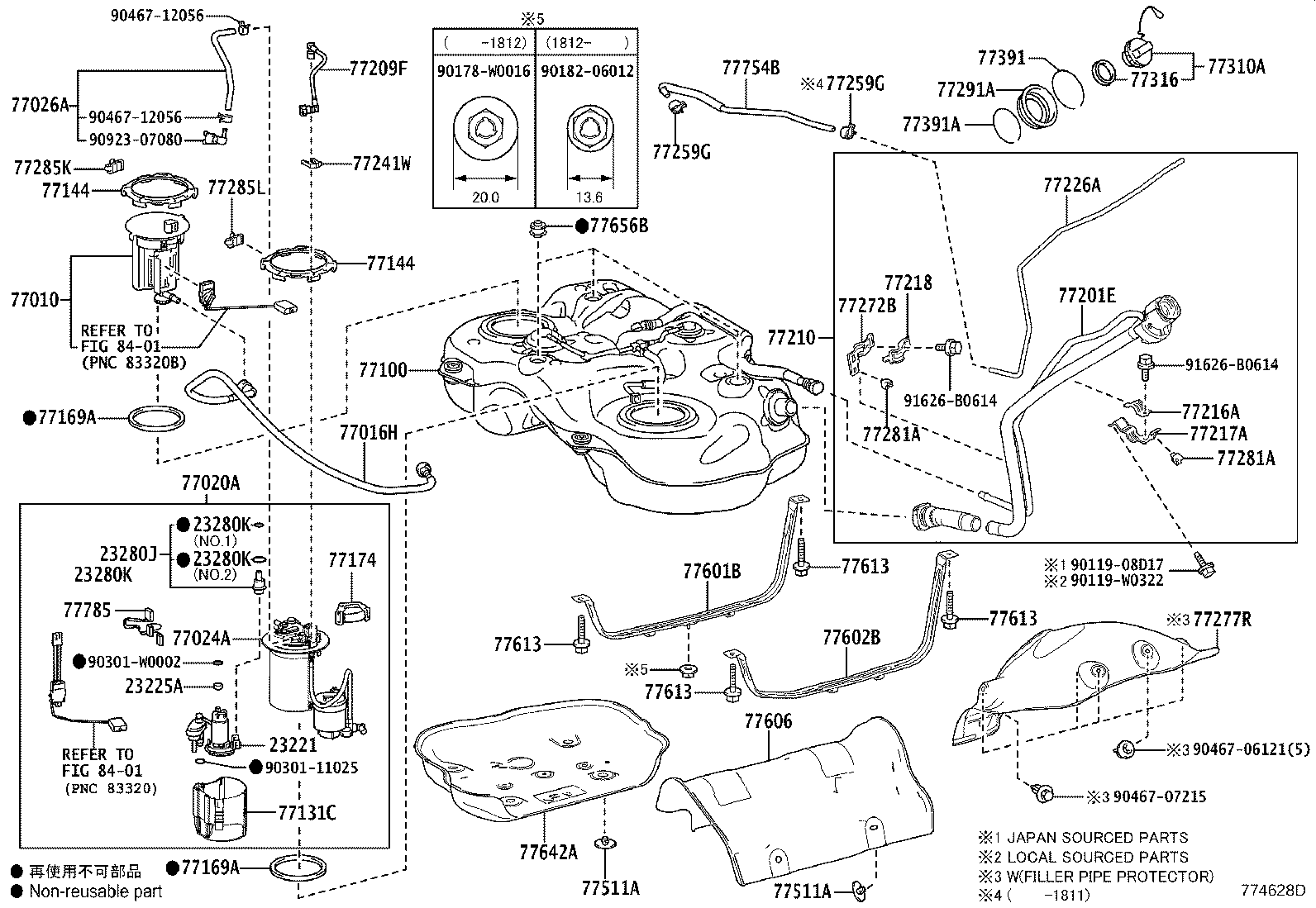

ILLUST NO. 1 OF 3(1805-1809)NGX50
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0Y100 |
8NRFTS..NGX50 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0T010 |
8NRFTS,3ZRFAE..NGX10,50,ZGX10 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-36020 |
8NRFTS..NGX10,50 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-F4010 |
NGX50 |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-F4010 |
NGX50 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-F4050 |
NGX50 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-F4020 |
NGX50 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-F4020 |
NGX50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4110 |
NGX50 |
1 | ||
| 77001-F4040 |
NGX50 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-F4020 |
NGX50 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4010 |
NGX50 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4010 |
NGX50 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-F4010 |
NGX50 |
2 | ||
| 77169-F4050 |
NGX50 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-F4010 |
NGX50 |
2 | ||
| 77169-F4050 |
NGX50 |
2 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-05010 |
NGX10,50 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-F4030 |
NGX50 |
1 | ||
| 77201-F4070 |
NGX50 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-F4130 |
NGX50 |
1 | ||
| 77209-F4040 |
NGX50 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-F4090 |
NGX50 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-F4020 |
NGX50 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-F4020 |
NGX50 |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77218-F4020 |
NGX50 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-F4040 |
NGX50 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-W0006 |
NGX10,50,ZGX10 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-W0006 |
NGX10,50,ZGX10 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-F4020 |
NGX50 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-F4010 |
NGX10,50,ZGX10,ZYX10..D,G,N |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
NGX50 |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
NGX50 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
NGX50,ZYX10 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10070 |
NGX50 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-F4010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77300-12020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77316-52040 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-75010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX50 |
8 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX50 |
8 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-F4020 |
NGX50 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-F4020 |
NGX50 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-F4010 |
NGX50 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-F4010 |
NGX50 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
NGX50 |
3 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-F4020 |
NGX50 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02081 |
NGX10,50 (L) |
1 | ||
| 77785-12010 |
NGX10,50 (J) |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-W0322 | ||||
| 90178-W0016 | ||||
| 90301-W0002 | ||||
| 90467-06121 | ||||
| 90467-07215 | ||||
| 90467-12056 | ||||
| 90923-07080 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

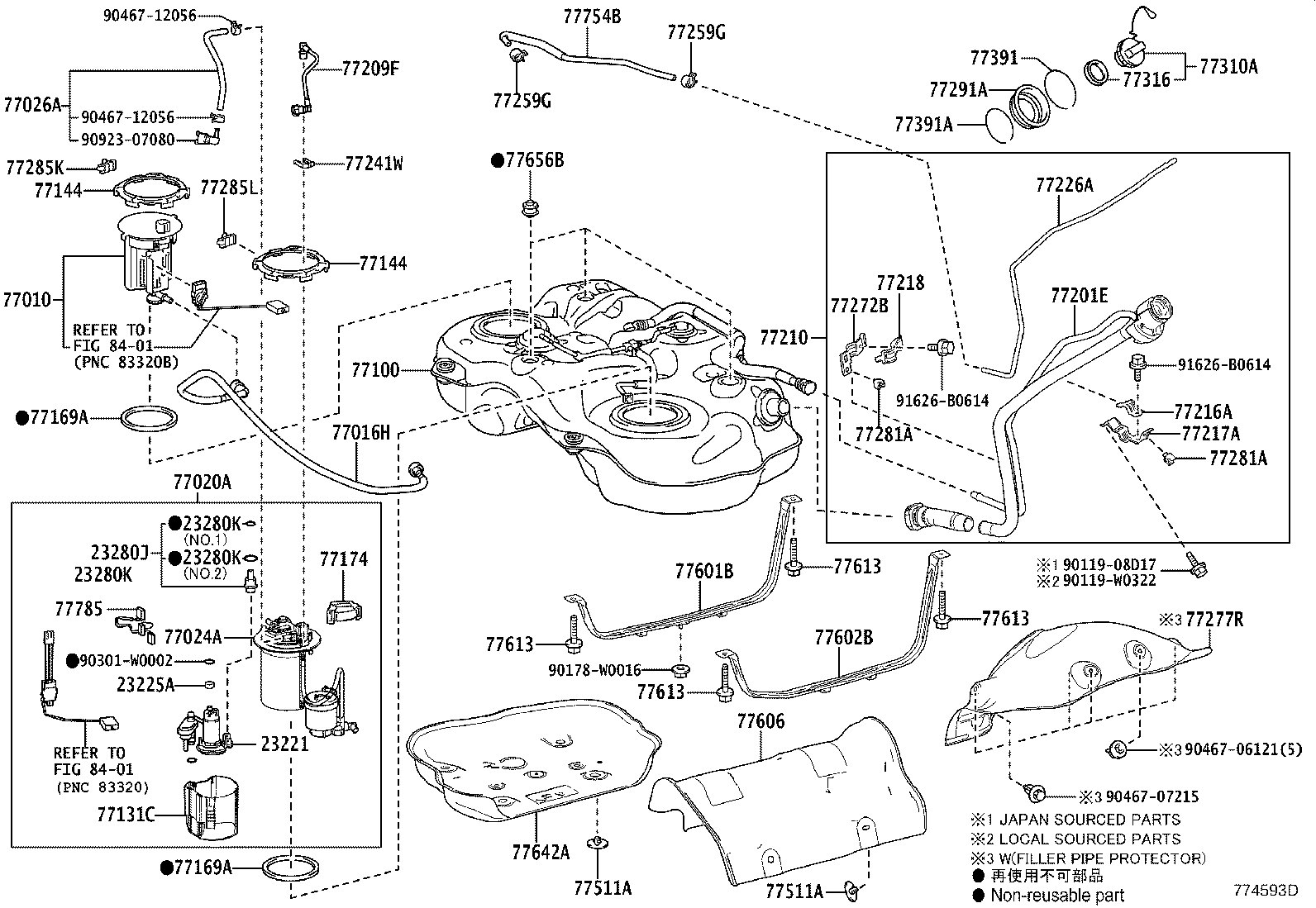

ILLUST NO. 1 OF 3(1809- )NGX50
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0Y100 |
8NRFTS..NGX50 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0T010 |
8NRFTS,3ZRFAE..NGX10,50,ZGX10 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-36020 |
8NRFTS..NGX10,50 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-F4010 |
NGX50 |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-F4010 |
NGX50 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-F4050 |
NGX50 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-F4020 |
NGX50 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-F4020 |
NGX50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4110 |
NGX50 |
1 | ||
| 77001-F4040 |
NGX50 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-F4020 |
NGX50 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4010 |
NGX50 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4010 |
NGX50 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-F4010 |
NGX50 |
2 | ||
| 77169-F4050 |
NGX50 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-F4010 |
NGX50 |
2 | ||
| 77169-F4050 |
NGX50 |
2 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-05010 |
NGX10,50 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-F4070 |
NGX50 |
1 | ||
| 77201-F4030 |
NGX50 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-F4130 |
NGX50 |
1 | ||
| 77209-F4040 |
NGX50 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-F4090 |
NGX50 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-F4020 |
NGX50 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-F4020 |
NGX50 |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77218-F4020 |
NGX50 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-F4040 |
NGX50 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-W0006 |
NGX10,50,ZGX10 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-W0006 |
NGX10,50,ZGX10 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-F4020 |
NGX50 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-F4010 |
NGX10,50,ZGX10,ZYX10..D,G,N |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
NGX50 |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
NGX50 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
NGX50,ZYX10 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10070 |
NGX50 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-F4010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77300-12020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77316-52040 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-75010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX50 |
8 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX50 |
8 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-F4020 |
NGX50 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-F4020 |
NGX50 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-F4010 |
NGX50 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-F4010 |
NGX50 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
NGX50 |
3 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-F4020 |
NGX50 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02081 |
NGX10,50 (L) |
1 | ||
| 77785-12010 |
NGX10,50 (J) |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-W0322 | ||||
| 90178-W0016 | ||||
| 90182-06012 | ||||
| 90301-11025 | ||||
| 90301-W0002 | ||||
| 90467-06121 | ||||
| 90467-07215 | ||||
| 90467-12056 | ||||
| 90923-07080 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

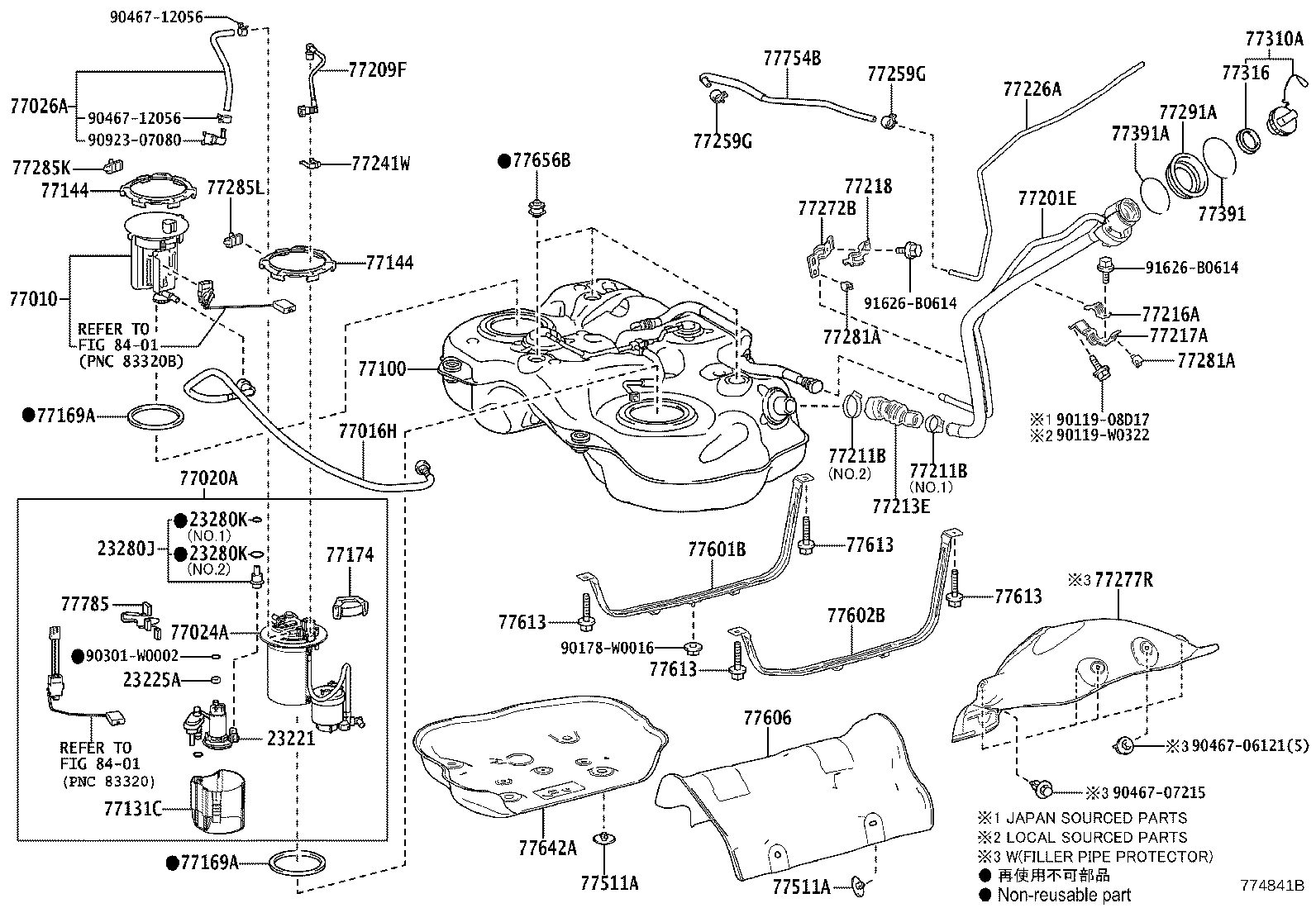

ILLUST NO. 1 OF 3(1610-1805)NGX50
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0Y100 |
8NRFTS..NGX50 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0T010 |
8NRFTS,3ZRFAE..NGX10,50,ZGX10 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-36020 |
8NRFTS..NGX10,50 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8NRFTS,2ZRFXE,3ZRFAE..NGX10,50,ZGX10,ZYX10 NO.2:REFER ILLUST. |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-F4010 |
NGX50 |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-F4010 |
NGX50 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-F4050 |
NGX50 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-F4020 |
NGX50 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-F4020 |
NGX50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-F4110 |
NGX50 |
1 | ||
| 77001-F4040 |
NGX50 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-F4020 |
NGX50 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4010 |
NGX50 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4010 |
NGX50 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-F4010 |
NGX50 |
2 | ||
| 77169-F4050 |
NGX50 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-F4010 |
NGX50 |
2 | ||
| 77169-F4050 |
NGX50 |
2 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-05010 |
NGX10,50 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-F4030 |
NGX50 |
1 | ||
| 77201-F4070 |
NGX50 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-F4130 |
NGX50 |
1 | ||
| 77209-F4040 |
NGX50 |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-40007 |
NGX50 NO.1:REFER ILLUST. |
1 | ||
| 90460-50008 |
NGX50 NO.2:REFER ILLUST. |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-40007 |
NGX50 NO.1:REFER ILLUST. |
1 | ||
| 90460-50008 |
NGX50 NO.2:REFER ILLUST. |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-47120 |
NGX50 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-F4020 |
NGX50 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-F4020 |
NGX50 |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77218-F4020 |
NGX50 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-F4040 |
NGX50 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-W0006 |
NGX10,50,ZGX10 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-W0006 |
NGX10,50,ZGX10 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-F4020 |
NGX50 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-F4010 |
NGX10,50,ZGX10,ZYX10..D,G,N |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
NGX50 |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
NGX50 |
2 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
NGX50,ZYX10 |
1 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10070 |
NGX50 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-F4010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77300-12020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77316-52040 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-75010 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NGX10,50,ZGX10,ZYX10 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX50 |
8 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
NGX50 |
8 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-F4020 |
NGX50 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-F4020 |
NGX50 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-F4010 |
NGX50 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
NGX10,50,ZGX10 (J) |
4 | ||
| 90119-W0120 |
NGX10,50,ZGX10 (L) |
4 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-F4010 |
NGX50 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
NGX50 |
3 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-F4020 |
NGX50 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02081 |
NGX10,50 (L) |
1 | ||
| 77785-12010 |
NGX10,50 (J) |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-W0322 | ||||
| 90178-W0016 | ||||
| 90301-W0002 | ||||
| 90467-06121 | ||||
| 90467-07215 | ||||
| 90467-12056 | ||||
| 90923-07080 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
