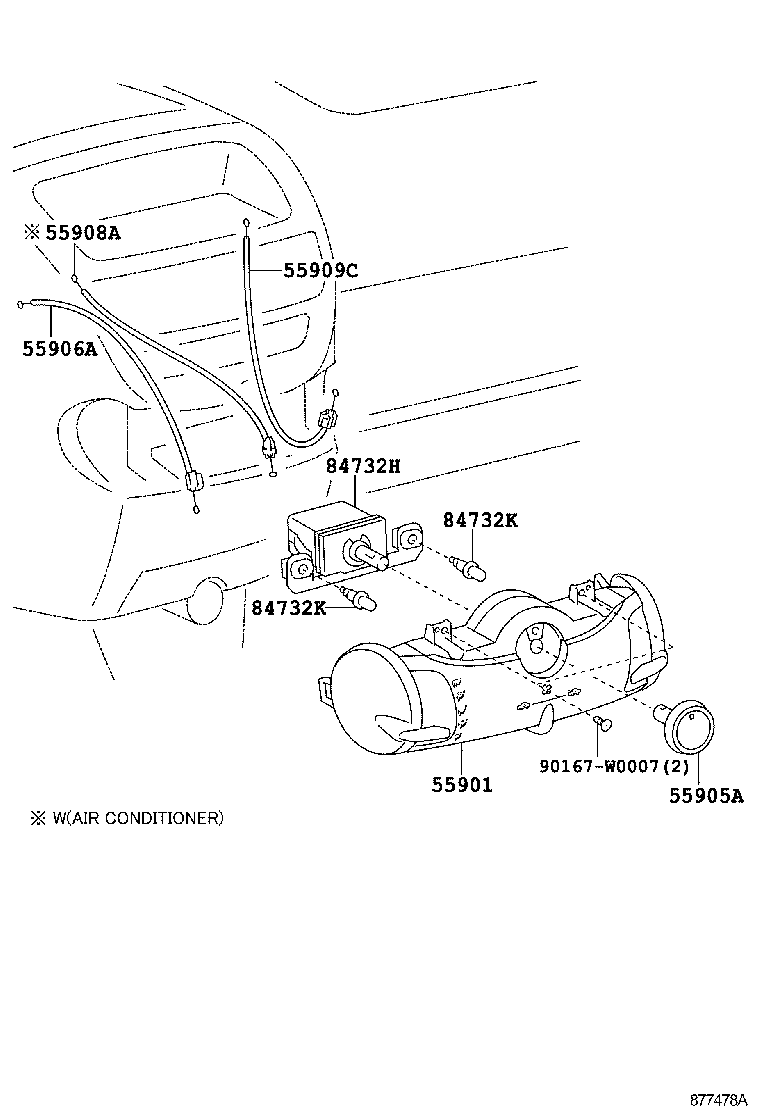

Toyota Aygo WNB10 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty
55901 - BASE SUB-ASSY, HEATER CONTROL
55901-0H030	WNB10	12/2008 - 09/2010	1
55901-0H010	KGB10,WNB10	02/2005 - 12/2008	1
55901-0H020	KGB10,WNB10 FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
55901-0H040	WNB10 FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
55905A - KNOB, HEATER CONTROL
55905-0H010	KGB10,WNB10	02/2005 - 12/2008	1
55905-0H010	WNB10	12/2008 - 09/2010	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0H010	WNB10	12/2008 - 09/2010	1
55906-0H010	KGB10,WNB10	02/2005 - 12/2008	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0H010	WNB10 FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
55908-0H010	KGB10,WNB10 FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0H010	KGB10,WNB10	02/2005 - 12/2008	1
55909-0H010	WNB10	12/2008 - 09/2010	1
84732H - SWITCH, HEATER BLOWER
84732-02040	KGB10,WNB10	02/2005 - 12/2008	1
84732-02040	WNB10	12/2008 - 09/2010	1
84732K - BULB, HEATER BLOWER SWITCH
81936-0H010	KGB10,WNB10 12V 0.6W	02/2005 - 12/2008	2
81936-0H010	WNB10 12V 0.6W	12/2008 - 09/2010	2
84732K - BULB, HEATER BLOWER SWITCH
81936-0H010	KGB10,WNB10 12V 0.6W	02/2005 - 12/2008	2
81936-0H010	WNB10 12V 0.6W	12/2008 - 09/2010	2
Common parts
90167-W0007

WNB10R-AHMGXW (2005)
