Toyota Aygo WNB10 HEATING & AIR CONDITIONING - COOLER UNIT

WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010

Engine 2WZTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

W(AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0H040	WNB10	05/2005 - 12/2008	1
87050-0H050	WNB10..RHD FRONT AIR CONDITIONER-WITH	05/2005 - 12/2008	1
87050-0H040	WNB10	12/2008 - 09/2010	1
87050-0H050	WNB10..RHD FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0H040	WNB10..RHD	12/2008 - 09/2010	1
87103-0H030	KGB10,WNB10..RHD FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
87103-0H030	WNB10..RHD FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
87103-0H040	KGB10,WNB10..RHD	02/2005 - 12/2008	1
87138C - RESISTOR, BLOWER
87138-0H010	KGB10,WNB10	02/2005 - 12/2008	1
87138-0H010	WNB10	12/2008 - 09/2010	1
87210F - CASE ASSY, AIR DAMPER
87210-0H030	WNB10..RHD FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
87210-0H040	KGB10,WNB10..RHD	02/2005 - 12/2008	1
87210-0H030	KGB10,WNB10..RHD FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
87210-0H040	WNB10..RHD	12/2008 - 09/2010	1
88508C - FILTER SUB-ASSY, AIR
88508-0H010	KGB10,WNB10 FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
88508-0H010	WNB10 FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
88510 - UNIT ASSY, COOLER
88510-0H040	WNB10 FRONT AIR CONDITIONER-WITH	05/2005 - 12/2008	1
88510-0H040	WNB10 FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
88515 - VALVE, COOLER EXPANSION
88515-0H010	WNB10 FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
88515-0H010	KGB10,WNB10 FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
Common parts
90159-60383
90159-60602
90182-W0010

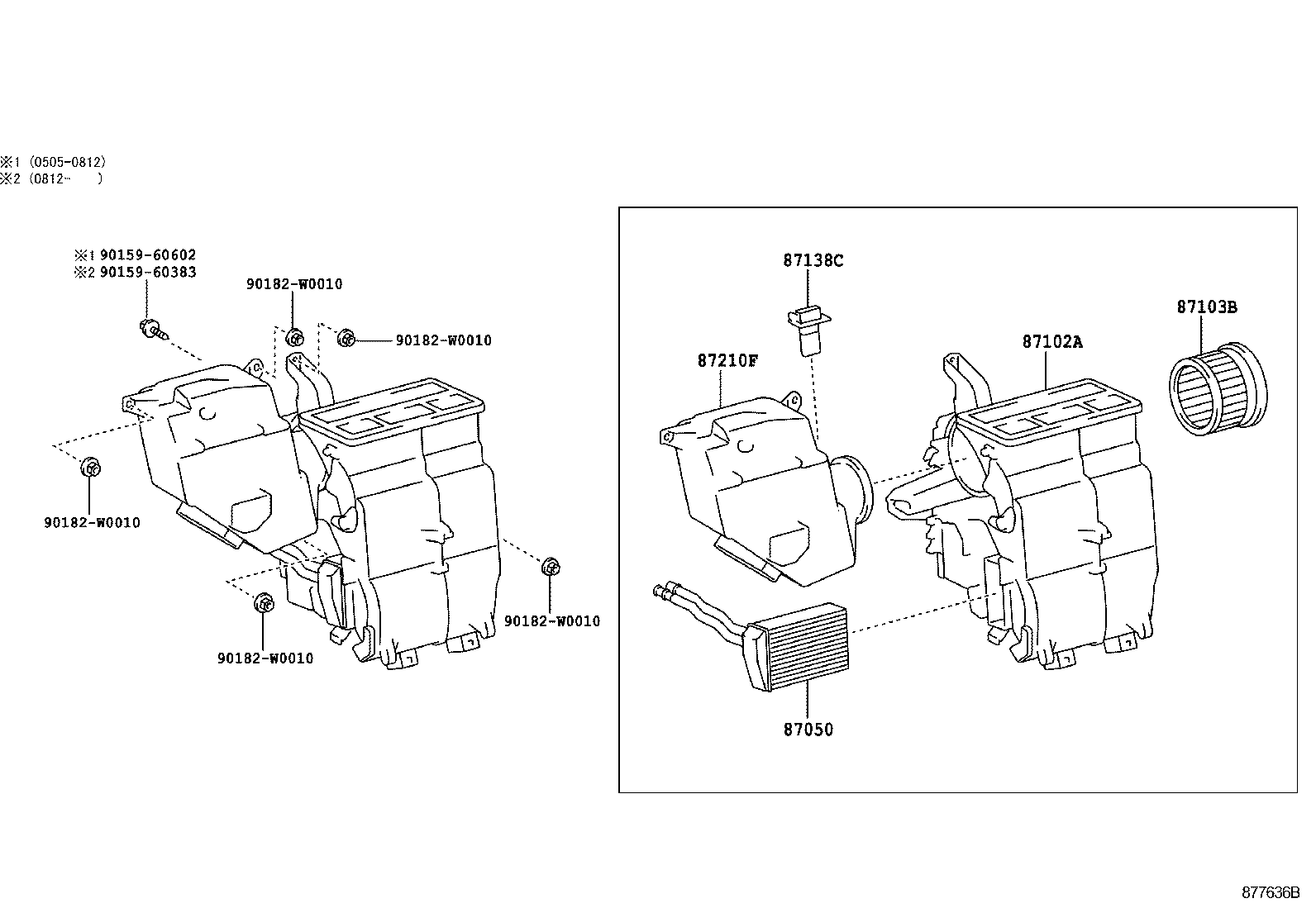

Click highlighted areas on diagram

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0H040	WNB10	05/2005 - 12/2008	1
87050-0H050	WNB10..RHD FRONT AIR CONDITIONER-WITH	05/2005 - 12/2008	1
87050-0H040	WNB10	12/2008 - 09/2010	1
87050-0H050	WNB10..RHD FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
87102A - CASE SUB-ASSY, RADIATOR
87102-0H040	WNB10	05/2005 - 12/2008	1
87102-0H040	WNB10	12/2008 - 09/2010	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0H040	WNB10..RHD	12/2008 - 09/2010	1
87103-0H030	KGB10,WNB10..RHD FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
87103-0H030	WNB10..RHD FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
87103-0H040	KGB10,WNB10..RHD	02/2005 - 12/2008	1
87138C - RESISTOR, BLOWER
87138-0H010	KGB10,WNB10	02/2005 - 12/2008	1
87138-0H010	WNB10	12/2008 - 09/2010	1
87210F - CASE ASSY, AIR DAMPER
87210-0H030	WNB10..RHD FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
87210-0H040	KGB10,WNB10..RHD	02/2005 - 12/2008	1
87210-0H030	KGB10,WNB10..RHD FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
87210-0H040	WNB10..RHD	12/2008 - 09/2010	1
Common parts
90159-60383
90159-60602
90182-W0010
