Toyota Aygo WNB10 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
EU
AYGO
WNB10R-AHMGXW (2005)
8401 - SWITCH & RELAY & COMPUTER

WNB10R-AHMGXW (2005)

Toyota Aygo

Production May 2005 - Sep 2010

Engine 2WZTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

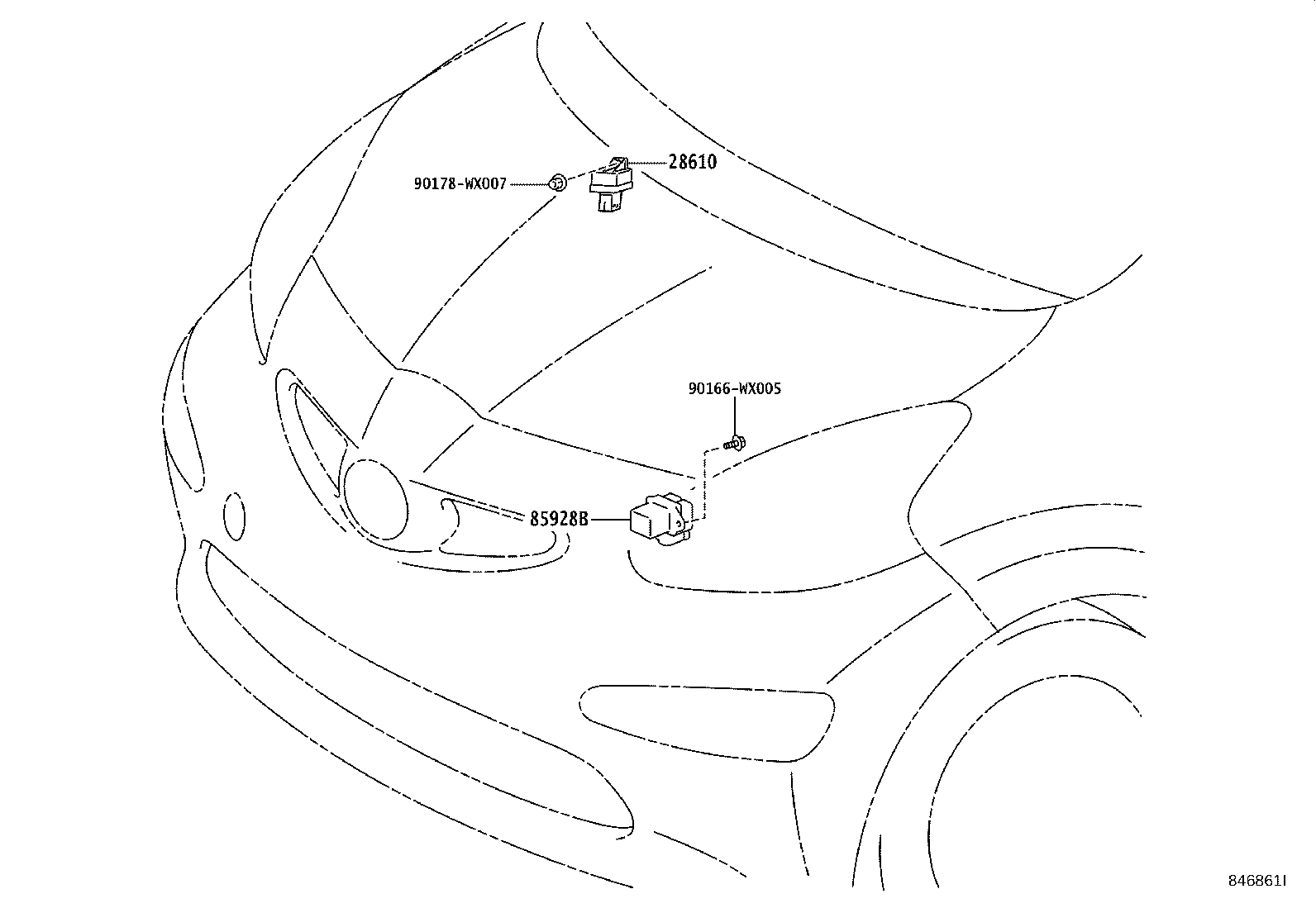

ILLUST NO. 2 OF 8(0502- )

Click highlighted areas on diagram

ENGINE ROOM 1/2

Part #	Description	Period	Qty
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-YV010	2WZTV..WNB10	05/2005 - 12/2008	1
28610-YV010	2WZTV..WNB10	12/2008 - 09/2010	1
85928B - RESISTOR, COOLING FAN
85928-YV010	WNB10 FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
85928-YV010	WNB10 FRONT AIR CONDITIONER-WITH	05/2005 - 12/2008	1
Common parts
90166-WX005
90178-WX007

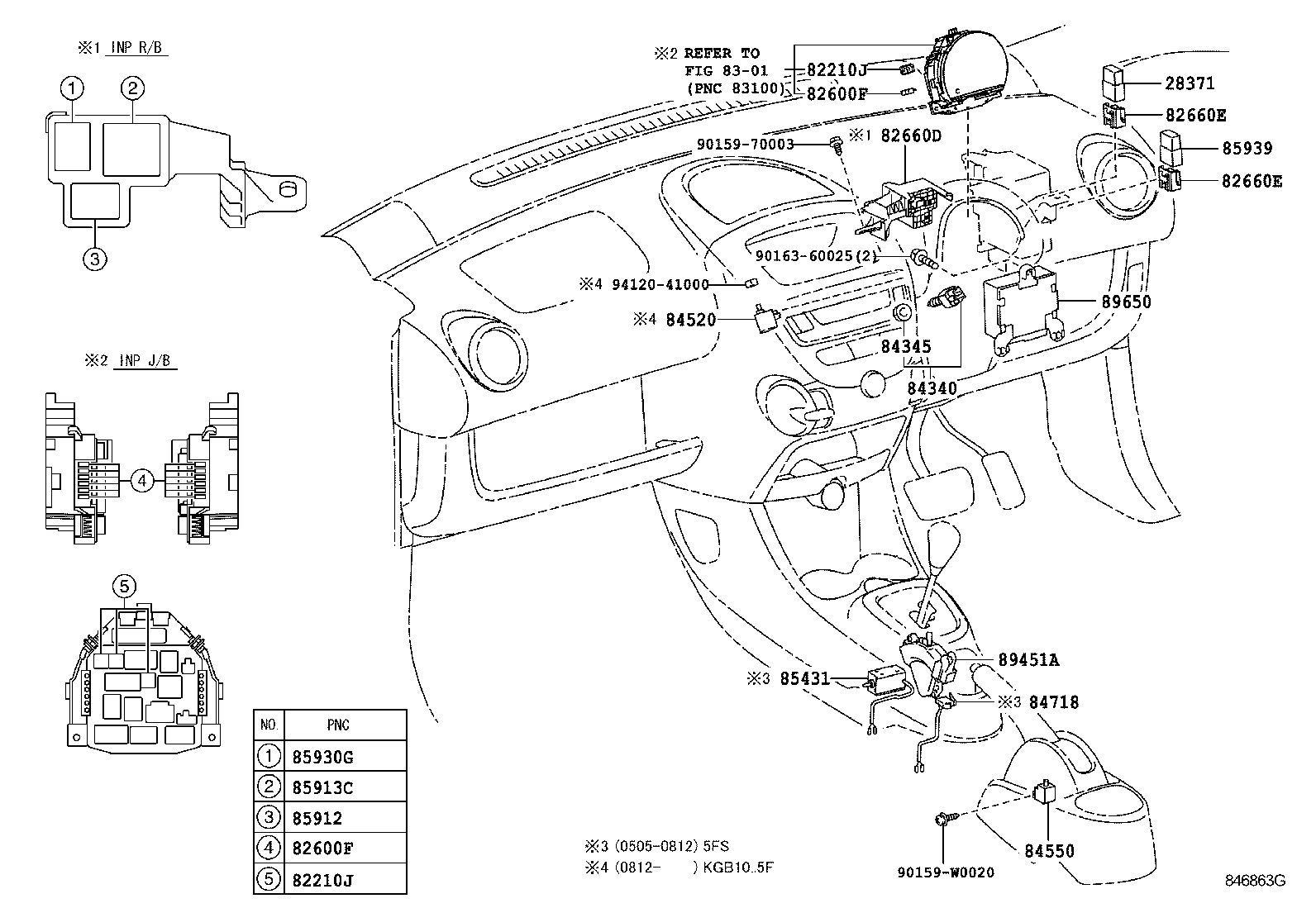

ILLUST NO. 4 OF 8(0502-1202)RHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28371 - RELAY, IGNITION, NO.1
90080-87019	1KRFE,2WZTV..KGB10,WNB10	02/2005 - 12/2008	1
90080-87019	2WZTV..WNB10	12/2008 - 09/2010	1
82210J - FUSIBLE LINK
90982-08296	WNB10 50A,TERM.:FEMALE,RED	12/2008 - 09/2010	1
90982-08295	KGB10,WNB10 30A,TERM.:FEMALE,PNK	02/2005 - 12/2008	1
90982-08295	WNB10 30A,TERM.:FEMALE,PNK	12/2008 - 09/2010	1
90982-08294	WNB10 40A,TERM.:FEMALE,GRN	12/2008 - 09/2010	1
90982-08296	KGB10,WNB10 50A,TERM.:FEMALE,RED	02/2005 - 12/2008	1
90982-08297	KGB10,WNB10 125A,PINK	02/2005 - 12/2008	1
90982-08294	KGB10,WNB10 40A,TERM.:FEMALE,GRN	02/2005 - 12/2008	1
90982-08297	WNB10 125A,PINK	12/2008 - 09/2010	1
82210J - FUSIBLE LINK
90982-08296	WNB10 50A,TERM.:FEMALE,RED	12/2008 - 09/2010	1
90982-08295	KGB10,WNB10 30A,TERM.:FEMALE,PNK	02/2005 - 12/2008	1
90982-08295	WNB10 30A,TERM.:FEMALE,PNK	12/2008 - 09/2010	1
90982-08294	WNB10 40A,TERM.:FEMALE,GRN	12/2008 - 09/2010	1
90982-08296	KGB10,WNB10 50A,TERM.:FEMALE,RED	02/2005 - 12/2008	1
90982-08297	KGB10,WNB10 125A,PINK	02/2005 - 12/2008	1
90982-08294	KGB10,WNB10 40A,TERM.:FEMALE,GRN	02/2005 - 12/2008	1
90982-08297	WNB10 125A,PINK	12/2008 - 09/2010	1
82600F - FUSE, FUSE BLOCK
90080-82023	KGB10,WNB10 20A,MINI FUSE,YELLOW	02/2005 - 12/2008	1
90080-82021	WNB10 10A,MINI FUSE,RED	12/2008 - 09/2010	1
90080-82022	KGB10,WNB10 15A,MINI FUSE,BLUE	02/2005 - 12/2008	1
90080-82020	KGB10,WNB10 7.5A,MINI FUSE,BROWN	02/2005 - 12/2008	1
90080-82024	KGB10,WNB10 30A,MINI FUSE,GREEN	02/2005 - 12/2008	1
90080-82021	KGB10,WNB10 10A,MINI FUSE,RED	02/2005 - 12/2008	1
90080-82022	WNB10 15A,MINI FUSE,BLUE	12/2008 - 09/2010	1
90080-82033	WNB10 25A,MINI FUSE	12/2008 - 09/2010	1
90080-82033	KGB10,WNB10 25A,MINI FUSE	02/2005 - 12/2008	1
90080-82020	WNB10 7.5A,MINI FUSE,BROWN	12/2008 - 09/2010	1
90080-82024	WNB10 30A,MINI FUSE,GREEN	12/2008 - 09/2010	1
90080-82023	WNB10 20A,MINI FUSE,YELLOW	12/2008 - 09/2010	1
82600F - FUSE, FUSE BLOCK
90080-82023	KGB10,WNB10 20A,MINI FUSE,YELLOW	02/2005 - 12/2008	1
90080-82021	WNB10 10A,MINI FUSE,RED	12/2008 - 09/2010	1
90080-82022	KGB10,WNB10 15A,MINI FUSE,BLUE	02/2005 - 12/2008	1
90080-82020	KGB10,WNB10 7.5A,MINI FUSE,BROWN	02/2005 - 12/2008	1
90080-82024	KGB10,WNB10 30A,MINI FUSE,GREEN	02/2005 - 12/2008	1
90080-82021	KGB10,WNB10 10A,MINI FUSE,RED	02/2005 - 12/2008	1
90080-82022	WNB10 15A,MINI FUSE,BLUE	12/2008 - 09/2010	1
90080-82033	WNB10 25A,MINI FUSE	12/2008 - 09/2010	1
90080-82033	KGB10,WNB10 25A,MINI FUSE	02/2005 - 12/2008	1
90080-82020	WNB10 7.5A,MINI FUSE,BROWN	12/2008 - 09/2010	1
90080-82024	WNB10 30A,MINI FUSE,GREEN	12/2008 - 09/2010	1
90080-82023	WNB10 20A,MINI FUSE,YELLOW	12/2008 - 09/2010	1
82660D - BLOCK ASSY, RELAY
82660-0H040	KGB10,WNB10..RHD	02/2005 - 12/2008	1
82660-0H040	WNB10..RHD	12/2008 - 09/2010	1
82660E - BLOCK ASSY, RELAY
82660-20340	WNB10;KGB10..RHD;KGB10..LHD..LV1	02/2005 - 12/2008	2
82660-20340	WNB10	12/2008 - 09/2010	2
82660E - BLOCK ASSY, RELAY
82660-20340	WNB10;KGB10..RHD;KGB10..LHD..LV1	02/2005 - 12/2008	2
82660-20340	WNB10	12/2008 - 09/2010	2
84340 - SWITCH ASSY, STOP LAMP
84340-09020	WNB10;KGB10..5FS	05/2005 - 12/2008	1
84340-09020	WNB10	12/2008 - 09/2010	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-51010	WNB10	12/2008 - 09/2010	1
84345-51010	KGB10,WNB10	02/2005 - 12/2008	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-0H010	KGB10,WNB10	02/2005 - 12/2008	1
85912 - RELAY, DEFOGGER
90080-87019	KGB10,WNB10	02/2005 - 12/2008	1
90080-87019	WNB10	12/2008 - 09/2010	1
85913C - RELAY, HEATER, NO.1
90080-87031	KGB10,WNB10	02/2005 - 12/2008	1
90080-87031	WNB10	12/2008 - 09/2010	1
85930G - RELAY, ACC
90080-87019	KGB10,WNB10	02/2005 - 12/2008	1
90080-87019	WNB10	12/2008 - 09/2010	1
85939 - RELAY, POWER WINDOW
90080-87019	KGB10,WNB10..LV1	02/2005 - 12/2008	1
90080-87019	WNB10	12/2008 - 09/2010	1
89650 - COMPUTER ASSY, POWER STEERING
89650-0H040	WNB10..RHD	05/2005 - 12/2008	1
89650-0H040	WNB10..RHD	12/2008 - 09/2010	1
Common parts
90159-70003
90159-W0020
90163-60025
94120-41000
Linked diagrams
8301

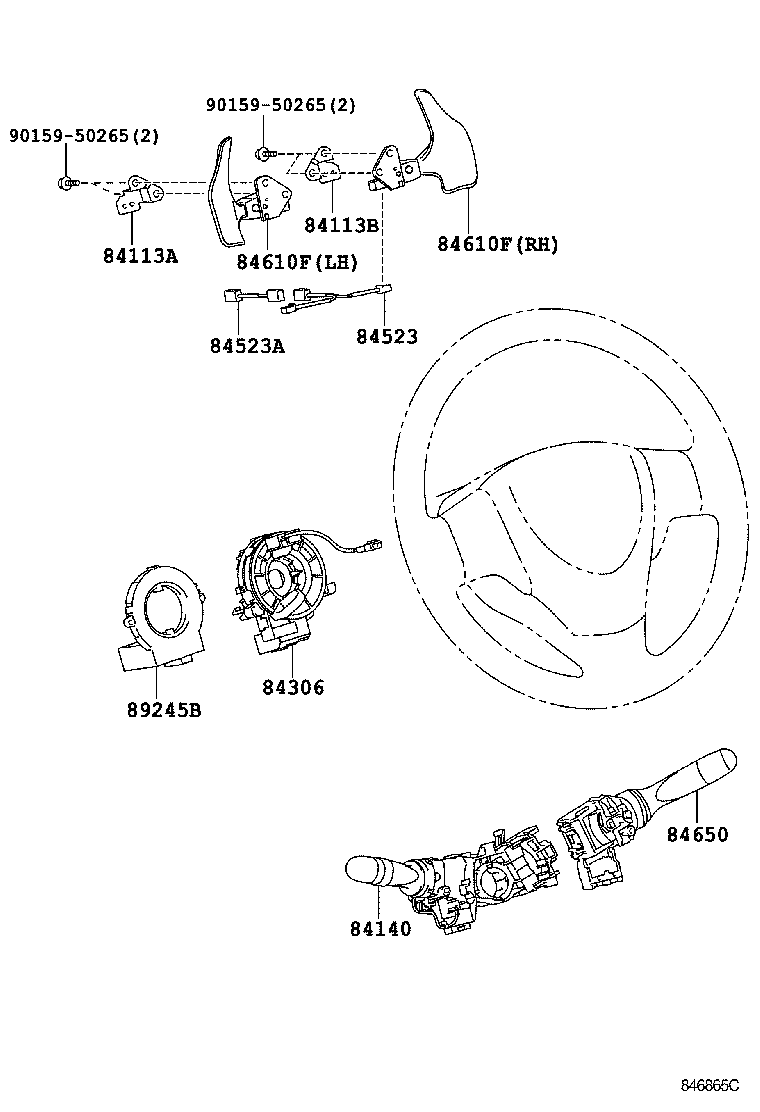

ILLUST NO. 7 OF 8(0502- )

Click highlighted areas on diagram

CONBINATION SWITCH

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-0H010	KGB10,WNB10	02/2005 - 12/2008	1
84140-0H010	WNB10	12/2008 - 09/2010	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0H010	KGB10,WNB10	02/2005 - 12/2008	1
84306-0H010	WNB10	12/2008 - 09/2010	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-0H010	KGB10,WNB10	02/2005 - 12/2008	1
84652-0H010	WNB10	12/2008 - 09/2010	1
89245B - SENSOR, STEERING
89245-0H010	KGB10,WNB10 WITH(VSC)	03/2007 - 12/2008	1
Common parts
90159-50265

ILLUST NO. 8 OF 8(0502- )

Click highlighted areas on diagram

ROOF,FLOOR,DOOR,SEAT & LUGGAGE

Part #	Description	Period	Qty
84231A - SWITCH, COURTESY LAMP
84231-0D030	KGB10,WNB10	02/2005 - 12/2008	1
84231-0D030	WNB10	12/2008 - 09/2010	1
84231A - SWITCH, COURTESY LAMP
84231-0D030	KGB10,WNB10	02/2005 - 12/2008	1
84231-0D030	WNB10	12/2008 - 09/2010	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0H010	KGB10,WNB10..LV1	02/2005 - 12/2008	2
84810-0H010	WNB10	12/2008 - 09/2010	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0H010	KGB10,WNB10..LV1	02/2005 - 12/2008	2
84810-0H010	WNB10	12/2008 - 09/2010	2
Common parts
90901-48003

ILLUST NO. 6 OF 8(0502- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
55538G - COVER, COOLER SWITCH HOLE
55538-0H010B0	KGB10,WNB10 DARK GREY,TRIM1#	02/2005 - 12/2008	1
69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH
69065-0H010A0	KGB10,WNB10 XXXX	02/2005 - 12/2008	1
84152 - SWITCH, HEADLAMP LEVELING
84152-0H010	KGB10,WNB10	02/2005 - 12/2008	1
84152-0H010	WNB10	12/2008 - 09/2010	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-0H010	KGB10,WNB10	02/2005 - 12/2008	1
84660C - SWITCH, COOLER
84660-0H010B0	KGB10,WNB10 FRONT AIR CONDITIONER-WITH,DARK GREY,TRIM1#	02/2005 - 12/2008	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-0H010	KGB10,WNB10	02/2005 - 12/2008	1
84790-0H010	WNB10	12/2008 - 09/2010	1
85530E - SOCKET ASSY, POWER OUTLET, NO.3
85530-0H010B0	KGB10,WNB10 DARK GREY	02/2005 - 12/2008	1

ILLUST NO. 1 OF 8(0502- )WNB10

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
SU001-00591	WNB10	12/2008 - 09/2010	1
SU001-00591	WNB10	05/2005 - 12/2008	1
89491E - SENSOR, ENGINE OIL LEVEL & TEMPERATURE
SU001-00723	WNB10	05/2005 - 12/2008	1
SU001-00723	WNB10	12/2008 - 09/2010	1
Common parts
82715-70020
SU001-00819

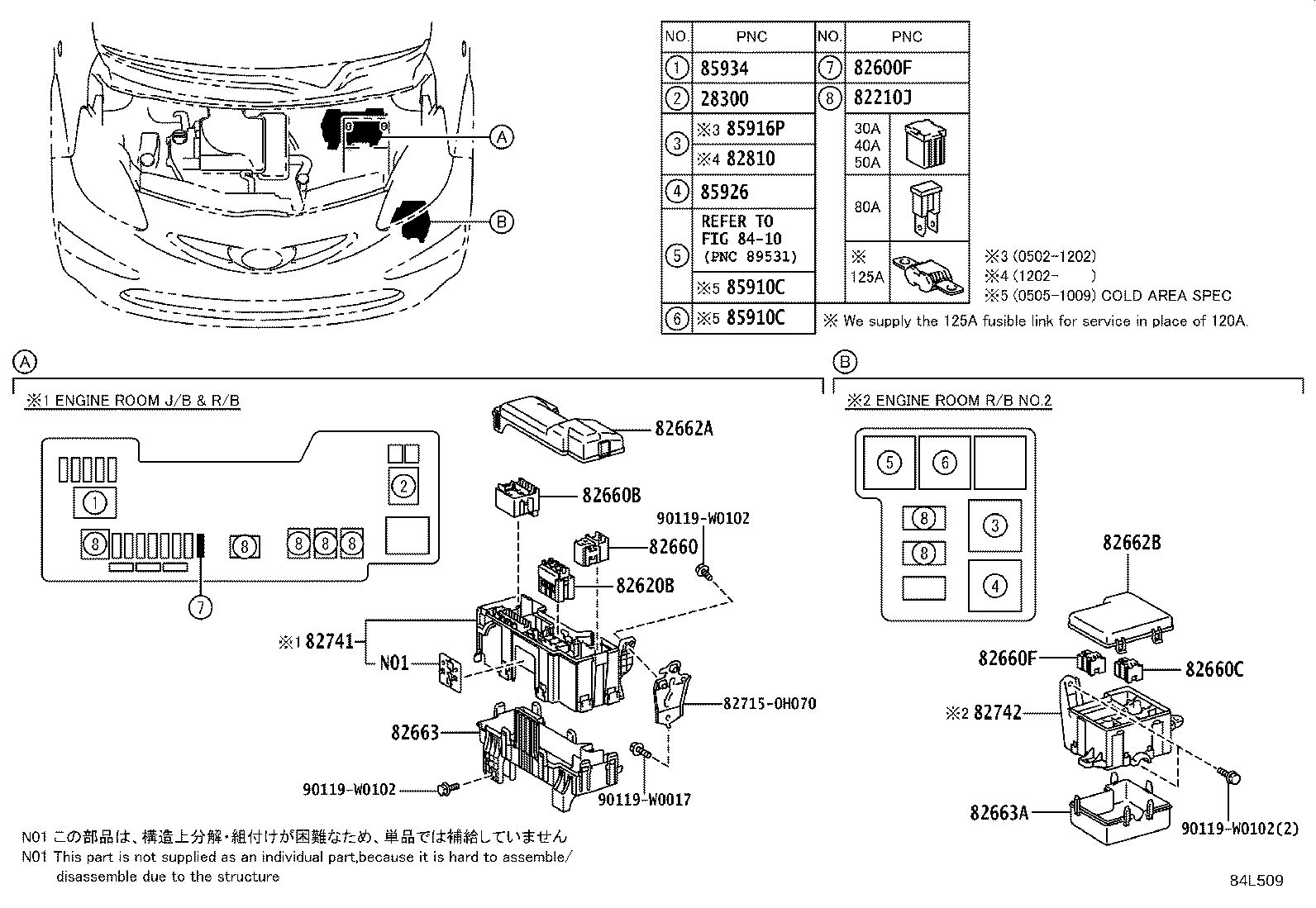

ILLUST NO. 3 OF 8(0502- )

Click highlighted areas on diagram

ENGINE ROOM 2/2

Part #	Description	Period	Qty
82210J - FUSIBLE LINK
90982-08296	WNB10 50A,TERM.:FEMALE,RED	12/2008 - 09/2010	1
90982-08295	KGB10,WNB10 30A,TERM.:FEMALE,PNK	02/2005 - 12/2008	1
90982-08295	WNB10 30A,TERM.:FEMALE,PNK	12/2008 - 09/2010	1
90982-08294	WNB10 40A,TERM.:FEMALE,GRN	12/2008 - 09/2010	1
90982-08296	KGB10,WNB10 50A,TERM.:FEMALE,RED	02/2005 - 12/2008	1
90982-08297	KGB10,WNB10 125A,PINK	02/2005 - 12/2008	1
90982-08294	KGB10,WNB10 40A,TERM.:FEMALE,GRN	02/2005 - 12/2008	1
90982-08297	WNB10 125A,PINK	12/2008 - 09/2010	1
82600F - FUSE, FUSE BLOCK
90080-82023	KGB10,WNB10 20A,MINI FUSE,YELLOW	02/2005 - 12/2008	1
90080-82021	WNB10 10A,MINI FUSE,RED	12/2008 - 09/2010	1
90080-82022	KGB10,WNB10 15A,MINI FUSE,BLUE	02/2005 - 12/2008	1
90080-82020	KGB10,WNB10 7.5A,MINI FUSE,BROWN	02/2005 - 12/2008	1
90080-82024	KGB10,WNB10 30A,MINI FUSE,GREEN	02/2005 - 12/2008	1
90080-82021	KGB10,WNB10 10A,MINI FUSE,RED	02/2005 - 12/2008	1
90080-82022	WNB10 15A,MINI FUSE,BLUE	12/2008 - 09/2010	1
90080-82033	WNB10 25A,MINI FUSE	12/2008 - 09/2010	1
90080-82033	KGB10,WNB10 25A,MINI FUSE	02/2005 - 12/2008	1
90080-82020	WNB10 7.5A,MINI FUSE,BROWN	12/2008 - 09/2010	1
90080-82024	WNB10 30A,MINI FUSE,GREEN	12/2008 - 09/2010	1
90080-82023	WNB10 20A,MINI FUSE,YELLOW	12/2008 - 09/2010	1
82660B - BLOCK ASSY, RELAY
82660-0H060	WNB10;KGB10..RHD;KGB10..LHD..LV1	02/2005 - 12/2008	1
82660-0H060	KGB10,WNB10..LV1 WITH(VSC)	03/2007 - 12/2008	1
82660-0H060	WNB10	12/2008 - 09/2010	1
82660-0H060	WNB10 WITH(VSC)&FRONT AIR CONDITIONER-WITH	03/2007 - 12/2008	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-0H010	KGB10,WNB10	02/2005 - 12/2008	1
82662-0H010	WNB10 WITH(VSC)&FRONT AIR CONDITIONER-WITH	03/2007 - 12/2008	1
82662-0H010	WNB10	12/2008 - 09/2010	1
82662-0H010	KGB10,WNB10..LV1 WITH(VSC)	03/2007 - 12/2008	1
82663 - COVER, RELAY BLOCK, LOWER
82663-0H010	KGB10,WNB10	02/2005 - 12/2008	1
82663-0H010	KGB10,WNB10..LV1 WITH(VSC)	03/2007 - 12/2008	1
82663-0H010	WNB10 WITH(VSC)&FRONT AIR CONDITIONER-WITH	03/2007 - 12/2008	1
82663-0H010	WNB10	12/2008 - 09/2010	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-0H020	WNB10	05/2005 - 12/2008	1
82741-0H020	WNB10 WITH(VSC)&FRONT AIR CONDITIONER-WITH	03/2007 - 12/2008	1
82741-0H020	WNB10	12/2008 - 09/2010	1
82741-0H020	WNB10 WITH(VSC)	03/2007 - 12/2008	1
85934 - RELAY, MAGNET-CLUTCH
90987-02028	KGB10,WNB10 FRONT AIR CONDITIONER-WITH	02/2005 - 12/2008	1
90987-02028	WNB10 FRONT AIR CONDITIONER-WITH	12/2008 - 09/2010	1
Common parts
82715-0H070
90119-W0017
90119-W0102
Linked diagrams
8410
