WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502-0812)

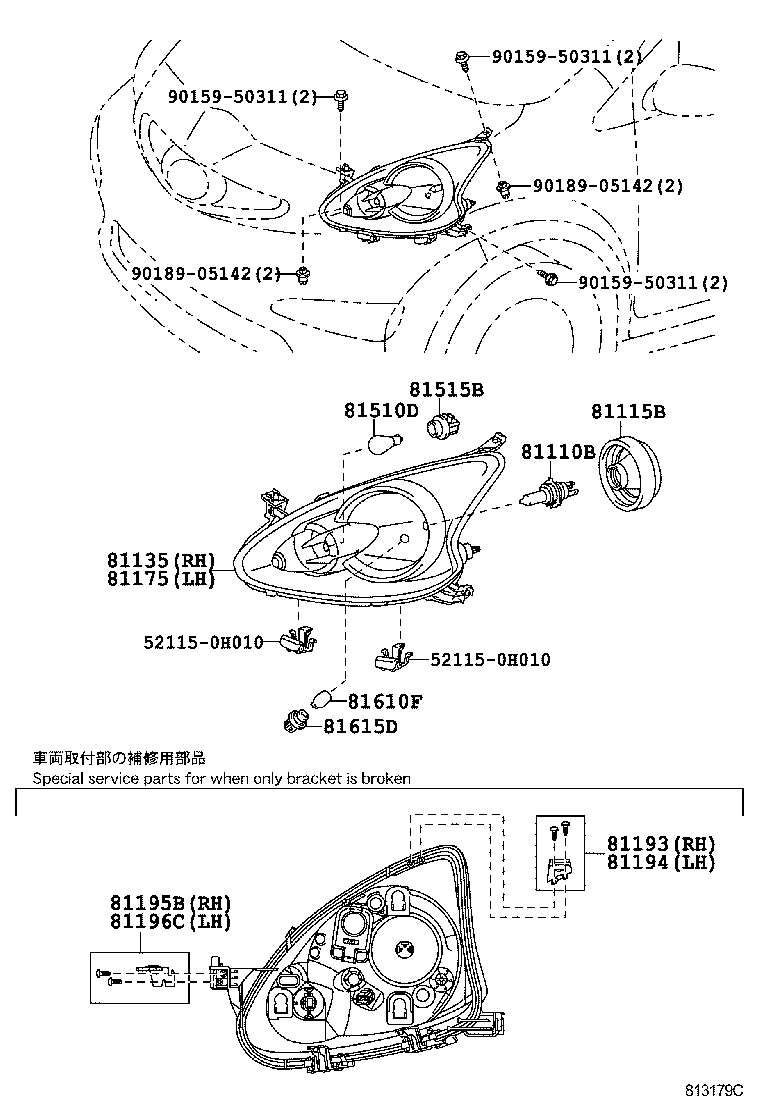

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81085 |
KGB10,WNB10 12V 55/60W |
2 | ||
| 90080-81085 |
WNB10 12V 55/60W |
2 | ||
| 81115B - SOCKET,HEADLAMP, NO.1 | ||||
| 81139-0D010 |
KGB10,WNB10 |
2 | ||
| 81139-0D010 |
WNB10 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0H020 |
KGB10,WNB10..RHD |
1 | ||
| 81130-0H020 |
WNB10..RHD |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0H020 |
WNB10..RHD |
1 | ||
| 81170-0H020 |
KGB10,WNB10..RHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-0H010 |
KGB10,WNB10 |
1 | ||
| 81193-0H010 |
WNB10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-0H010 |
KGB10,WNB10 |
1 | ||
| 81194-0H010 |
WNB10 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-0H010 |
KGB10,WNB10 |
1 | ||
| 81195-0H010 |
WNB10 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-0H010 |
KGB10,WNB10 |
1 | ||
| 81196-0H010 |
WNB10 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-WF003 |
KGB10,WNB10 12V 21W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90069-81082 |
KGB10,WNB10 |
2 | ||
| 90069-81082 |
WNB10 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-WB003 |
KGB10,WNB10 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 81275-02070 |
KGB10,WNB10 |
2 | ||
| 81275-02070 |
WNB10 |
2 | ||
| Common parts | ||||
| 52115-0H010 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
(0812- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81085 |
KGB10,WNB10 12V 55/60W |
2 | ||
| 90080-81085 |
WNB10 12V 55/60W |
2 | ||
| 81115B - SOCKET,HEADLAMP, NO.1 | ||||
| 81139-0D010 |
KGB10,WNB10 |
2 | ||
| 81139-0D010 |
WNB10 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-0H020 |
KGB10,WNB10..RHD |
1 | ||
| 81130-0H020 |
WNB10..RHD |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0H020 |
WNB10..RHD |
1 | ||
| 81170-0H020 |
KGB10,WNB10..RHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-0H010 |
KGB10,WNB10 |
1 | ||
| 81193-0H010 |
WNB10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-0H010 |
KGB10,WNB10 |
1 | ||
| 81194-0H010 |
WNB10 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-0H010 |
KGB10,WNB10 |
1 | ||
| 81195-0H010 |
WNB10 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-0H010 |
KGB10,WNB10 |
1 | ||
| 81196-0H010 |
WNB10 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-WF003 |
KGB10,WNB10 12V 21W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90069-81082 |
KGB10,WNB10 |
2 | ||
| 90069-81082 |
WNB10 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-WB003 |
KGB10,WNB10 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 81275-02070 |
KGB10,WNB10 |
2 | ||
| 81275-02070 |
WNB10 |
2 | ||
| Common parts | ||||
| 52115-0H030 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
