WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

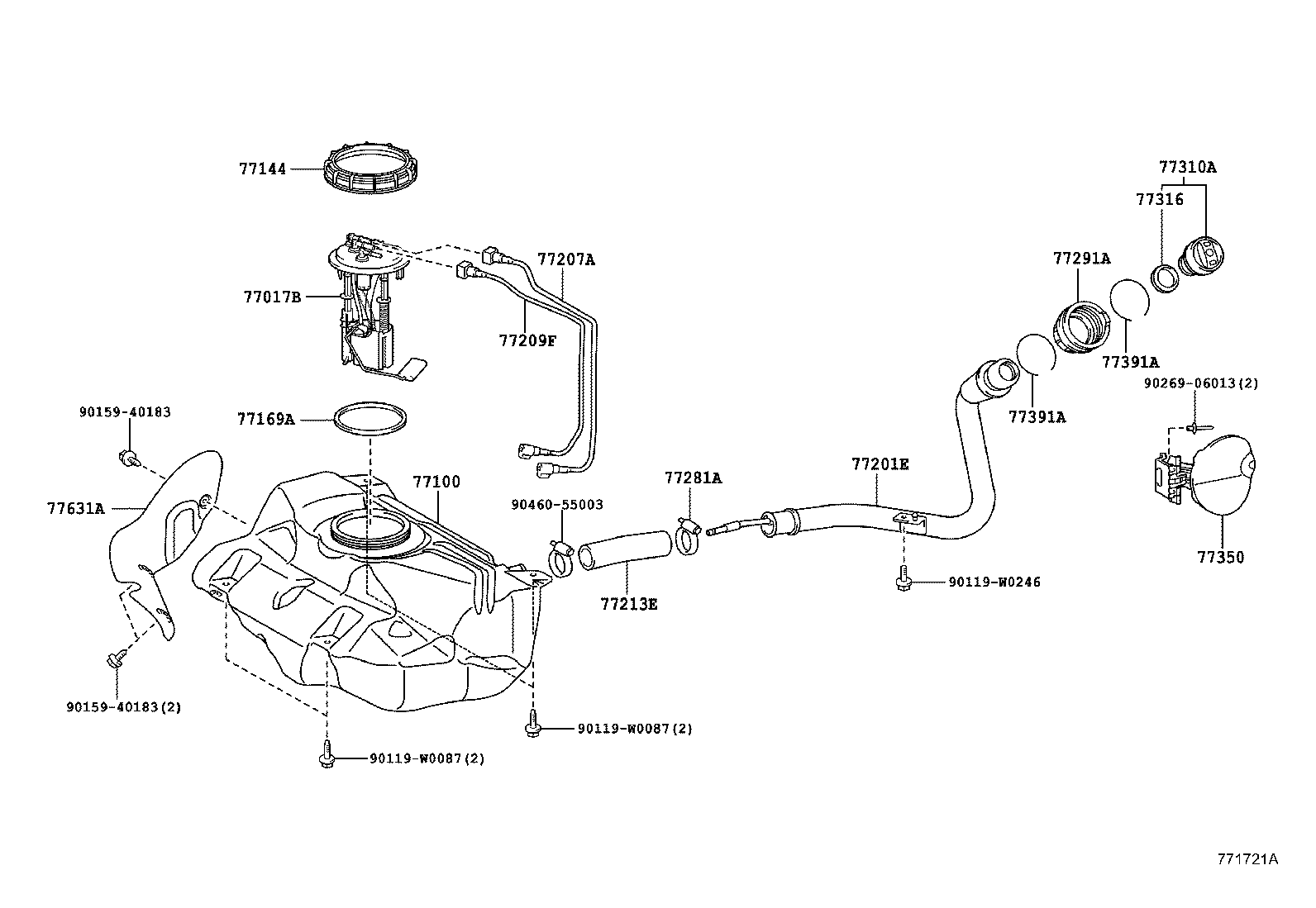

ILLUST NO. 1 OF 2(0505- )WNB10
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77010-YV010 |
WNB10 |
1 | ||
| 77010-YV010 |
WNB10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0H020 |
WNB10 |
1 | ||
| 77001-0H020 |
WNB10 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0H010 |
KGB10,WNB10 |
1 | ||
| 77144-0H010 |
WNB10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0H010 |
KGB10,WNB10 |
1 | ||
| 77169-0H010 |
WNB10 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-0H021 |
WNB10 |
1 | ||
| 77201-0H021 |
WNB10 |
1 | ||
| 77201-0H020 |
WNB10 |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0H030 |
WNB10 |
1 | ||
| 77204-0H030 |
WNB10 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0H020 |
WNB10 |
1 | ||
| 77209-0H020 |
WNB10 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0H010 |
KGB10,WNB10 |
1 | ||
| 77213-0H010 |
KGB10,WNB10 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-0H010 |
KGB10,WNB10 |
1 | ||
| 77281-0H010 |
WNB10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0H010 |
WNB10 |
1 | ||
| 77291-0H010 |
KGB10,WNB10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0H010 |
WNB10 |
1 | ||
| 77300-0H010 |
KGB10,WNB10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
KGB10,WNB10 |
1 | ||
| 77316-16010 |
WNB10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0H010 |
KGB10,WNB10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0H010 |
WNB10 |
2 | ||
| 77391-0H010 |
KGB10,WNB10 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0H010 |
WNB10 |
2 | ||
| 77391-0H010 |
KGB10,WNB10 |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-0H010 |
KGB10,WNB10 |
1 | ||
| 77631-0H010 |
WNB10 |
1 | ||
| Common parts | ||||
| 90119-W0087 | ||||
| 90119-W0246 | ||||
| 90159-40183 | ||||
| 90269-06013 | ||||
| 90460-55003 | ||||

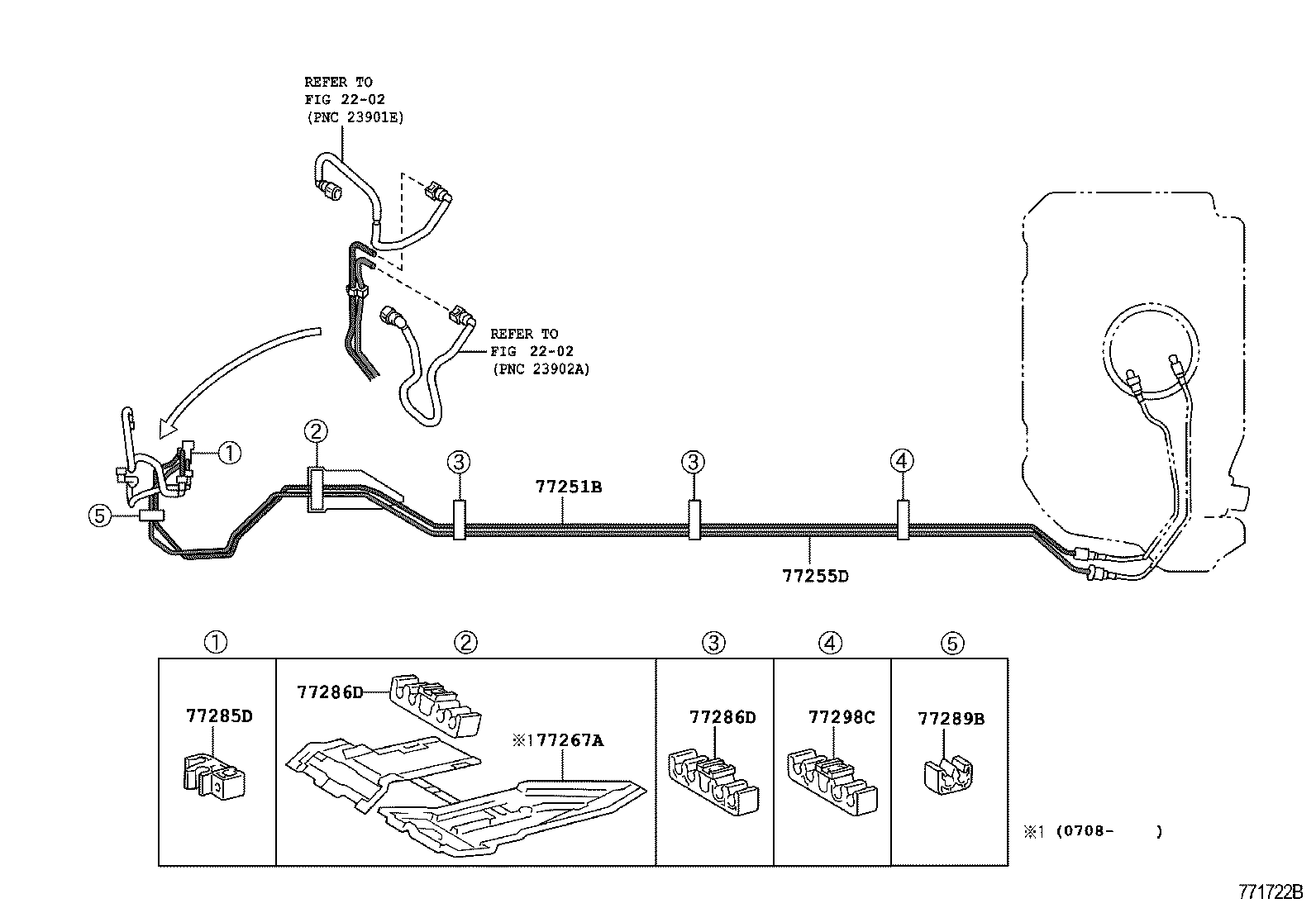

ILLUST NO. 2 OF 2(0505- )WNB10
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0H020 |
WNB10 |
1 | ||
| 77251-0H020 |
WNB10 |
1 | ||
| 77251-0H020 |
WNB10 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0H010 |
WNB10 |
1 | ||
| 77255-0H010 |
WNB10 |
1 | ||
| 77255-0H010 |
WNB10 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-0H010 |
KGB10,WNB10 |
1 | ||
| 77267-0H010 |
WNB10 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0H010 |
KGB10,WNB10 |
1 | ||
| 77285-0H010 |
WNB10 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0H010 |
WNB10 |
3 | ||
| 77286-0H010 |
WNB10 |
3 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0H010 |
WNB10 |
3 | ||
| 77286-0H010 |
WNB10 |
3 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0H020 |
WNB10 |
1 | ||
| 77289-0H010 |
KGB10,WNB10 |
1 | ||
| 77289-0H020 |
KGB10,WNB10 |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0H010 |
WNB10 |
1 | ||
| 77298-0H010 |
WNB10 |
1 | ||
| Linked diagrams | ||||
| 2202 | ||||
