WNB10R-AHMGXW (2005)
Toyota Aygo
Production
May 2005
-
Sep 2010
Engine
2WZTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0502- )

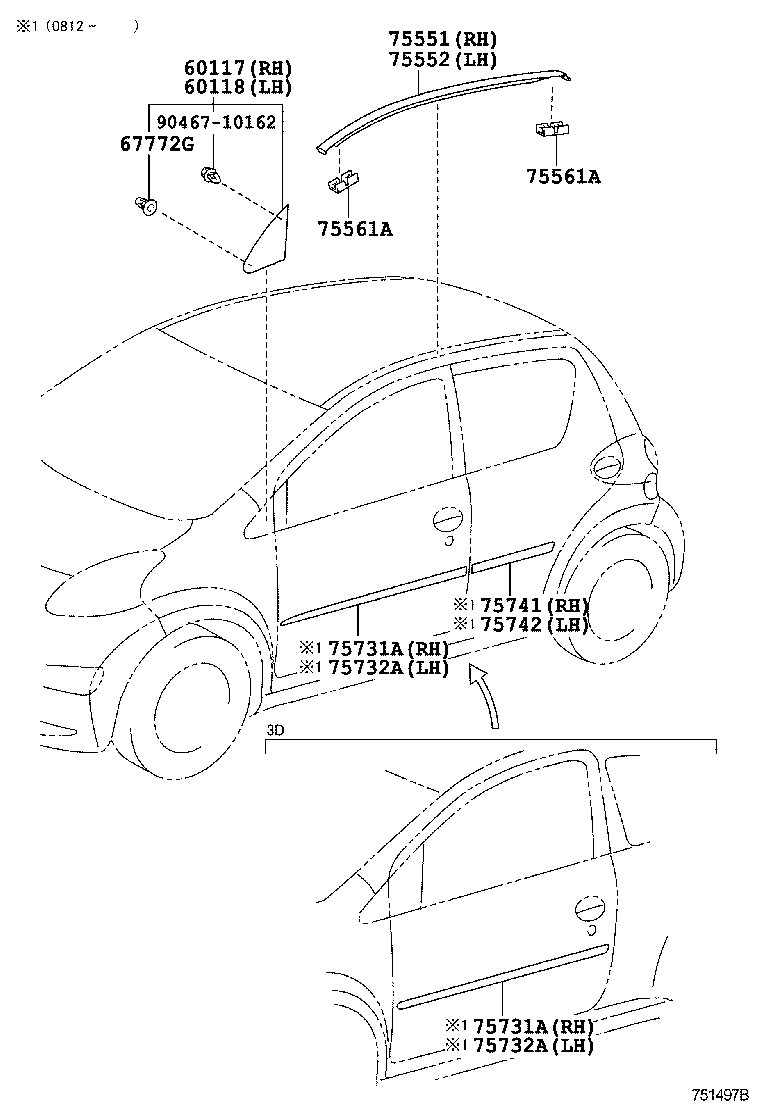

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-0H010 |
KGB10,WNB10 |
1 | ||
| 60117-0H010 |
WNB10 |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-0H010 |
KGB10,WNB10 |
1 | ||
| 60118-0H010 |
WNB10 |
1 | ||
| 67772G - CAP, FRONT PILLAR COVER | ||||
| 67772-95J03 |
WNB10 |
2 | ||
| 67772-95J03 |
KGB10,WNB10 |
2 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-0H010 |
KGB10,WNB10 NO PAINT REQ. |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-0H010 |
KGB10,WNB10 NO PAINT REQ. |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
KGB10,WNB10 |
4 | ||
| 75561-52020 |
WNB10 |
4 | ||
| 75561-52020 |
KGB10,WNB10 |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52020 |
KGB10,WNB10 |
4 | ||
| 75561-52020 |
WNB10 |
4 | ||
| 75561-52020 |
KGB10,WNB10 |
4 | ||
| Common parts | ||||
| 90467-10162 | ||||
