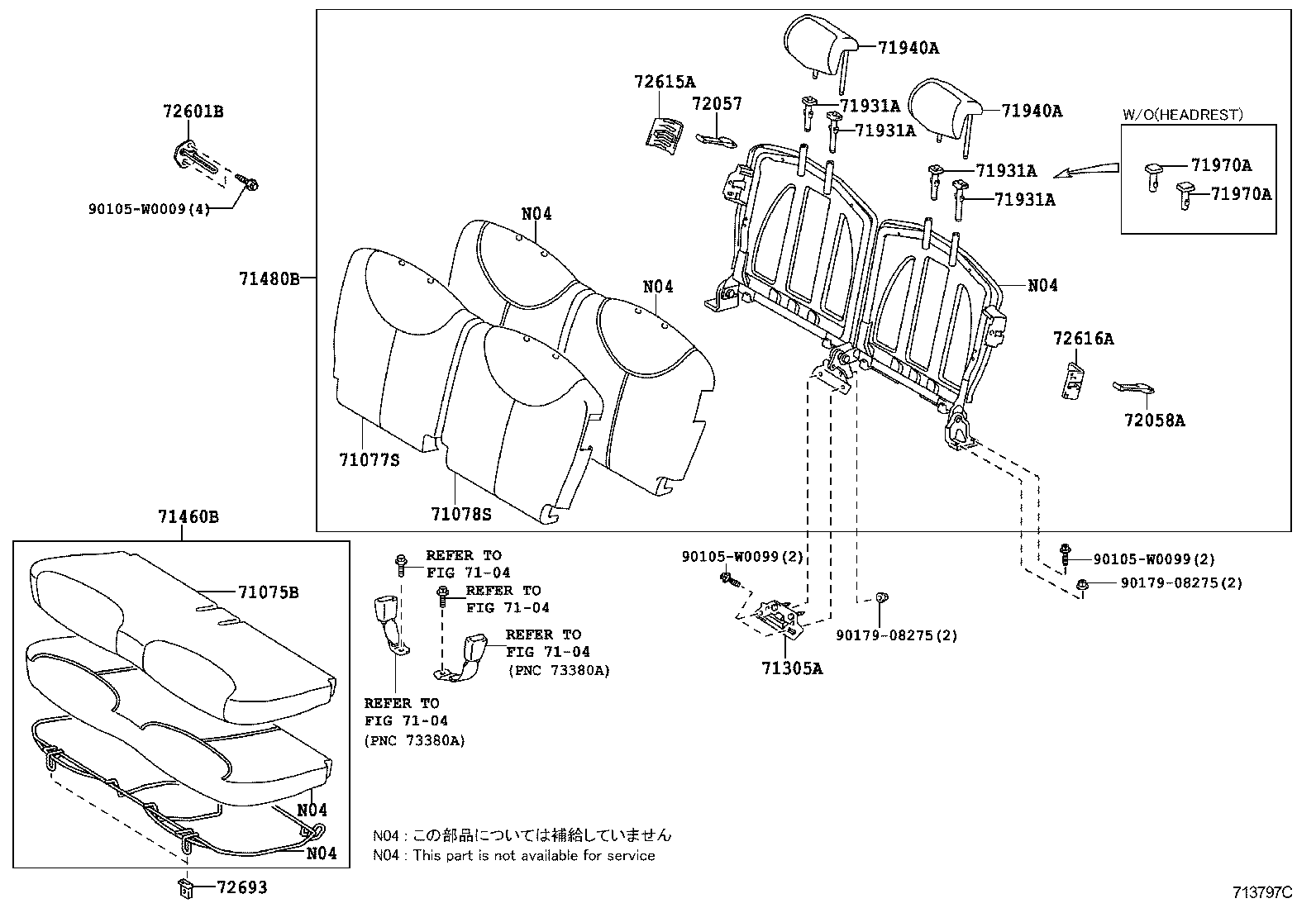

WNB10R-AHMGXW (2005)
Toyota Aygo
(0502- )
SEAT BACK = SPLIT TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-YV022B2 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-YV020E1 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71075-YV022B2 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM10 |
1 | ||
| 71075-YV020B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
1 | ||
| 71075-0H010B0 |
WNB10 DARK GRAY,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71075-YV021B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM1# |
1 | ||
| 71075-0H010B0 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71075-YV060B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71075-YV022E2 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-YV061B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM1# |
1 | ||
| 71077-YV062B2 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-YV062B3 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM10 |
1 | ||
| 71077-YV060E0 |
KGB10,WNB10..LV1 BEIGE/BEIGE,TRIM11 |
1 | ||
| 71077-YV062B3 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-YV060B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
1 | ||
| 71077-0H040C0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71077-0H011B0 |
KGB10,WNB10..LV1 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71077-YV020B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71077-0H010B0 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71077-YV062E2 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-YV020E0 |
KGB10,WNB10..LV1 BEIGE/BEIGE,TRIM11 |
1 | ||
| 71078-YV020B4 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
1 | ||
| 71078-YV022B5 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-YV022E3 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71078-YV021B4 |
KGB10,WNB10..LV1 DARK GREY,TRIM1# |
1 | ||
| 71078-YV022B6 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-YV050B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71078-YV022B6 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM10 |
1 | ||
| 71078-0H040C0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71078-0H010B0 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71078-0H011B0 |
KGB10,WNB10..LV1 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71035-YV010 |
WNB10 |
1 | ||
| 71035-YV010 |
KGB10,WNB10..LV1 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-YV021B0 |
KGB10,WNB10..LV1 DK.GRAY,TRIM10 |
1 | ||
| 71460-YV022B0 |
KGB10,WNB10..LV1 DK.GRAY,TRIM10 |
1 | ||
| 71460-YV060B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,DK.GRAY,TRIM1# |
1 | ||
| 71460-YV022B0 |
KGB10,WNB10..LV1 DK.GRAY,TRIM1# |
1 | ||
| 71460-YV022B1 |
KGB10,WNB10..LV1 DK.GRAY/BEIGE,TRIM11 |
1 | ||
| 71460-YV020B2 |
KGB10,WNB10..LV1 DK.GREY,TRIM10 |
1 | ||
| 71460-YV020B3 |
KGB10,WNB10..LV1 DK.GREY/BEIGE(TMC),TRIM11 |
1 | ||
| 71460-YV021B1 |
KGB10,WNB10..LV1 DK.GRAY/BEIGE,TRIM11 |
1 | ||
| 71460-0H010C0 |
WNB10 DK.GRAY/RED,TRIM2# |
1 | ||
| 71460-0H010B0 |
WNB10 DK.GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-YV060B4 |
KGB10,WNB10..LV1 BEIGE/BEIGE,TRIM11 |
1 | ||
| 71480-YV060B3 |
KGB10,WNB10..LV1 DARK GREY/DARK GREY,TRIM10 |
1 | ||
| 71480-YV062B0 |
KGB10,WNB10..LV1 DK.GRAY,TRIM10 |
1 | ||
| 71480-YV061B1 |
KGB10,WNB10..LV1 DK.GRAY/BEIGE,TRIM11 |
1 | ||
| 71480-YV061B0 |
KGB10,WNB10..LV1 DK.GRAY,TRIM10 |
1 | ||
| 71480-YV062B1 |
KGB10,WNB10..LV1 DK.GRAY/BEIGE,TRIM11 |
1 | ||
| 71480-YV062B3 |
KGB10,WNB10..LV1 DK.GREY/BEIGE,TRIM11 |
1 | ||
| 71480-YV100B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,DK.GRAY,TRIM1# |
1 | ||
| 71480-0H010C0 |
WNB10 DK.GRAY/RED,TRIM2# |
1 | ||
| 71480-YV062B2 |
KGB10,WNB10..LV1 DK.GREY,TRIM1# |
1 | ||
| 71480-YV062B2 |
KGB10,WNB10..LV1 DK.GREY,TRIM10 |
1 | ||
| 71480-0H010B2 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-YV010 |
KGB10,WNB10..LV1 W/O(LOCK) |
2 | ||
| 71970-YV010 |
KGB10,WNB10..LV1 W(LOCK) |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-YV010 |
KGB10,WNB10..LV1 W/O(LOCK) |
2 | ||
| 71970-YV010 |
KGB10,WNB10..LV1 W(LOCK) |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-YV010 |
KGB10,WNB10..LV1 W/O(LOCK) |
2 | ||
| 71970-YV010 |
KGB10,WNB10..LV1 W(LOCK) |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-YV010 |
KGB10,WNB10..LV1 W/O(LOCK) |
2 | ||
| 71970-YV010 |
KGB10,WNB10..LV1 W(LOCK) |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-YV050B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
2 | ||
| 71940-YV010B5 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
2 | ||
| 71940-YV010E1 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-YV050B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
2 | ||
| 71940-YV010B5 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
2 | ||
| 71940-YV010E1 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
2 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
1 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72057-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-0H010 |
KGB10,WNB10 |
2 | ||
| 72601-0H011 |
WNB10 |
2 | ||
| 72601-0H011 |
KGB10,WNB10 |
2 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-YV010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72616-YV010B0 |
KGB10,WNB10 DARK GREY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-YV010 |
WNB10 |
2 | ||
| 72693-YV010 |
KGB10,WNB10 |
2 | ||
| Common parts | ||||
| 90105-W0009 | ||||
| 90105-W0099 | ||||
| 90179-08275 | ||||
| Linked diagrams | ||||
| 7104 | ||||
