WNB10R-AHMGXW (2005)
Toyota Aygo
(0502- )

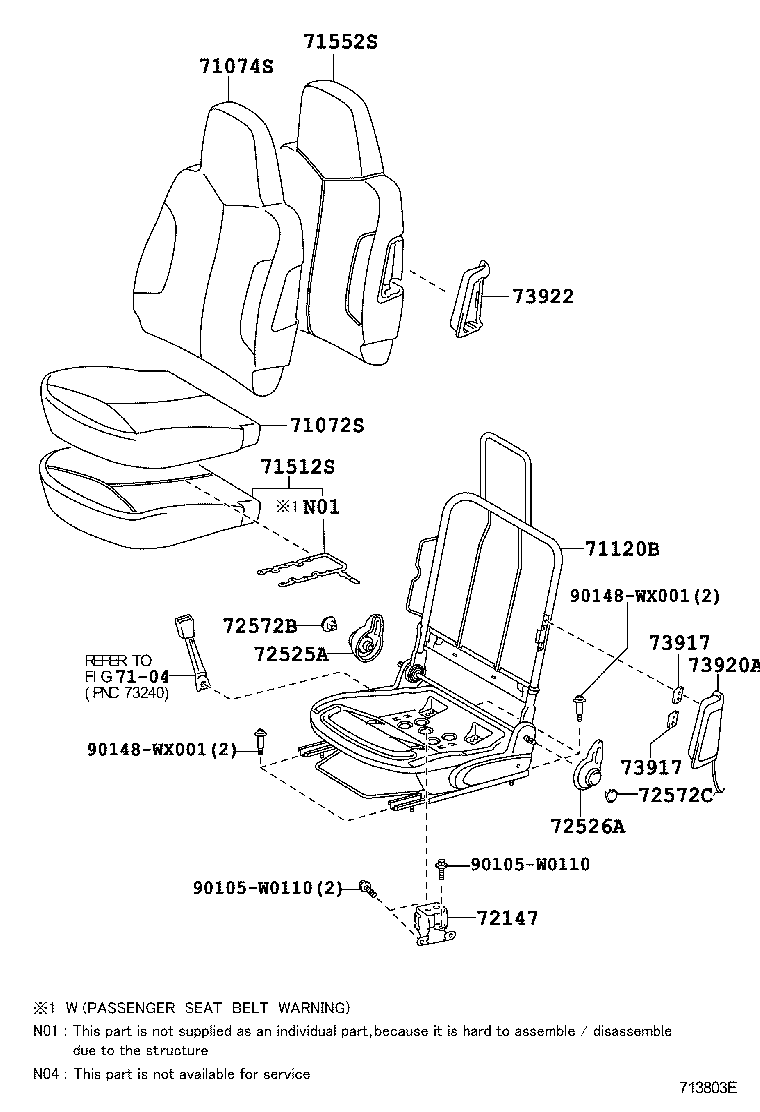

LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-YV020B2 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
1 | ||
| 71071-YV021B2 |
KGB10,WNB10..LV1 DARK GREY,TRIM1# |
1 | ||
| 71071-YV020E2 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71071-YV022B3 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM10 |
1 | ||
| 71071-YV022B3 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-YV050B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71071-0H040C0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71071-YV022E3 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71071-0H010B0 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71071-0H010B0 |
WNB10 DARK GRAY,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-YV021B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM1# |
1 | ||
| 71074-YV020B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
1 | ||
| 71074-YV020E1 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71074-YV022E2 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71074-0H040C0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71074-YV022B2 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM10 |
1 | ||
| 71074-YV050B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71074-0H010B0 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71074-YV022B2 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-0H011B0 |
KGB10,WNB10..LV1 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-YV050B0 |
KGB10,WNB10..5D..LV1 MEDIUM GREY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-YV010 |
KGB10,WNB10 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-YV010 |
KGB10,WNB10..LV1 |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-0H010 |
WNB10 |
1 | ||
| 72147-0H010 |
KGB10,WNB10 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-YV020B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 73917 - HOOK, SEAT AIR BAG | ||||
| 73917-YV010 |
KGB10,WNB10..LV1 |
4 | ||
| 73917 - HOOK, SEAT AIR BAG | ||||
| 73917-YV010 |
KGB10,WNB10..LV1 |
4 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-YV010B0 |
KGB10,WNB10..LV1 MEDIUM GREY,TRIM1# |
1 | ||
| 73922 - CASE, SEAT AIR BAG, LH | ||||
| 73922-YV010 |
KGB10,WNB10..LV1 |
1 | ||
| Common parts | ||||
| 90105-W0110 | ||||
| 90148-WX001 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0502- )

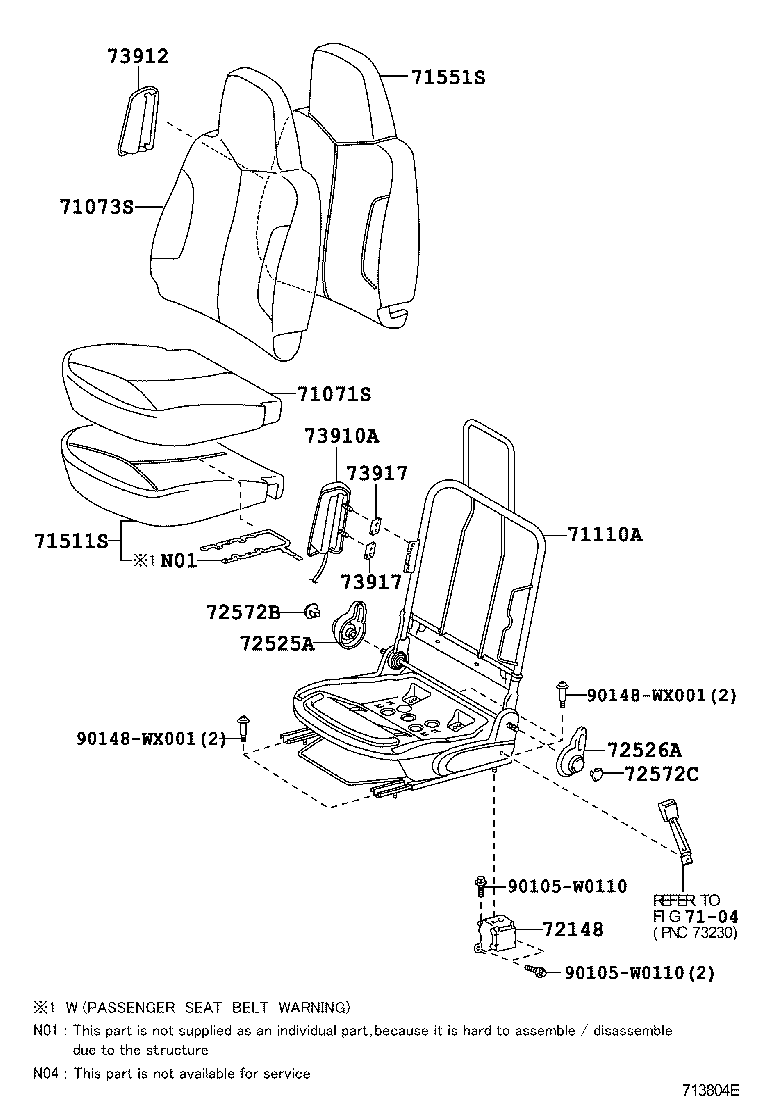

RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-YV020B2 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
1 | ||
| 71071-YV022E3 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71071-YV022B3 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM10 |
1 | ||
| 71071-YV021B2 |
KGB10,WNB10..LV1 DARK GREY,TRIM1# |
1 | ||
| 71071-YV020E2 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71071-YV022B3 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-0H010B0 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71071-0H010B0 |
WNB10 DARK GRAY,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71071-YV050B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71071-0H040C0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-YV060B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM10 |
1 | ||
| 71073-YV061B1 |
KGB10,WNB10..LV1 DARK GREY,TRIM1# |
1 | ||
| 71073-YV060E1 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71073-0H070C0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71073-0H030B0 |
WNB10 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71073-YV062B2 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-YV120B0 |
KGB10,WNB10..LV1 SEAT COVER MATERIAL-FABRIC ALCANTARA,BLACK,TRIM1# |
1 | ||
| 71073-YV062B2 |
KGB10,WNB10..LV1 MEDIUM GRAY,TRIM10 |
1 | ||
| 71073-0H031B0 |
KGB10,WNB10..LV1 DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7 |
1 | ||
| 71073-YV062E2 |
KGB10,WNB10..LV1 BEIGE,TRIM11 |
1 | ||
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-YV030B0 |
KGB10,WNB10..5D..LV1 MEDIUM GREY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-YV010 |
KGB10,WNB10 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-YV020 |
KGB10,WNB10..LV1 |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-0H010 |
WNB10 |
1 | ||
| 72148-0H010 |
KGB10,WNB10 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-YV020B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-YV010B0 |
KGB10,WNB10 MEDIUM GREY,TRIM1# |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-YV010B0 |
KGB10,WNB10..LV1 MEDIUM GREY,TRIM1# |
1 | ||
| 73912 - CASE, SEAT AIR BAG, RH | ||||
| 73912-YV010 |
KGB10,WNB10..LV1 |
1 | ||
| 73917 - HOOK, SEAT AIR BAG | ||||
| 73917-YV010 |
KGB10,WNB10..LV1 |
4 | ||
| 73917 - HOOK, SEAT AIR BAG | ||||
| 73917-YV010 |
KGB10,WNB10..LV1 |
4 | ||
| Common parts | ||||
| 90105-W0110 | ||||
| 90148-WX001 | ||||
| Linked diagrams | ||||
| 7104 | ||||
